Maximise the lifespan of your undercarriage
Careful undercarriage care on tracked machines can significantly reduce operating costs per machine hour. We have powerful presses and other necessary equipment for chain repairs, so you get all the required undercarriage care services at pre-agreed, competitive prices.
Oil-lubricated bulldozer chains

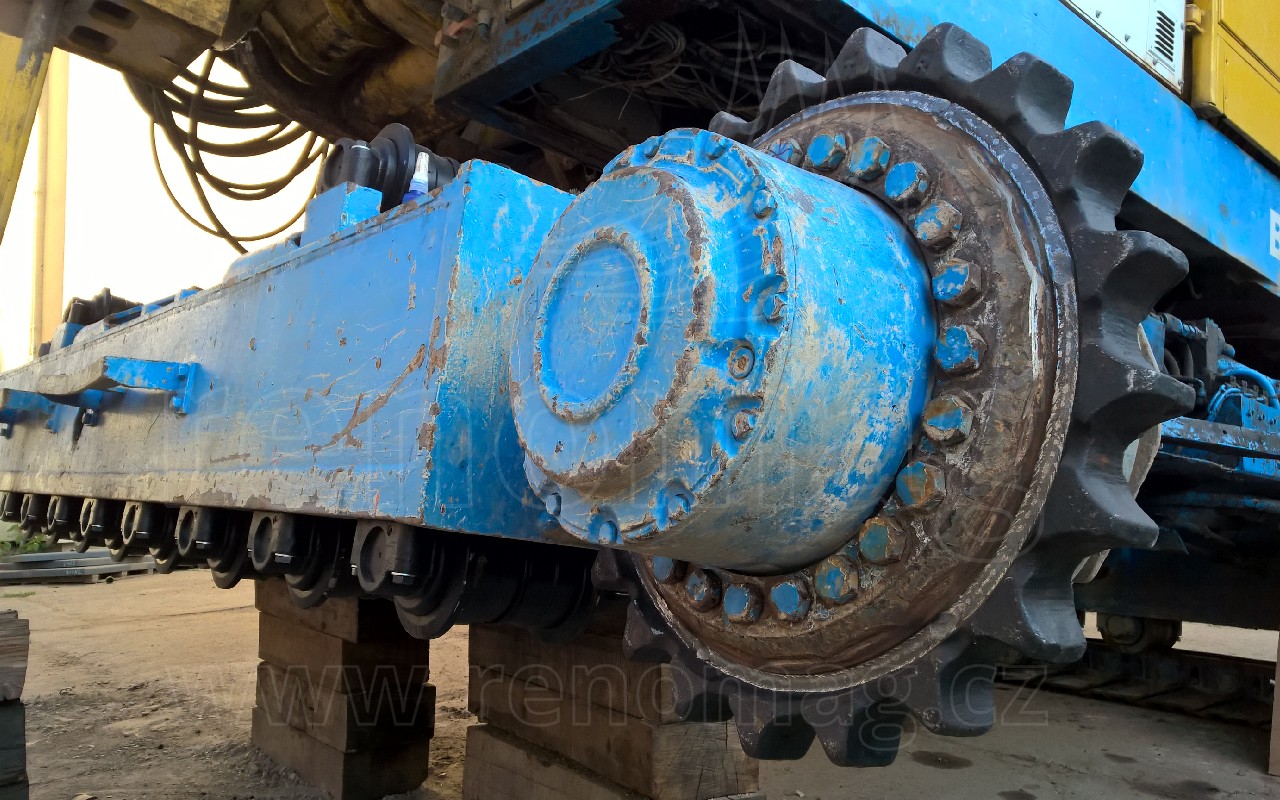

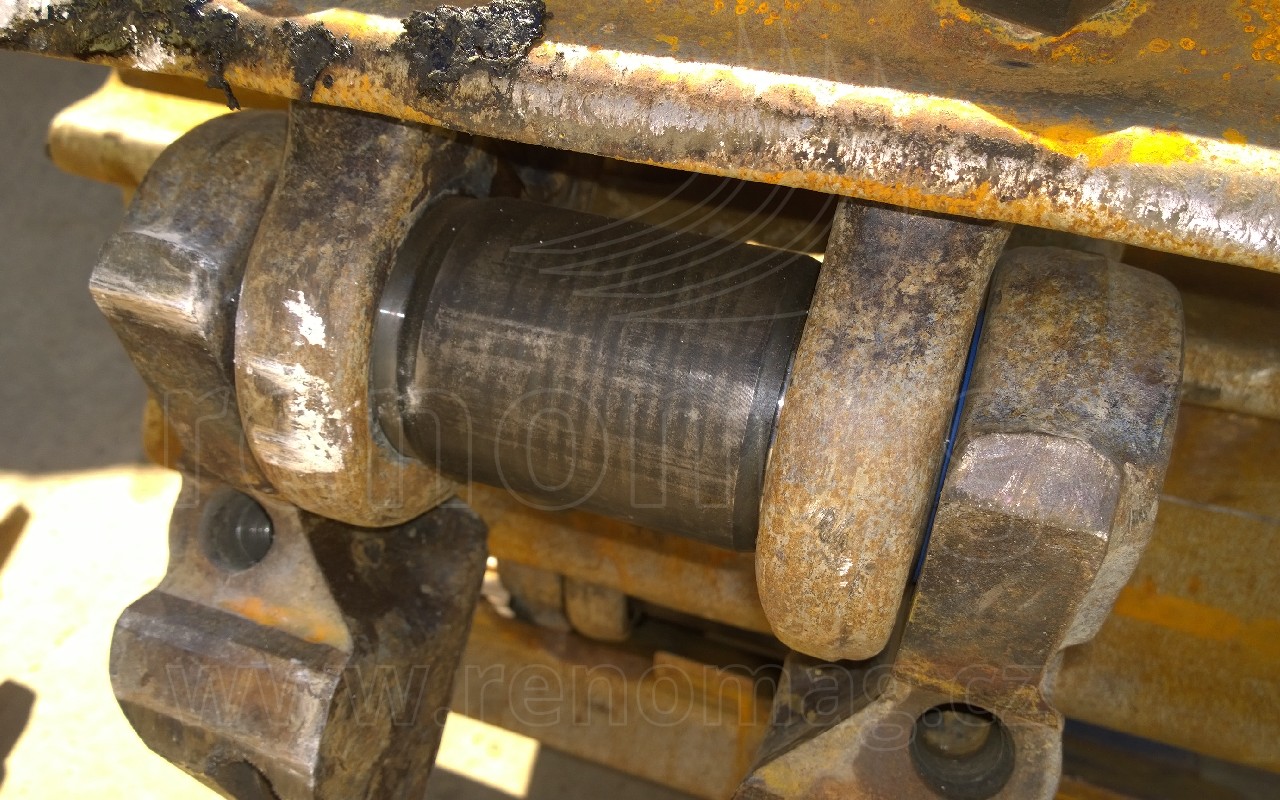

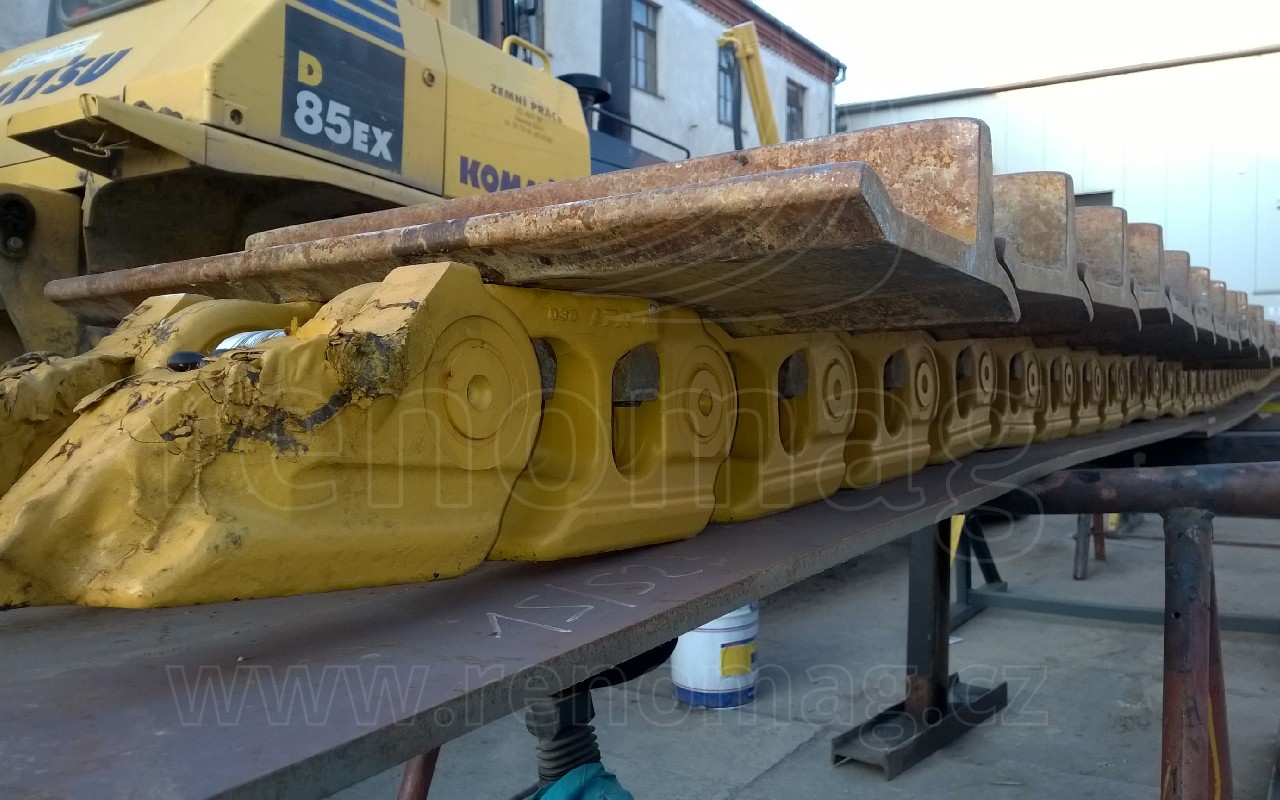

Turning the bushings with re-sealing and topping up the oil charge, if carried out in time, allows the chain to be restored to the condition in which it was manufactured. The other undercarriage parts usually still have up to 50% of their service life remaining at the point when the chain bushings reach their wear limit (depending on operating conditions). Turning the chain bushings prevents premature wear-through of the bushing walls, pin damage and pitch increase (stretching), which would otherwise destroy the drive sprockets and prematurely end the usability of the entire undercarriage.
Turning the bushings of oil-lubricated chains includes:
- removing the shoes, disassembling the chain
- thorough cleaning of all components, replacement of excessively worn parts
- turning the pins and turning the bushings by 180°, fitting a new seal
- re-pressing, tightness check, topping up the oil, refitting the shoes
This service intervention is most effective on oil-lubricated chains when carried out in time, according to the wear values specified by the chain manufacturer. If the machine cannot be taken out of service when these wear values are reached, it is sometimes economically advantageous to turn the bushings "dry", without re-sealing. In the case of timely diagnosis of an oil leak, replacing the seal and topping up the oil can also extend the life of chains with rotating bushings.
Non-lubricated bulldozer and excavator chains
In some cases it is economically advantageous to turn the pins and bushings, including replacing the sealing elements, even on non-lubricated or grease-lubricated chains, which mainly concerns chains for large machines.

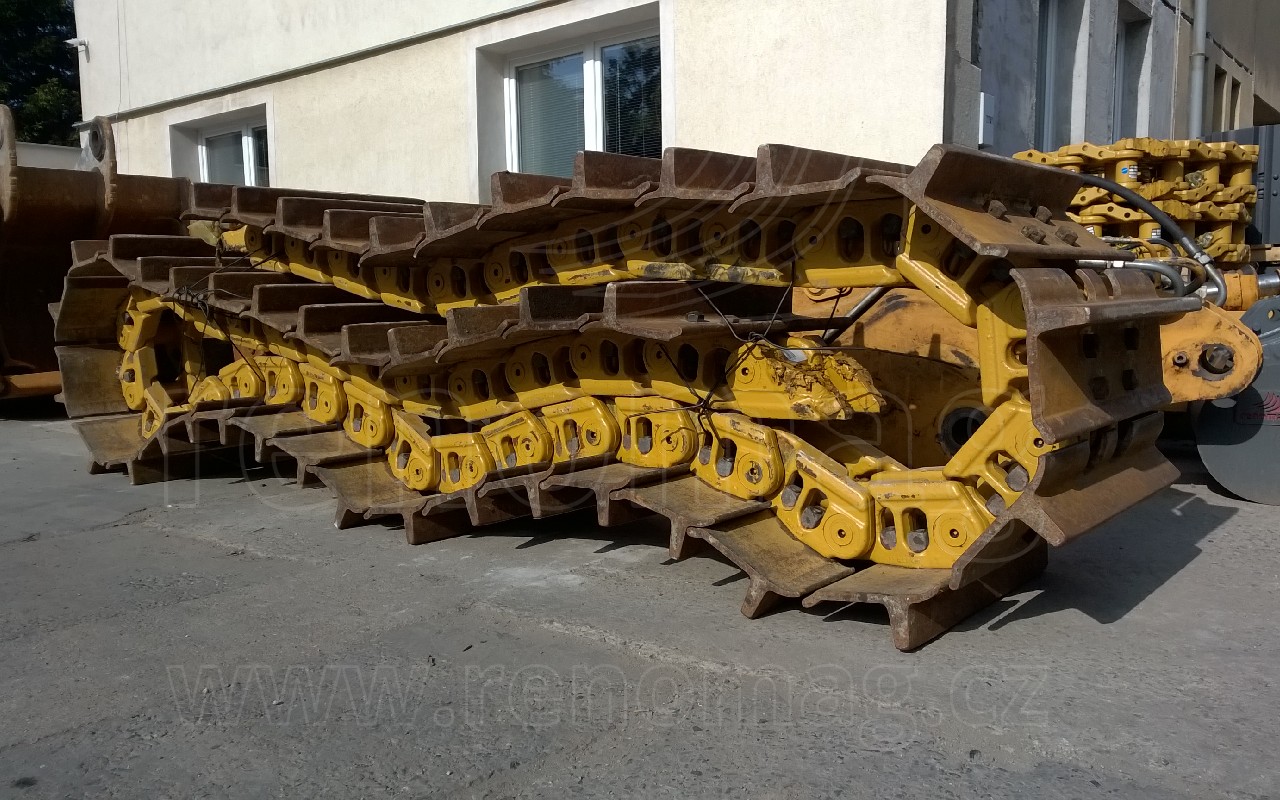

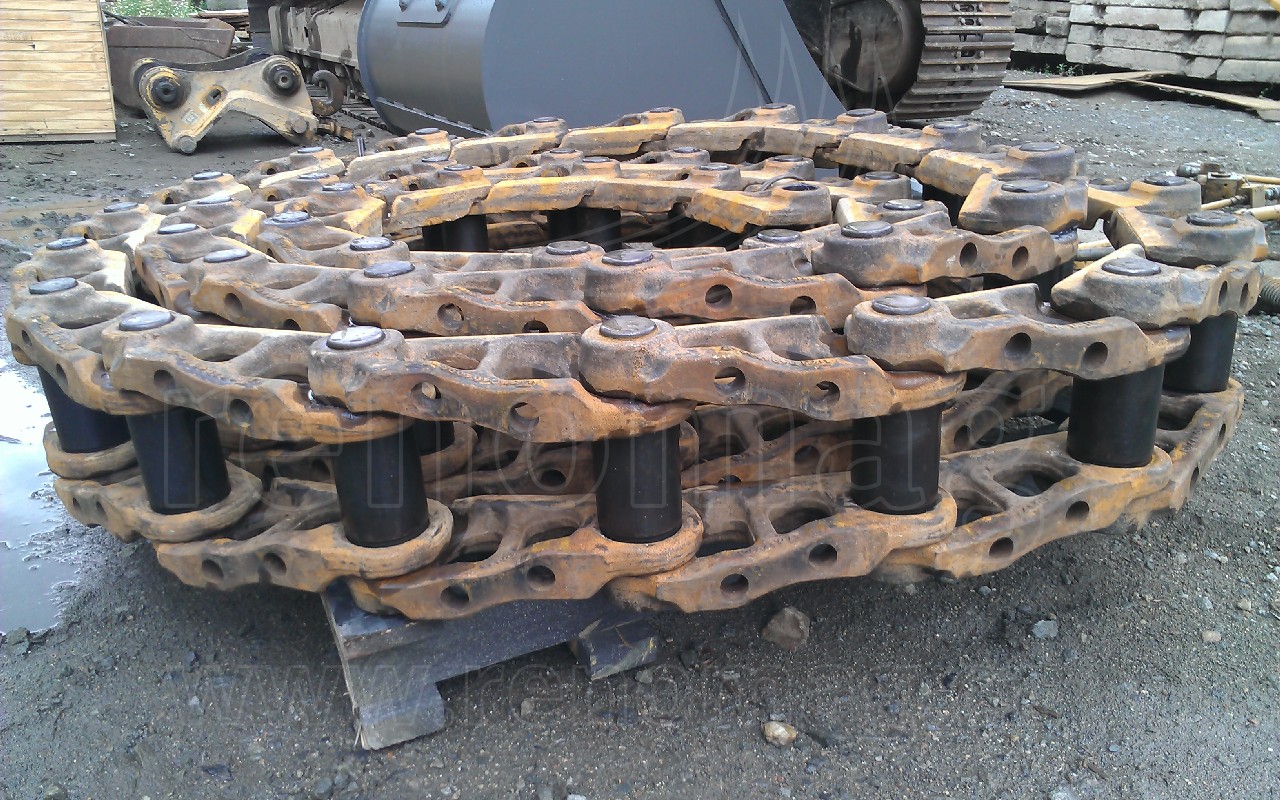

Chain renovation

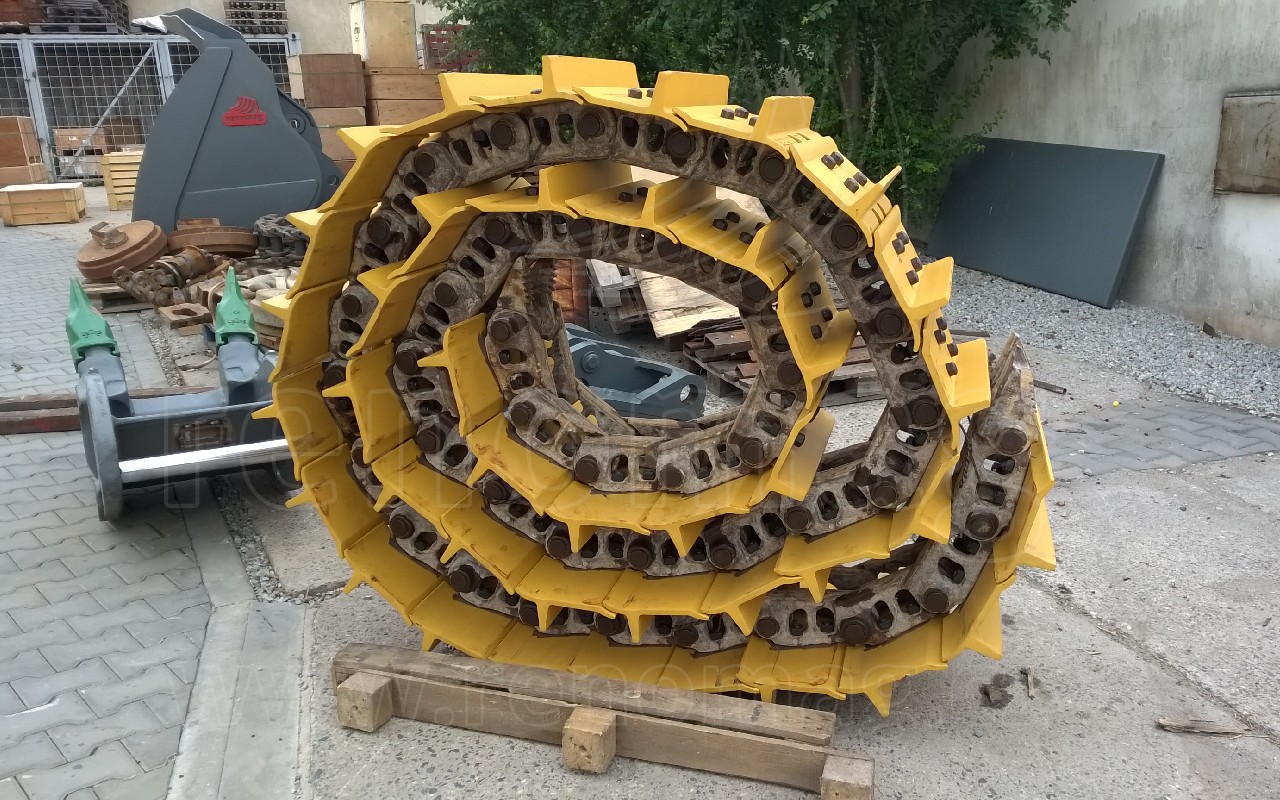

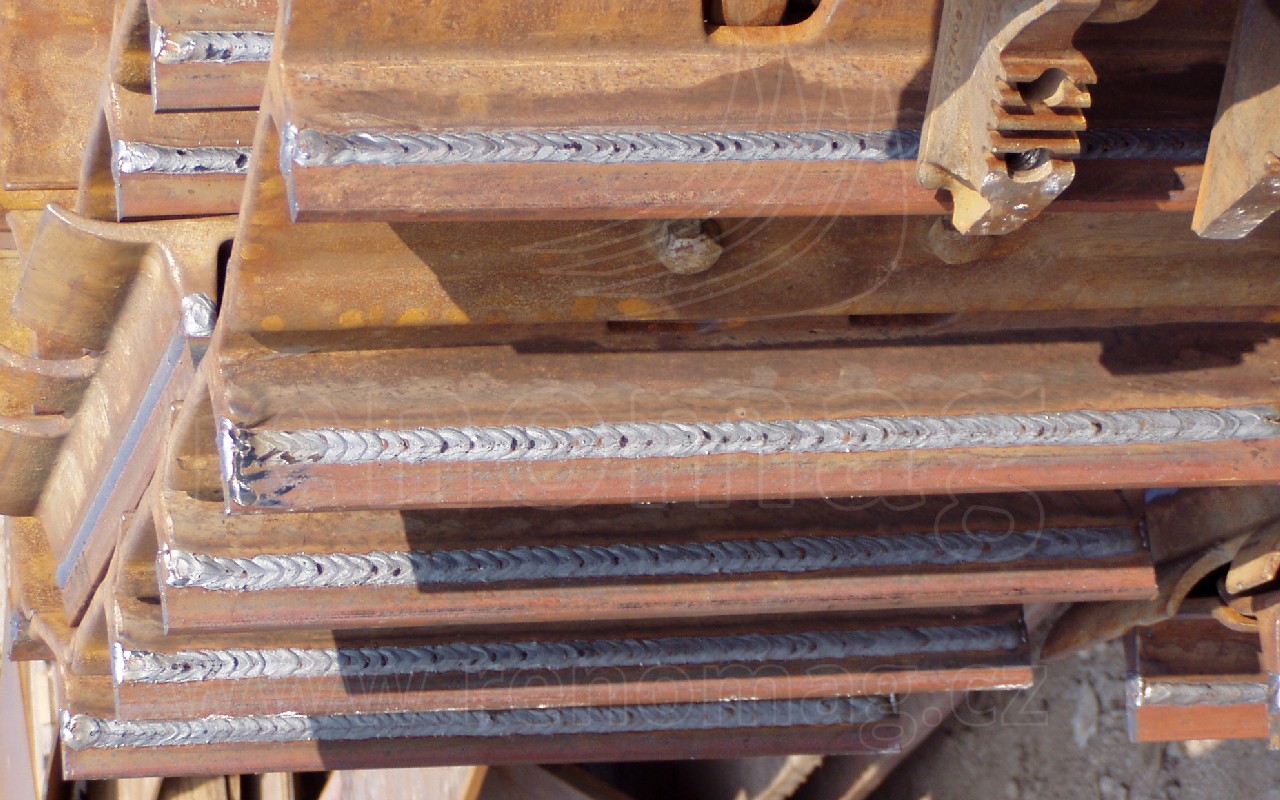

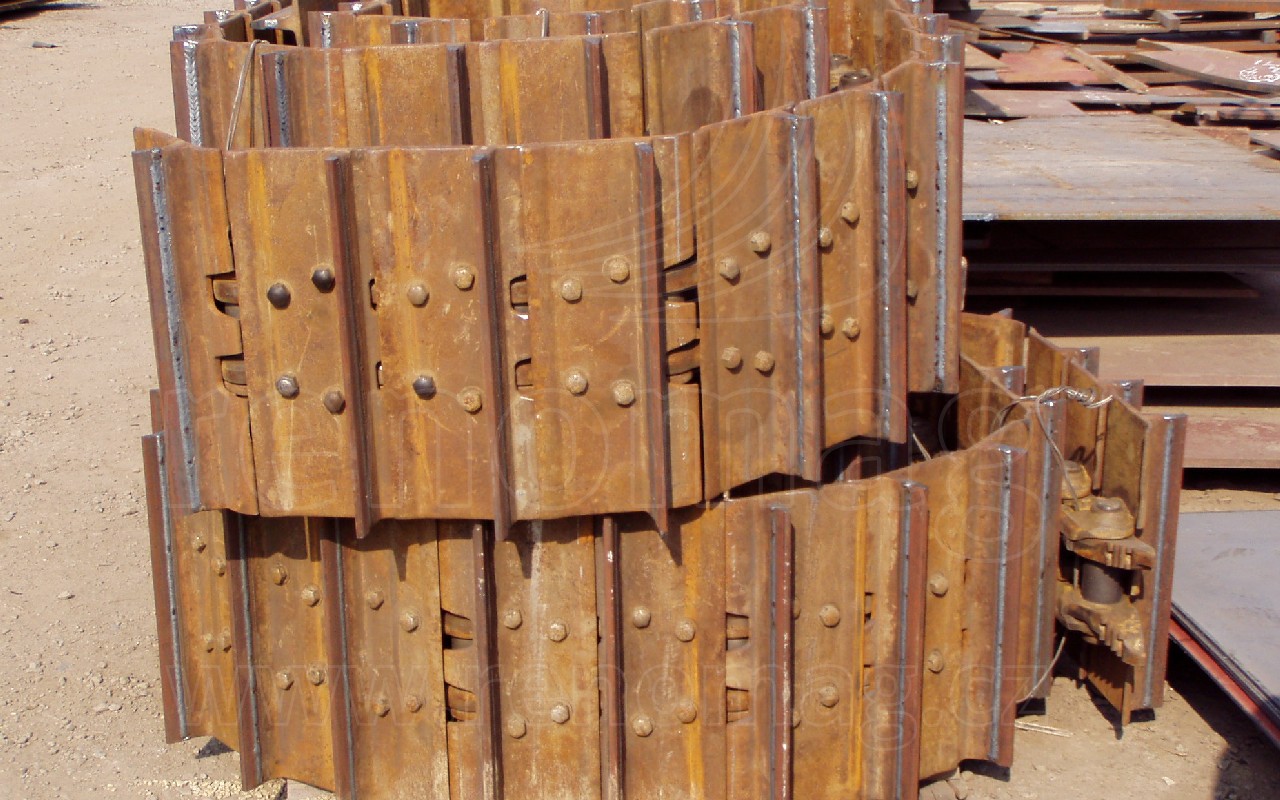

When working in specific conditions, the chain bushings can become fully worn at a point when the link height is worn to only 10-15% of its service life. For these chains it can be economically advantageous to carry out a renovation by replacing all pins and bushings. The cost of such a renovation of one pair of chains is usually around the price of one completely new chain. We also renovate track shoes by welding on a wear-resistant profile with a hardness of 500 HB, which we also supply by the metre (cut to length and quantity as required by the customer).

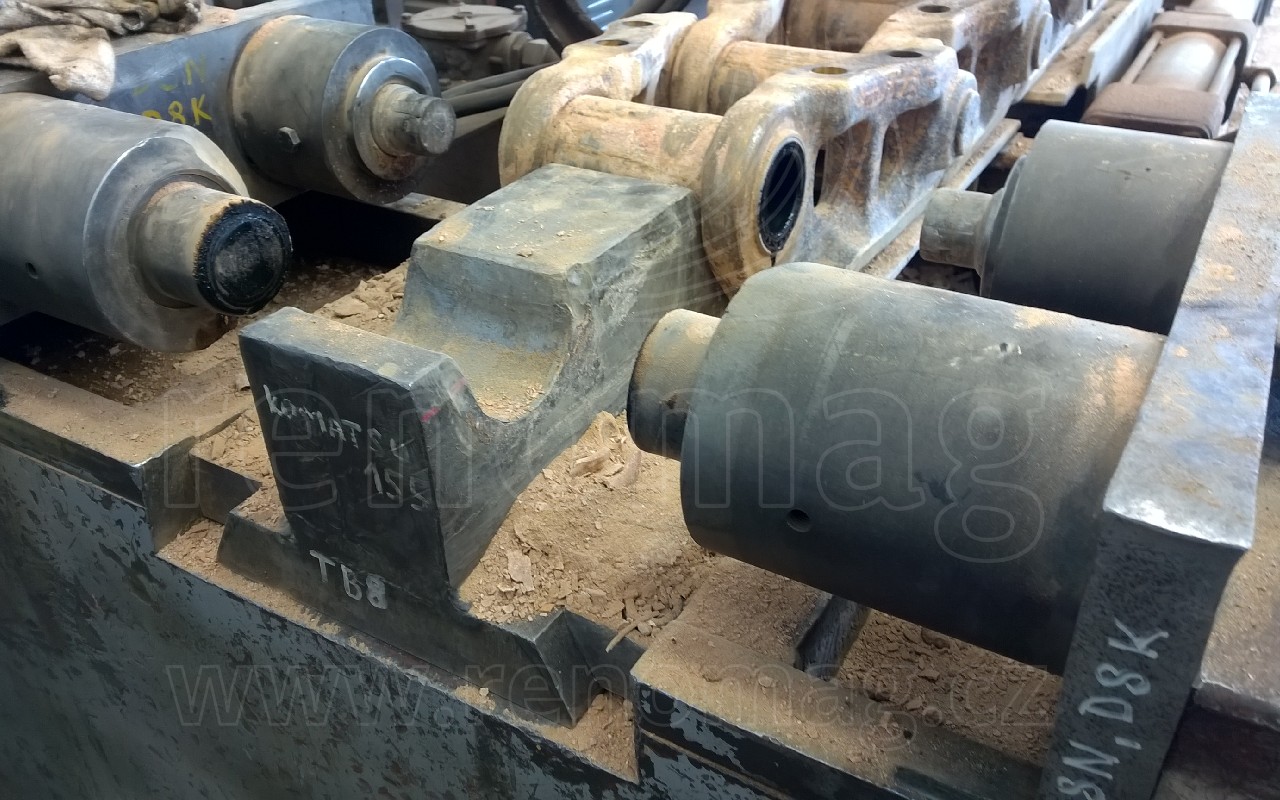

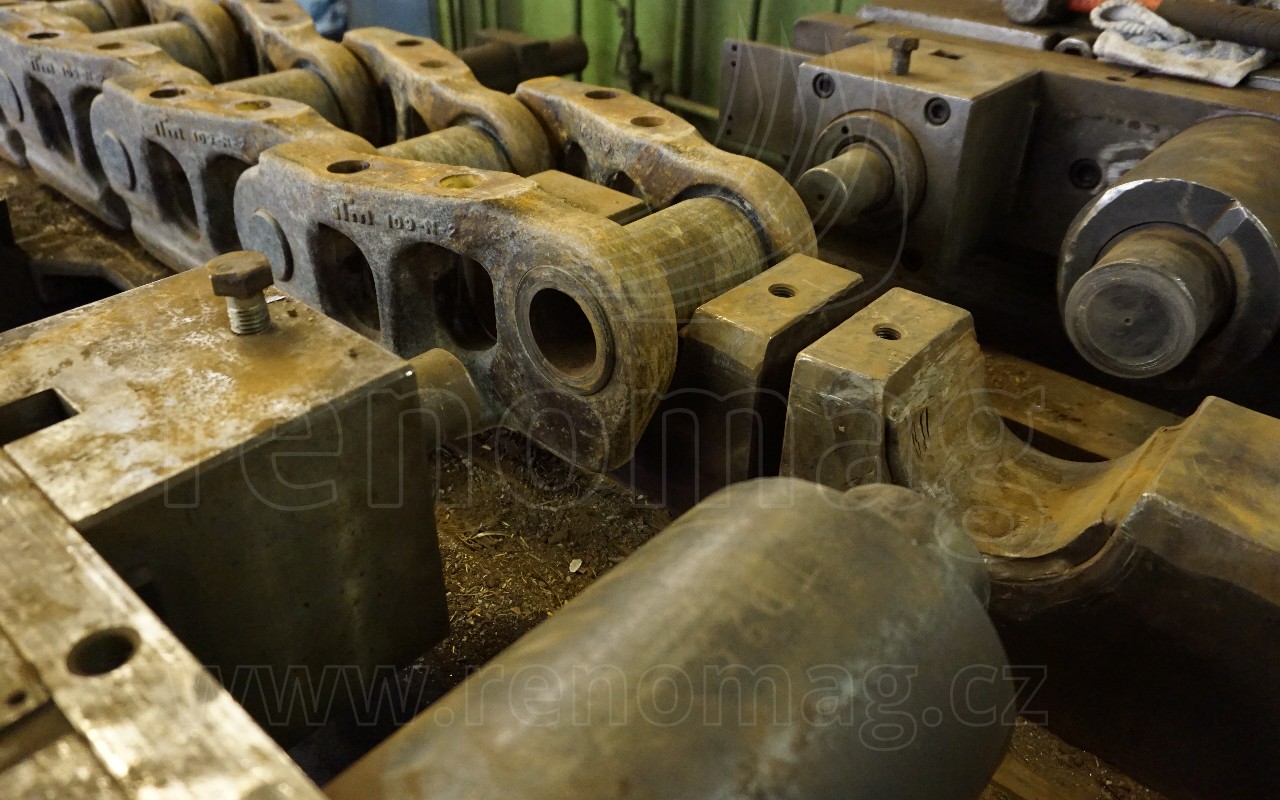

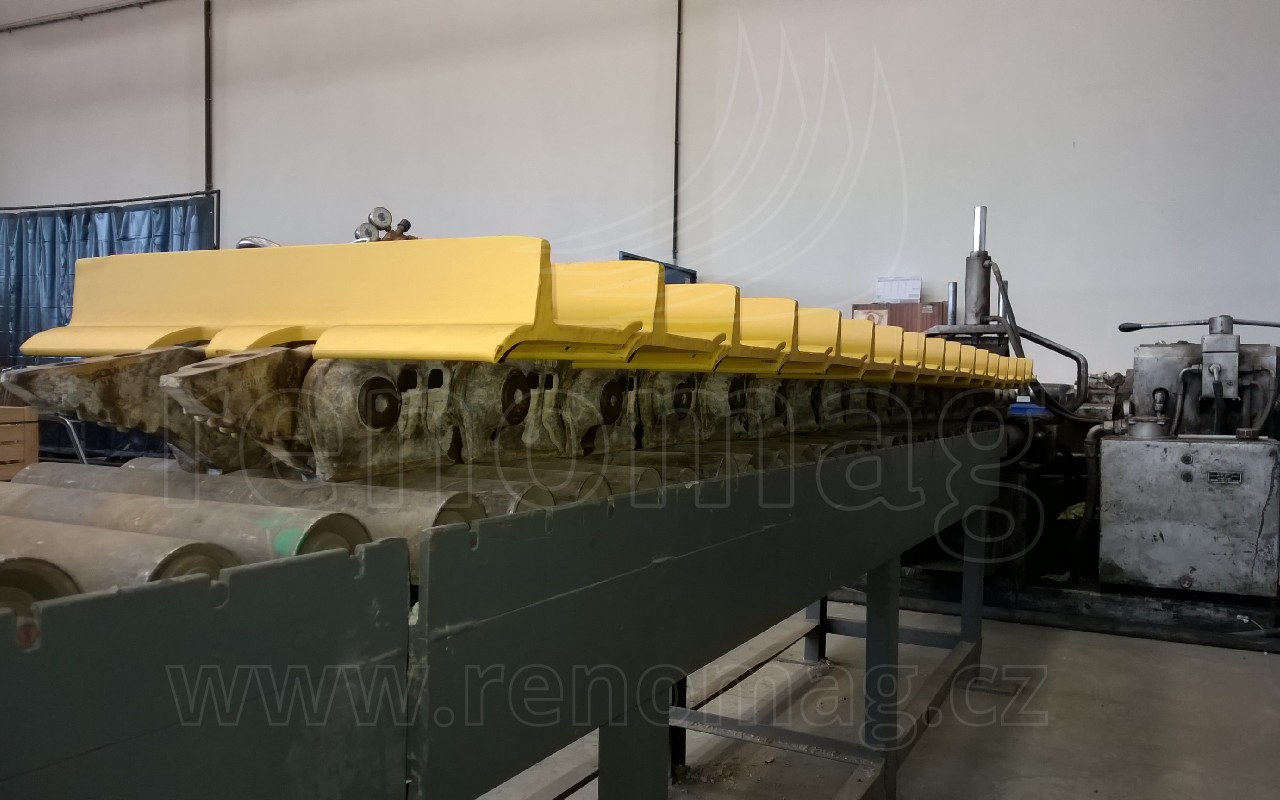

180 t press
On this press we carry out bushing turning, renovation and repair of chains up to a maximum size of B8 (e.g. chains for Caterpillar® D3, D4C, D4D, D4H, 943, D5D, D5C, D5H, D5M, 953, 955, 977, D6D, D6C, D6H, D6H XR, D6R, 963, D7C, D7D, D7H, D7R, 973, 977, D8H, D8L, D8N, 983, 325, 320, 312 Komatsu® D31, D31, D40, D41, D60, D65EX, D75, D80, D95, D120, D150, D155A, D155 AX, Liebherr® PR711, LR611, PR721, PR722, PR731, LR621, PR732, LR631, PR741, LR641, PR751, RL451, Hanomag® D500E, D540E, D580E, D600D, D600D Super, L600D, D700 and chains for various excavators).

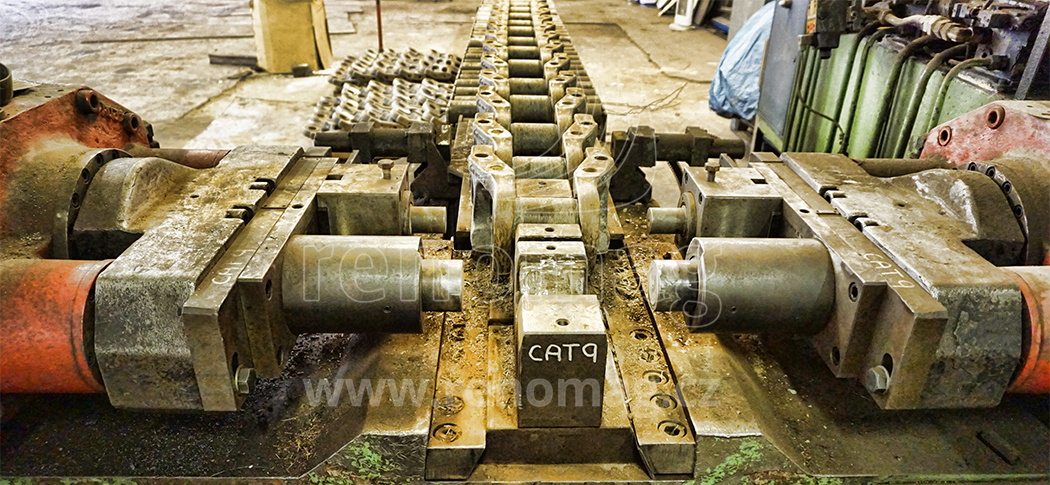

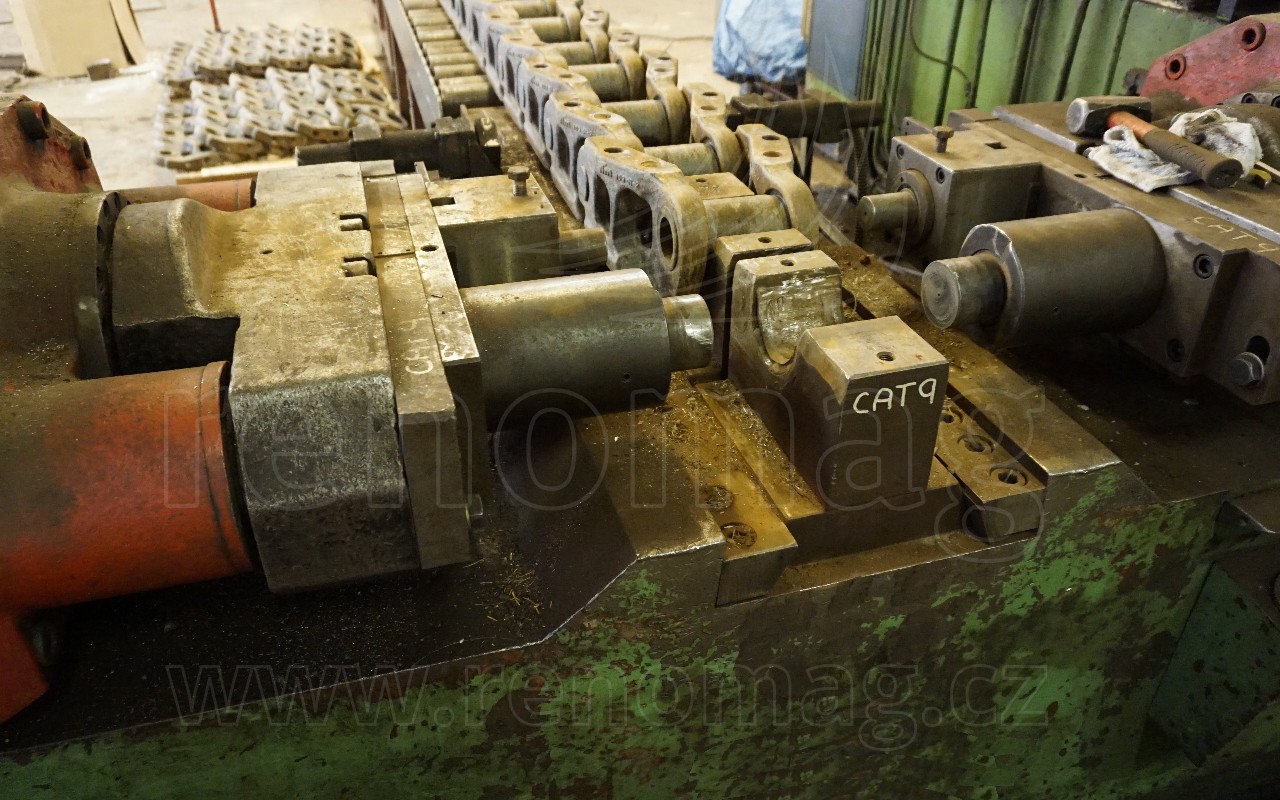

230 t press
On this press we carry out bushing turning, renovation and repair of chains up to a maximum size of B11 (e.g. chains for Caterpillar® D9E, D9G, D9H, D9N, D9L, D9R, D10N, D10R, D11, Komatsu® D355A, D355C, D375A, D475 and chains for large excavators).
