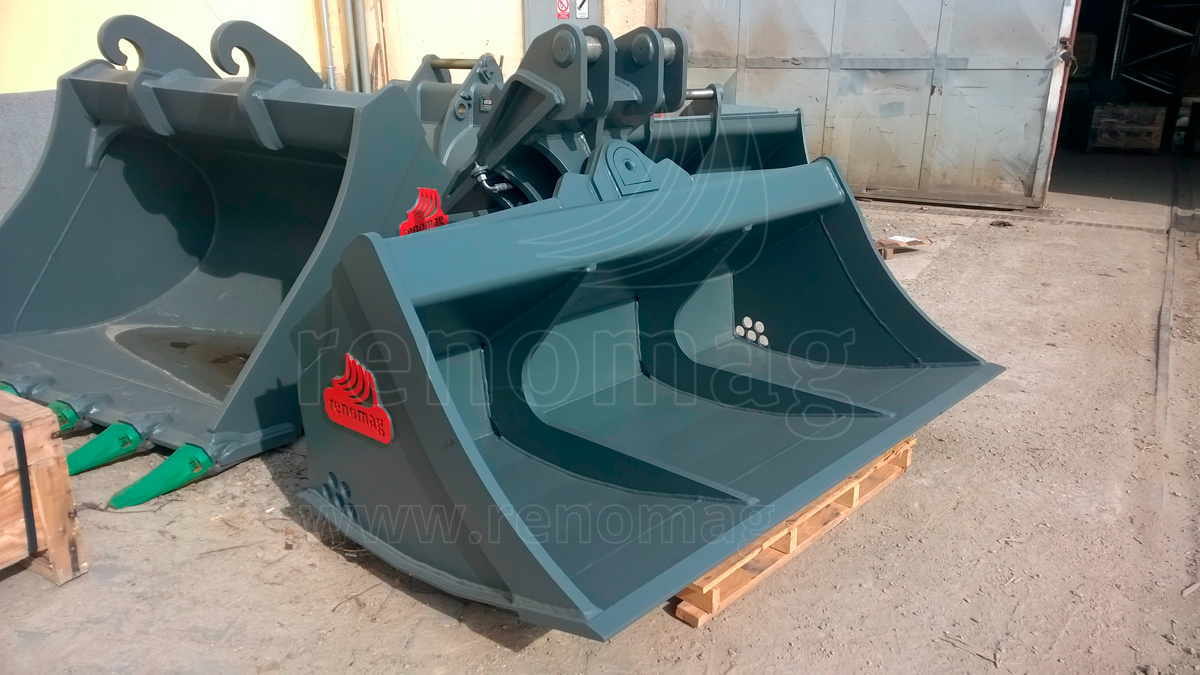

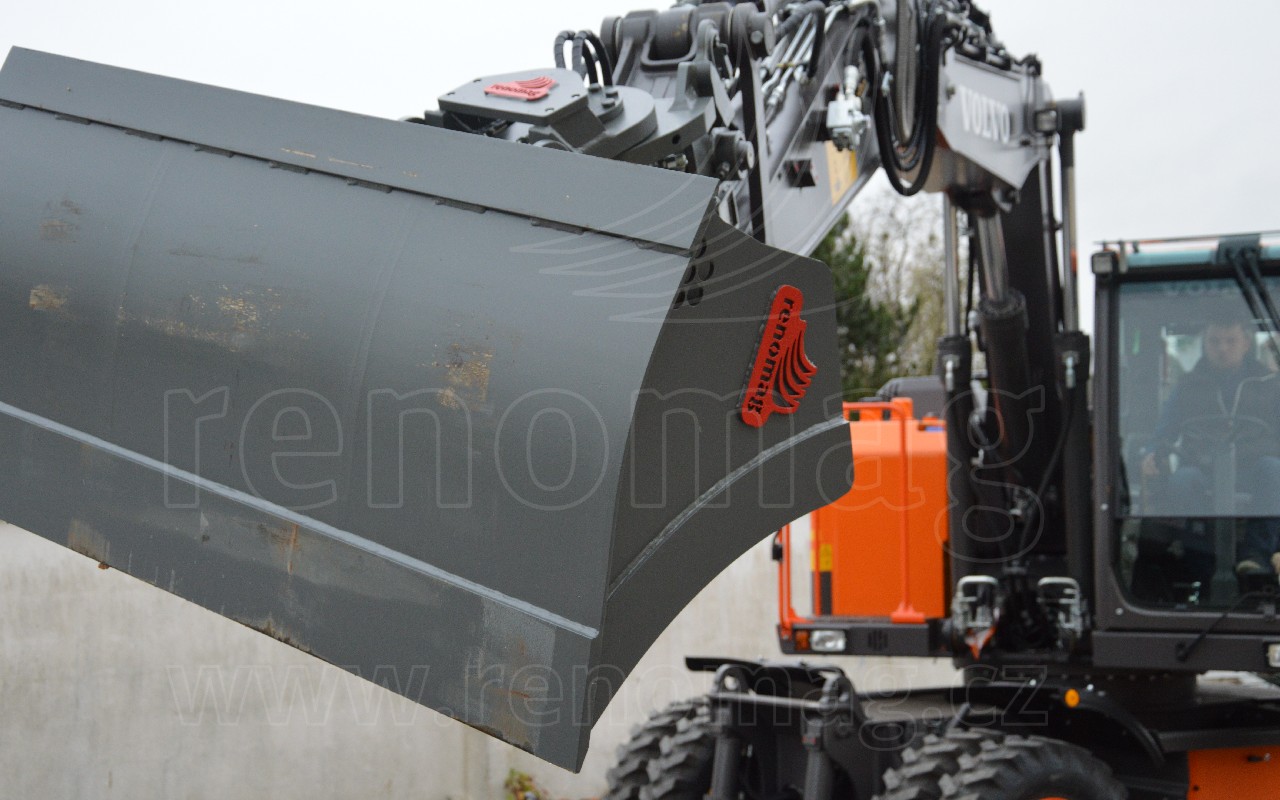

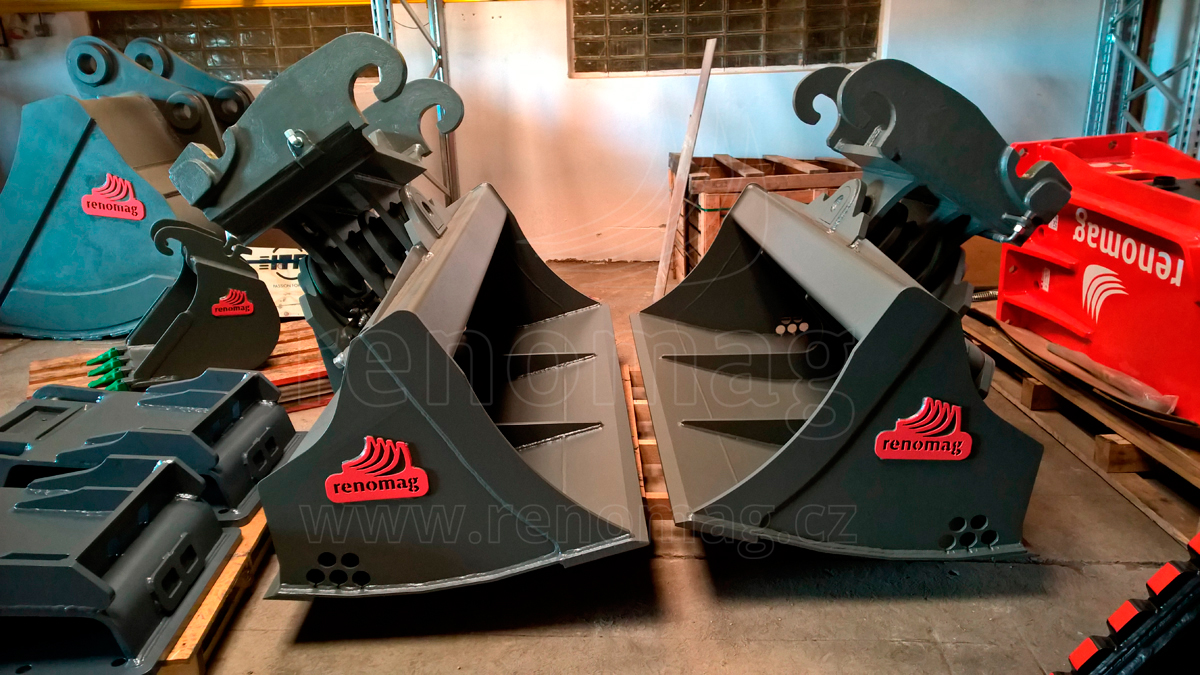

Name: Slope Excavator Buckets
Brand: RENOMAG

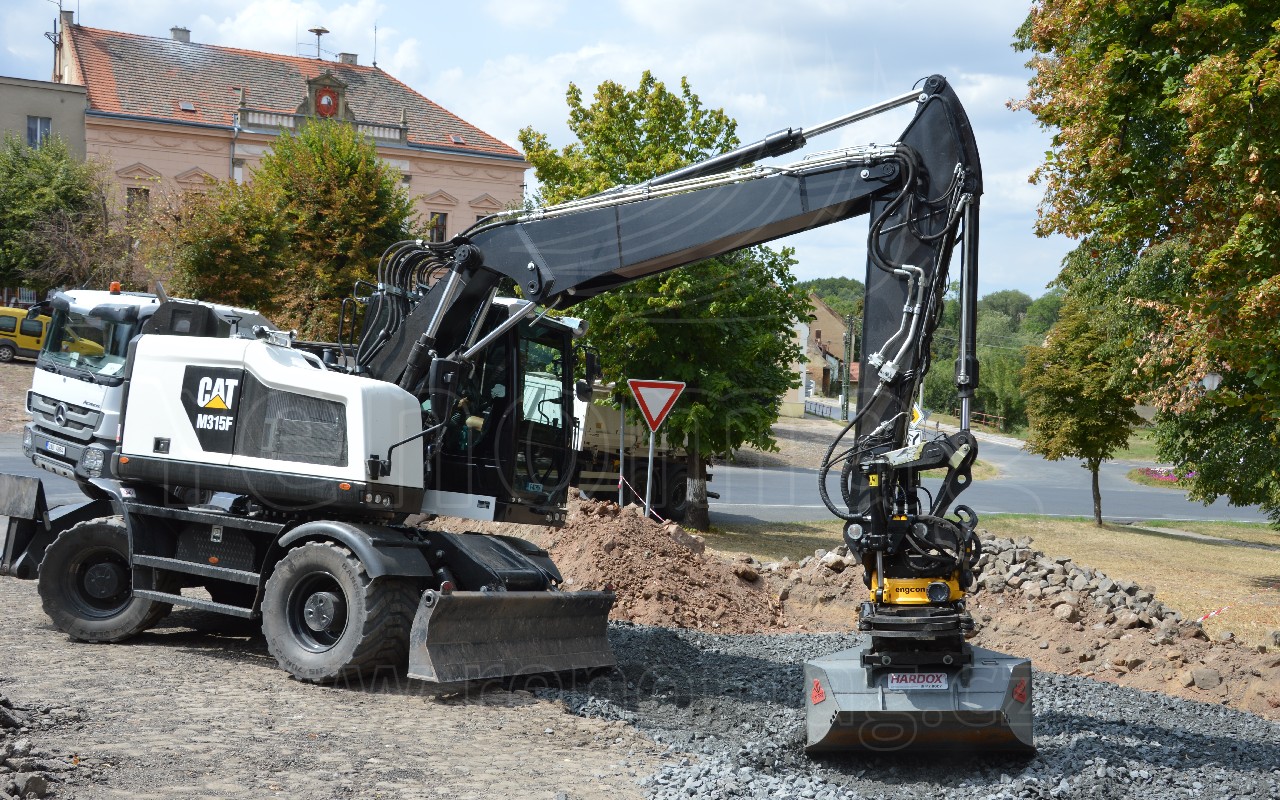

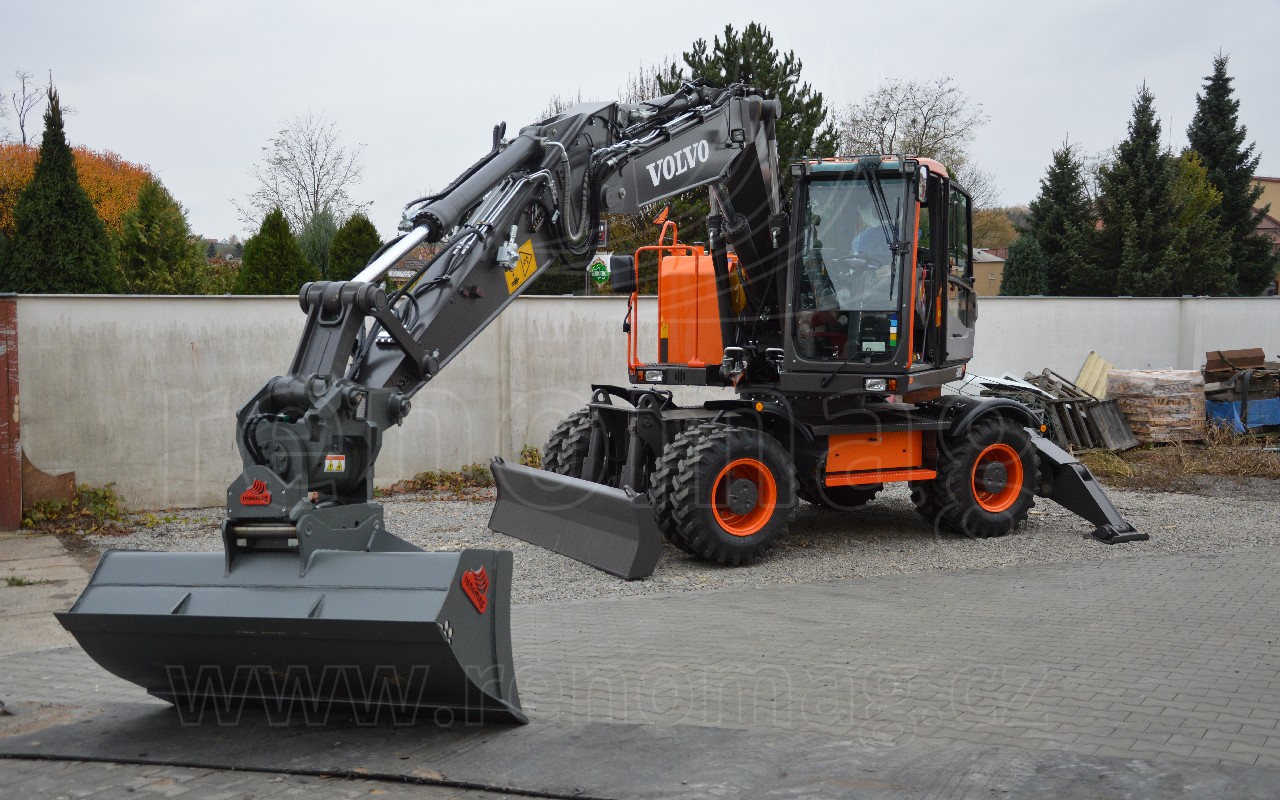

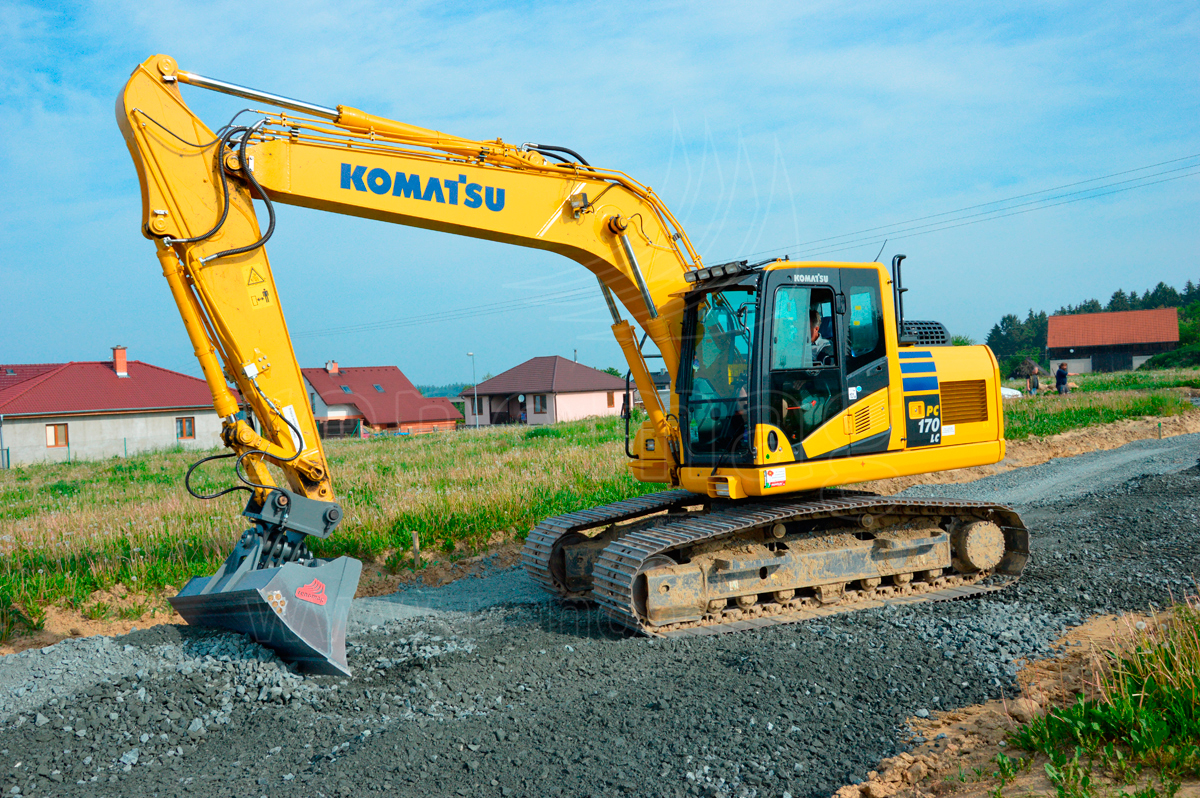

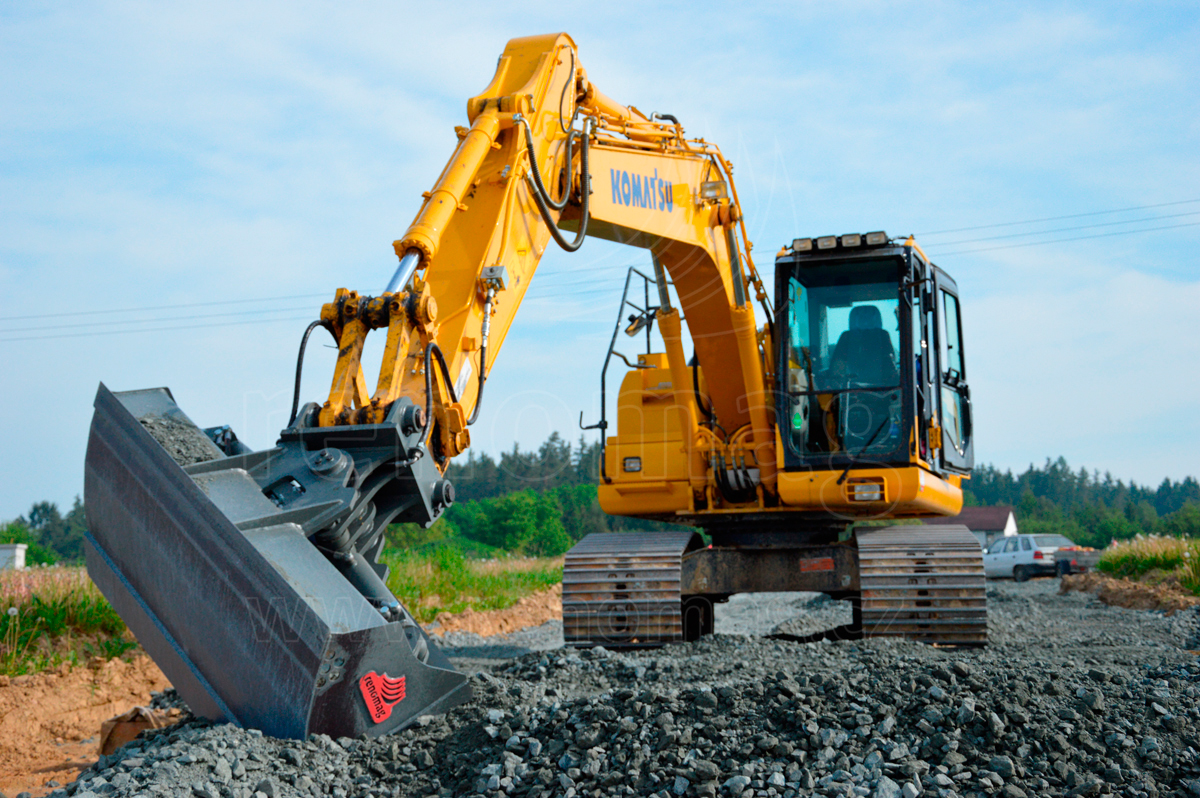

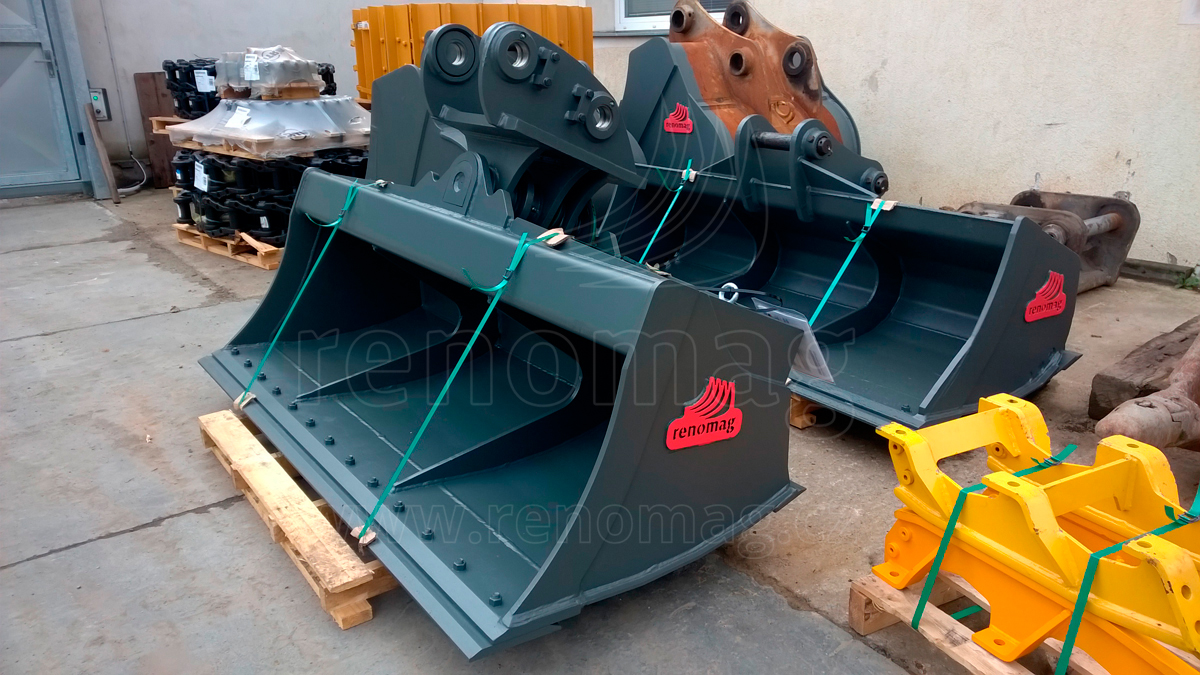

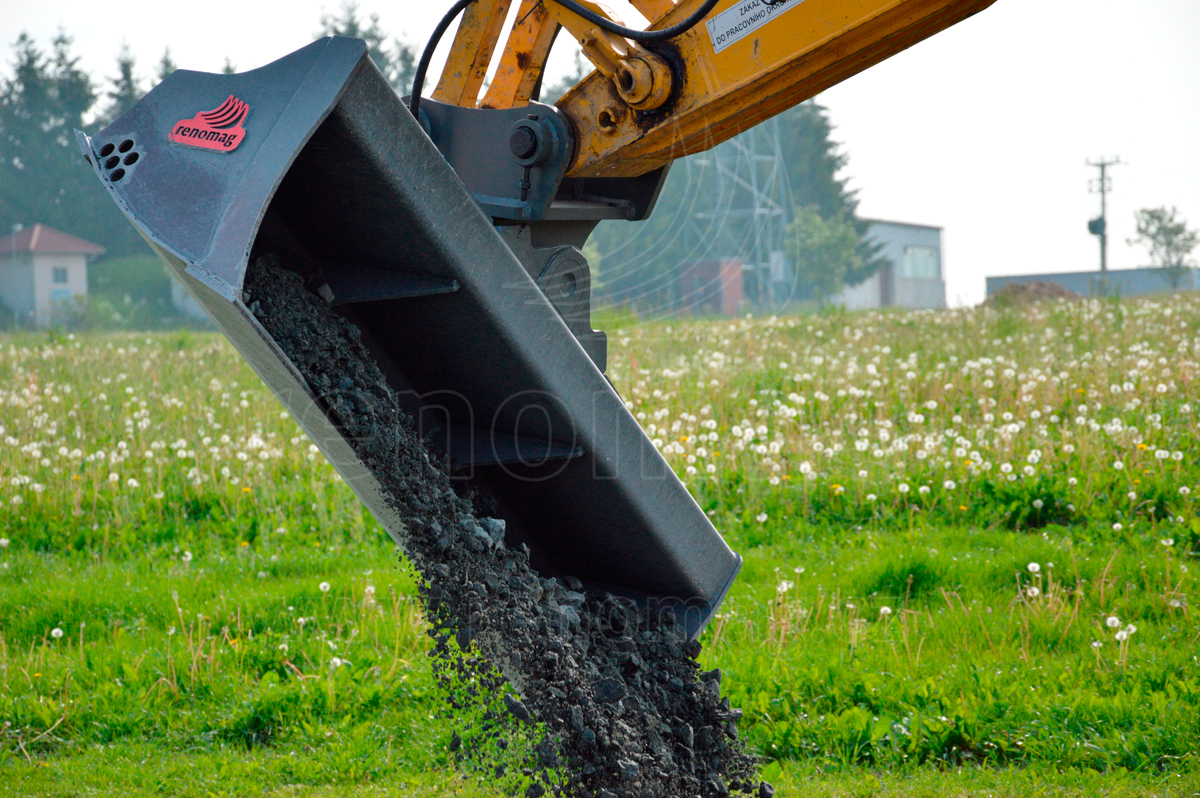

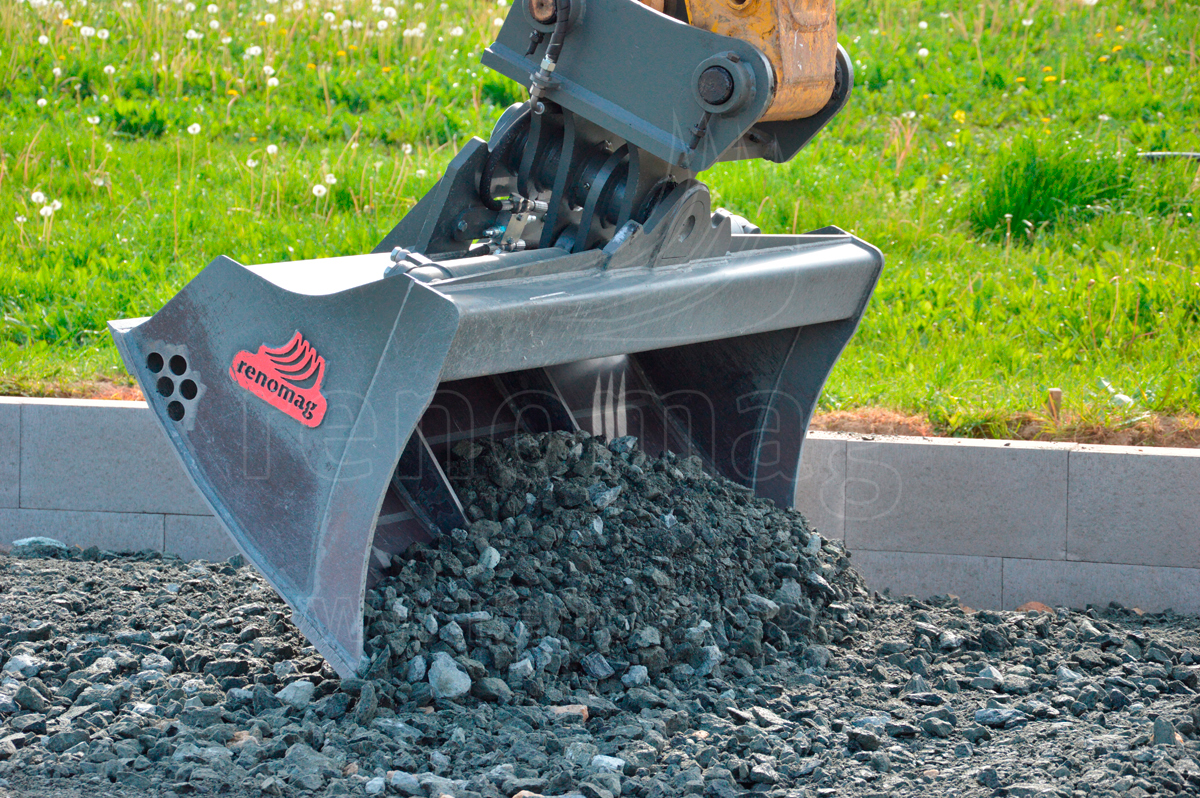

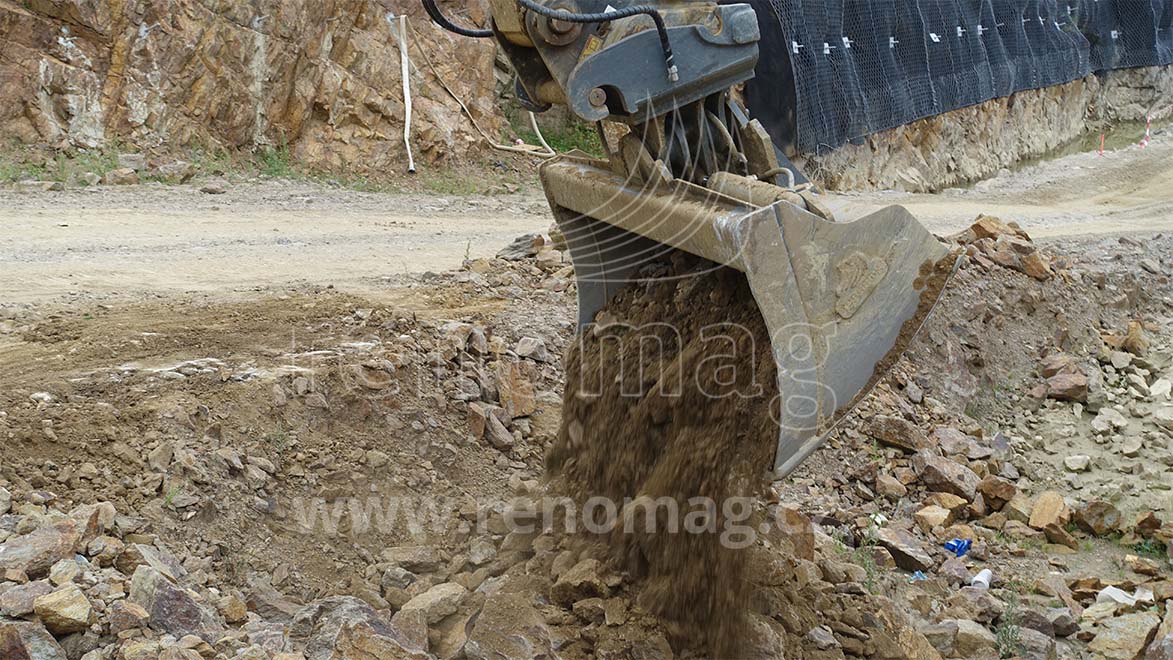

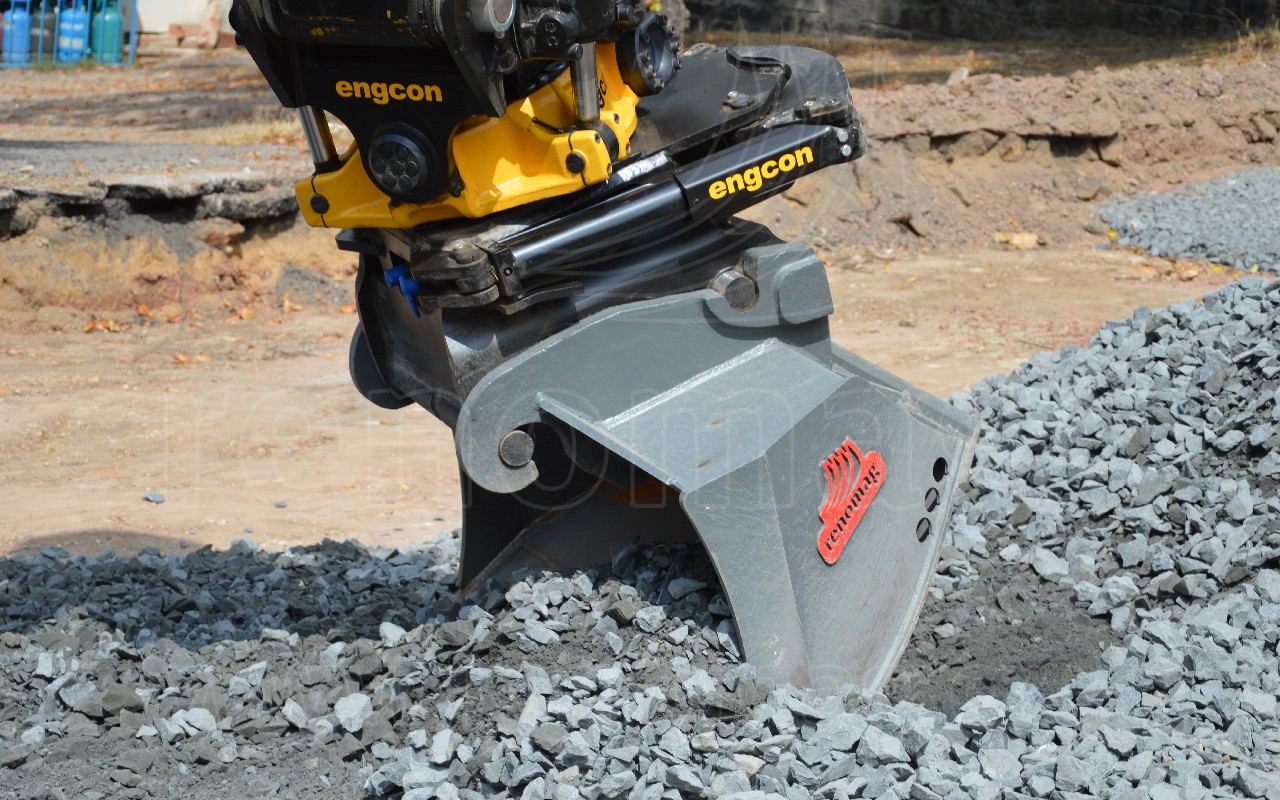

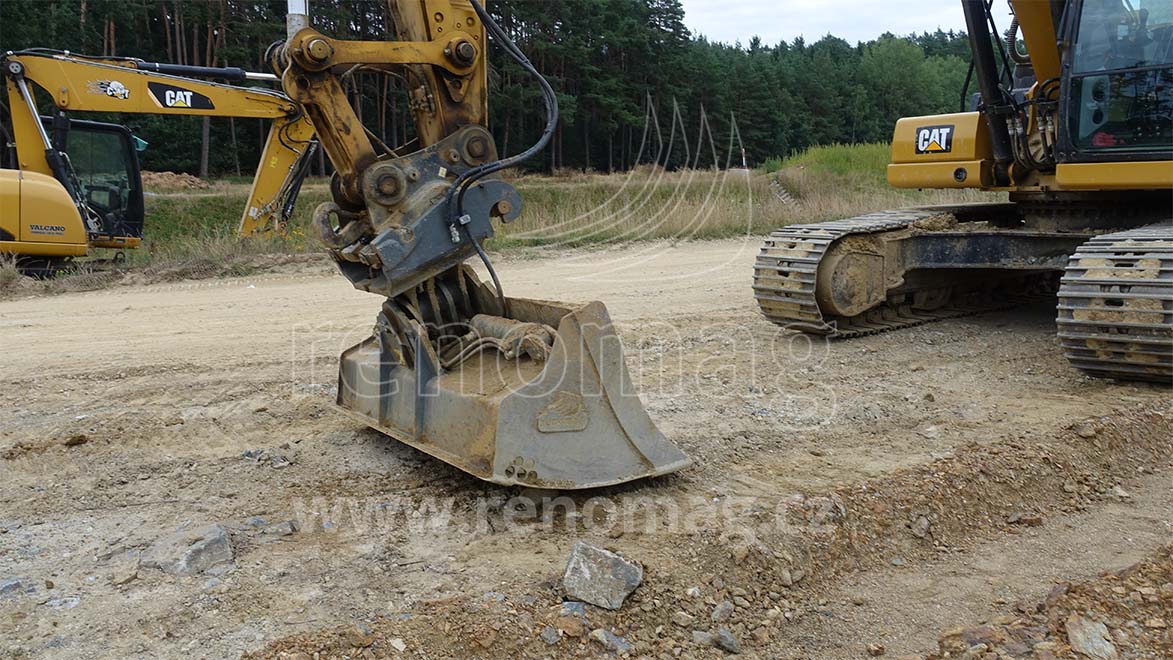

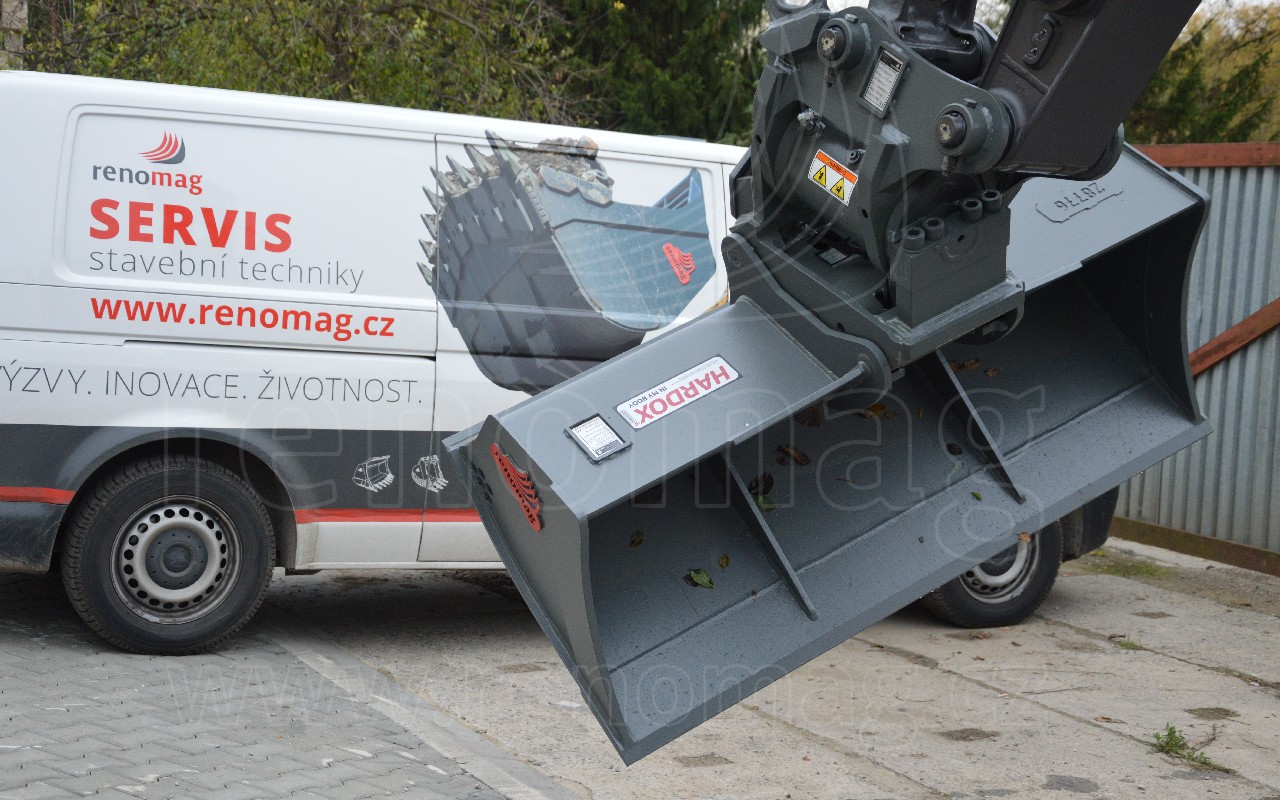

Our slope buckets feature a robust and durable design. Their development drew on many years of experience and user requirements. A body made of wear-resistant material ensures a very long service life while remaining lightweight for economical operation. A new addition to the range are slope buckets with a swing motor, which, compared to standard versions, stand out for the simplicity and long durability of the drive. They bring savings thanks to their low weight, maintenance-free operation and greater breakout force, made possible by the compact design.

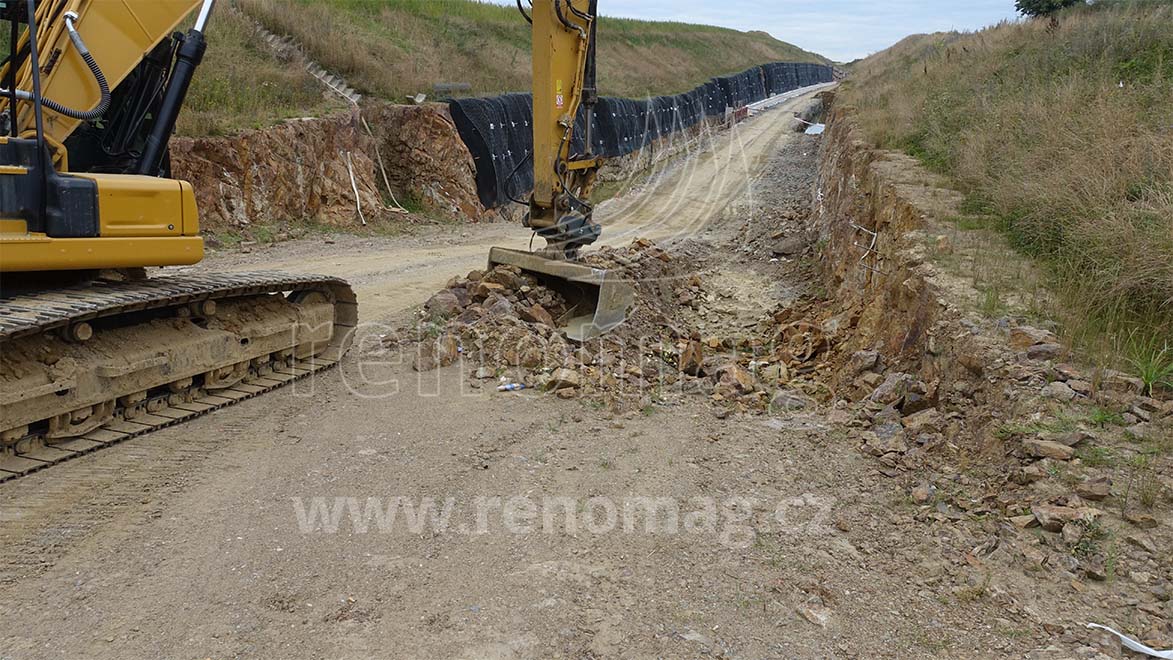

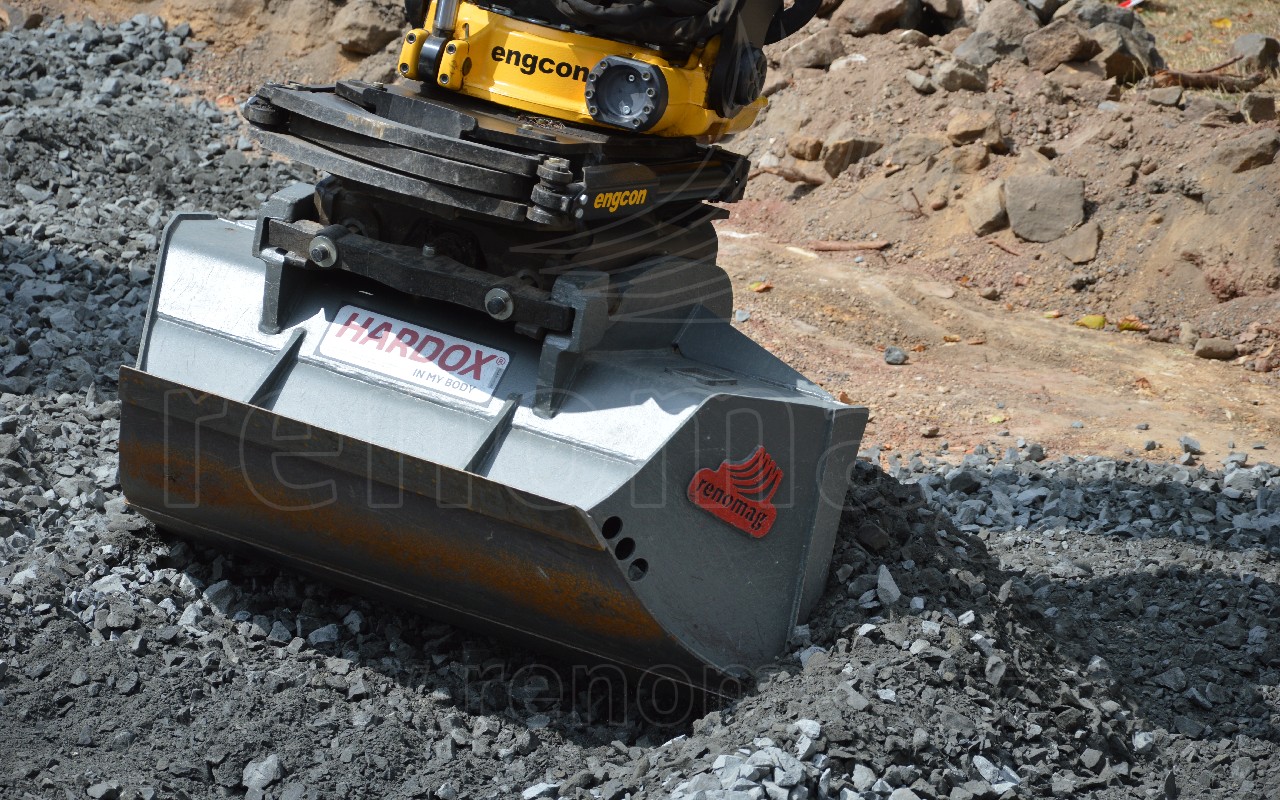

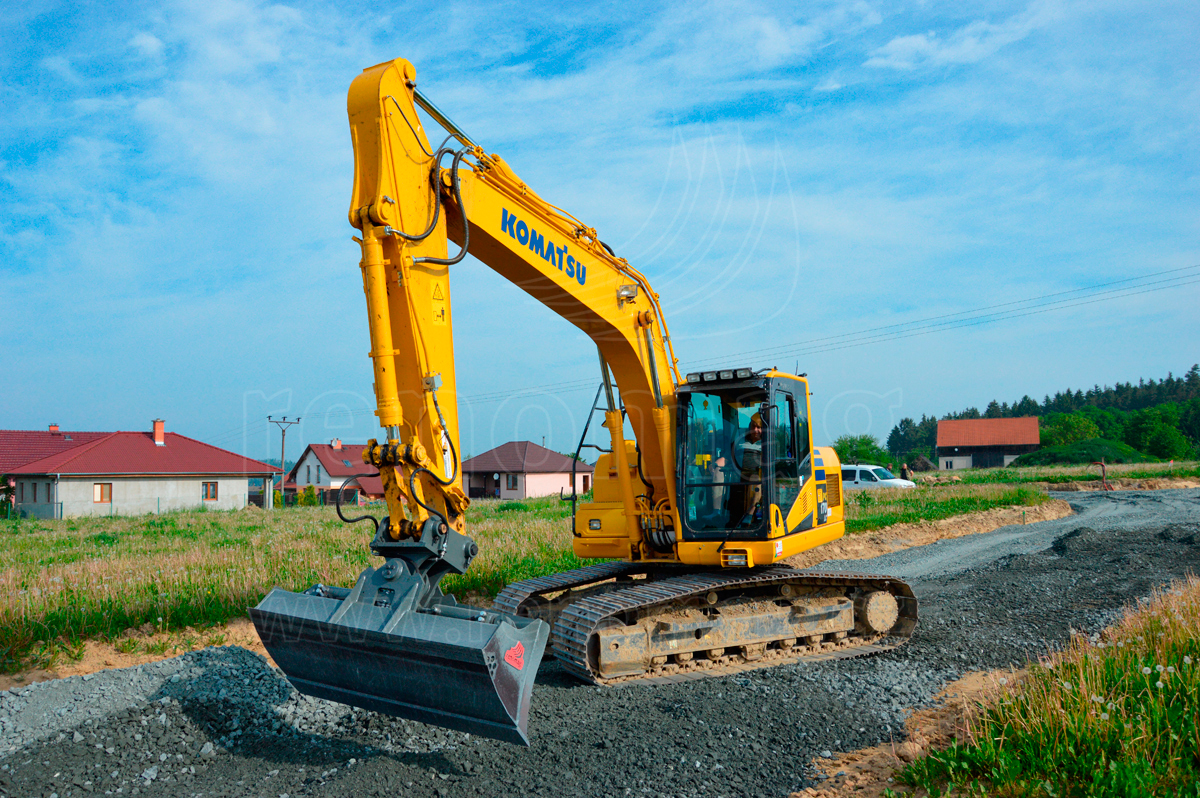

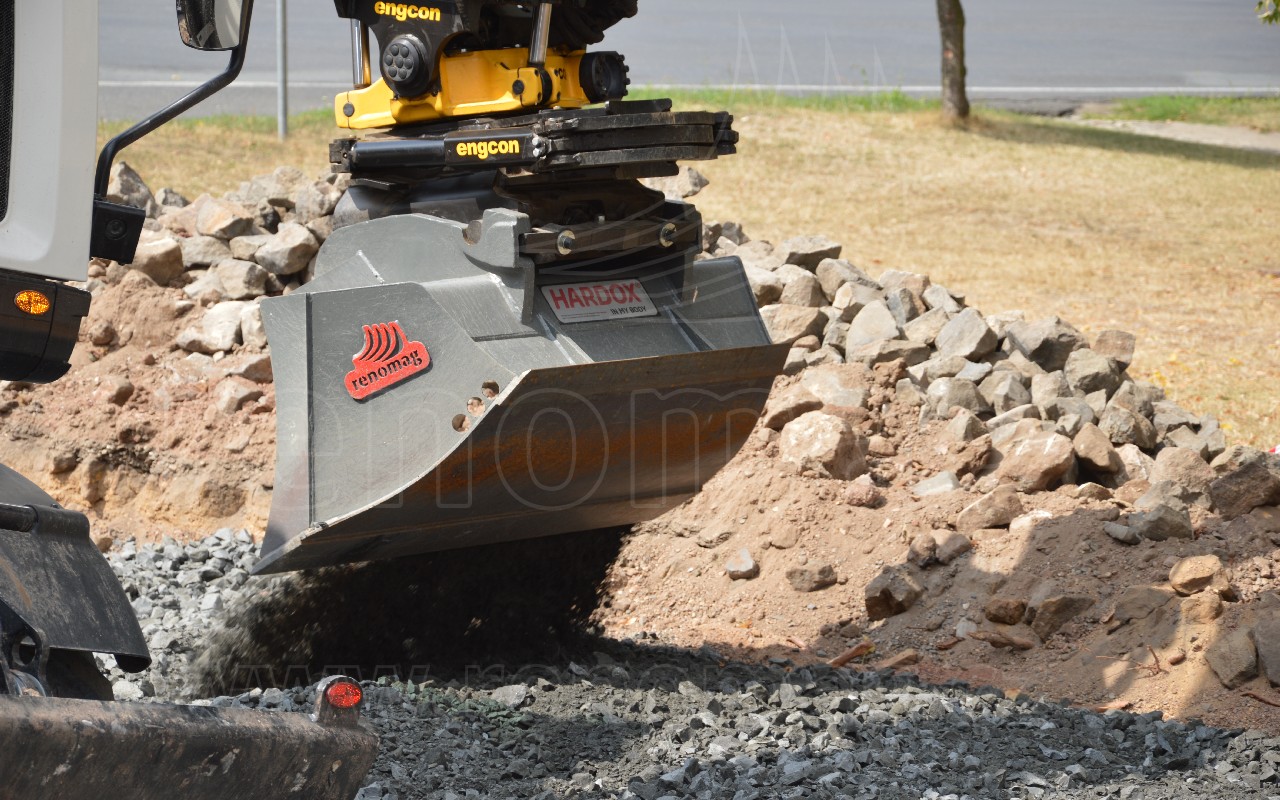

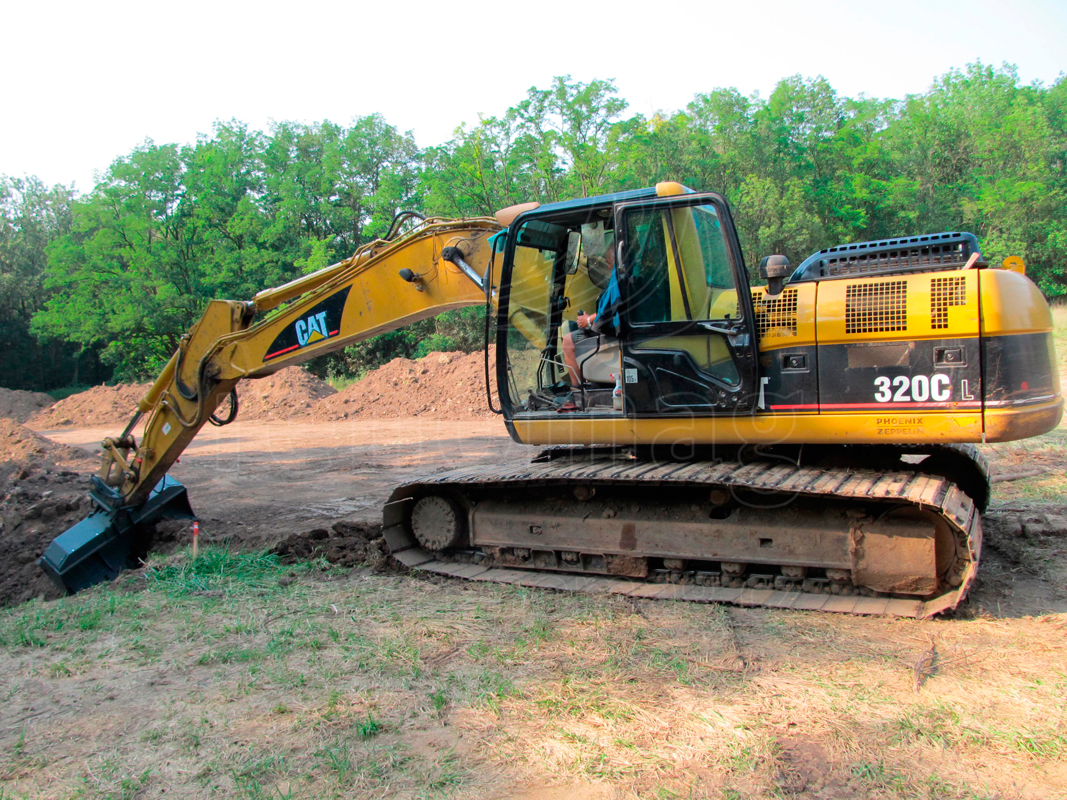

We supply slope buckets in the drive and body shape variants listed below to make it easier to select the best tool for cleaning ditches, adjusting and clearing silt from watercourses, finishing landscaping work, loading material, or other uses of these highly versatile attachments. A guarantee of the quality of the material used and long service life is certification by Hardox^® in My Body.

TYPES BY DRIVE:

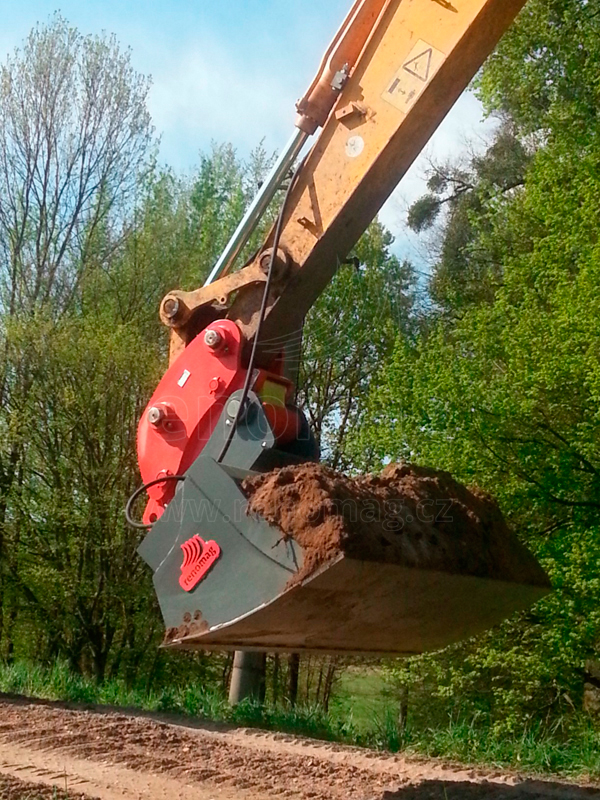

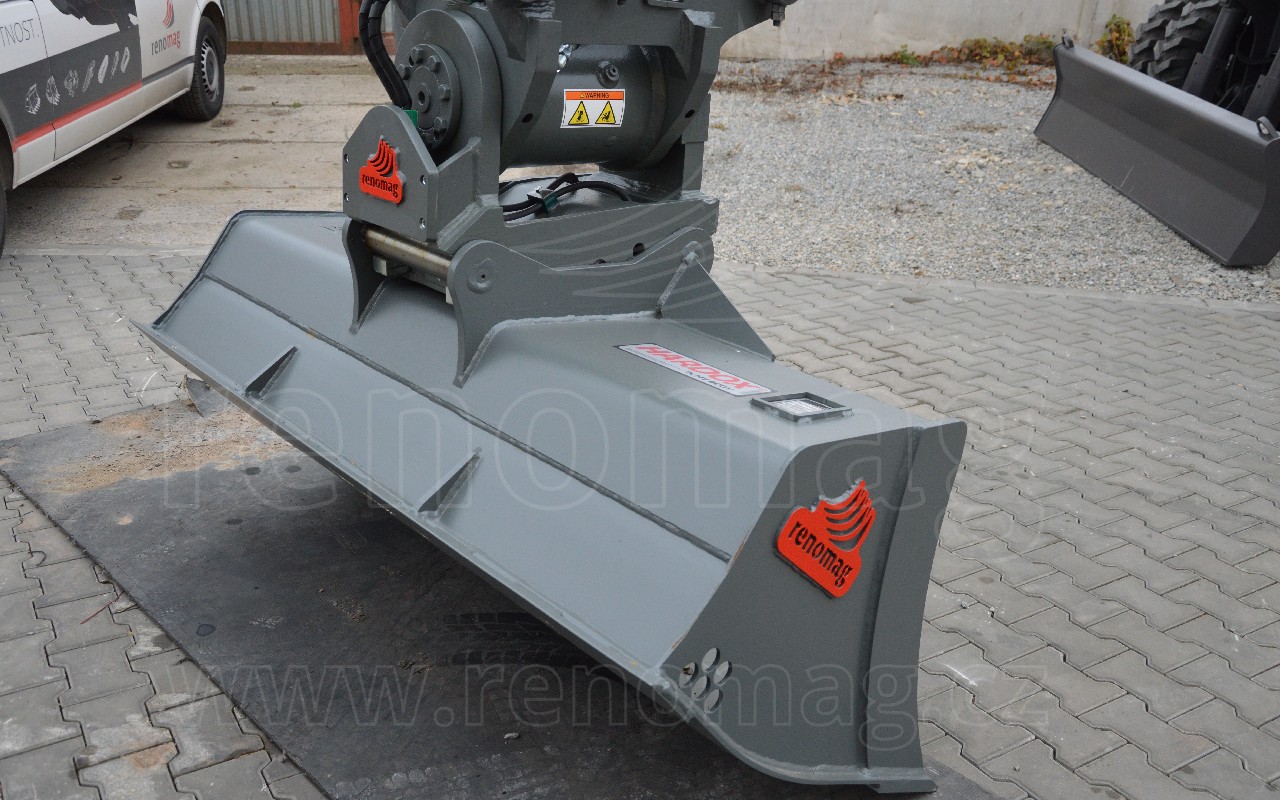

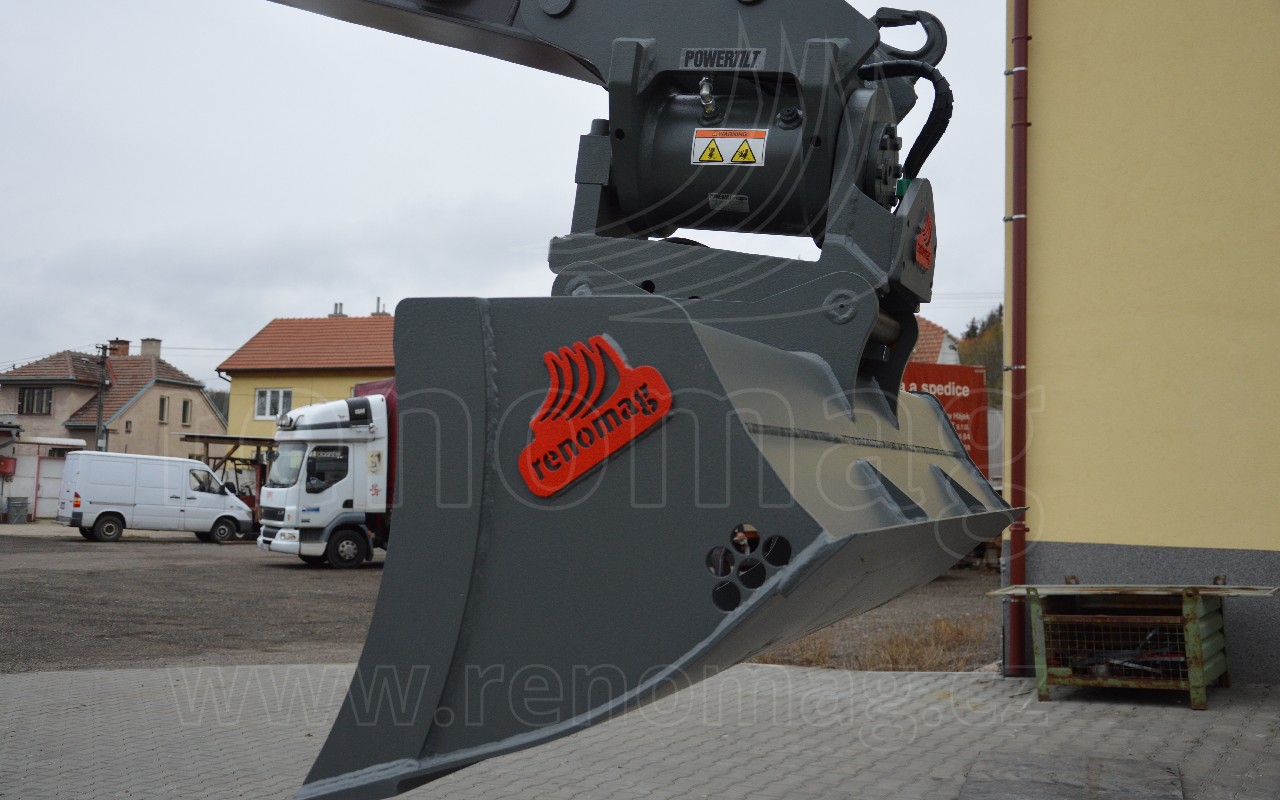

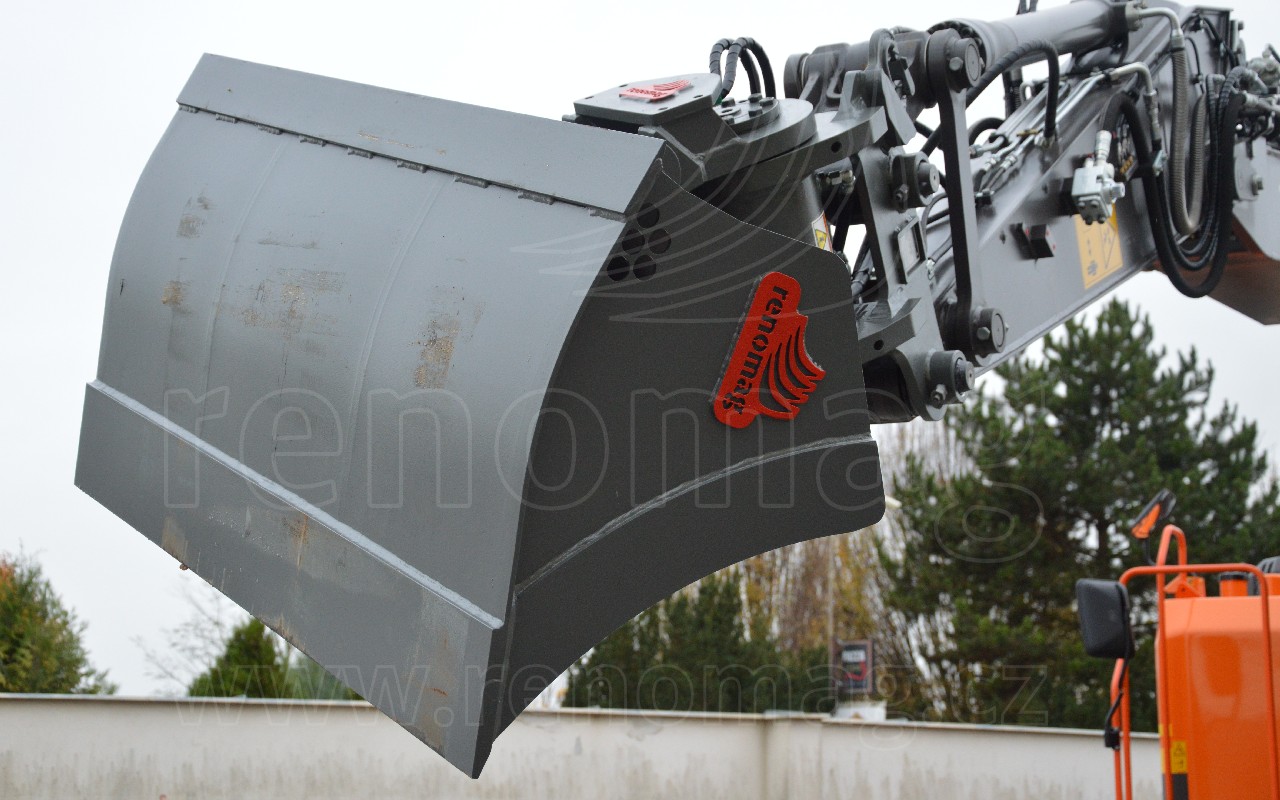

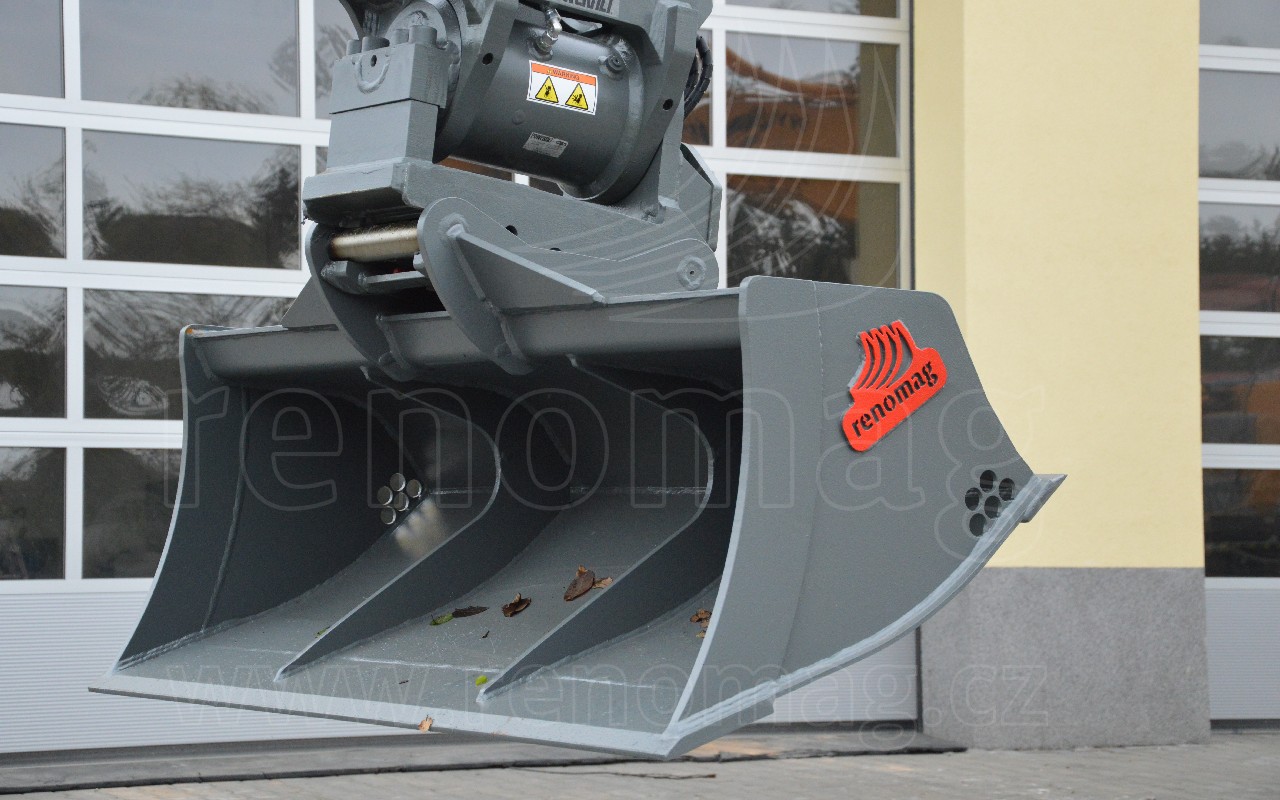

TYPE SN XHDM: hydraulically tilting, reinforced slope bucket, with swing motor

hydraulically tilting 2 × 45° with hydraulic swing motor
exceptionally robust and compact drive, fully enclosed and protected
ideal for work in very demanding environments, in water, marshy environments, or clay soil
compact drive dimensions allow the construction of buckets even with a very narrow cutting edge width
the drive is very durable, completely sealed, low-maintenance and resistant to mechanical influences
high reliability during work; integrated hydraulic system protection guards against possible damage from overload
hydraulic hoses connect directly to the rotary motor

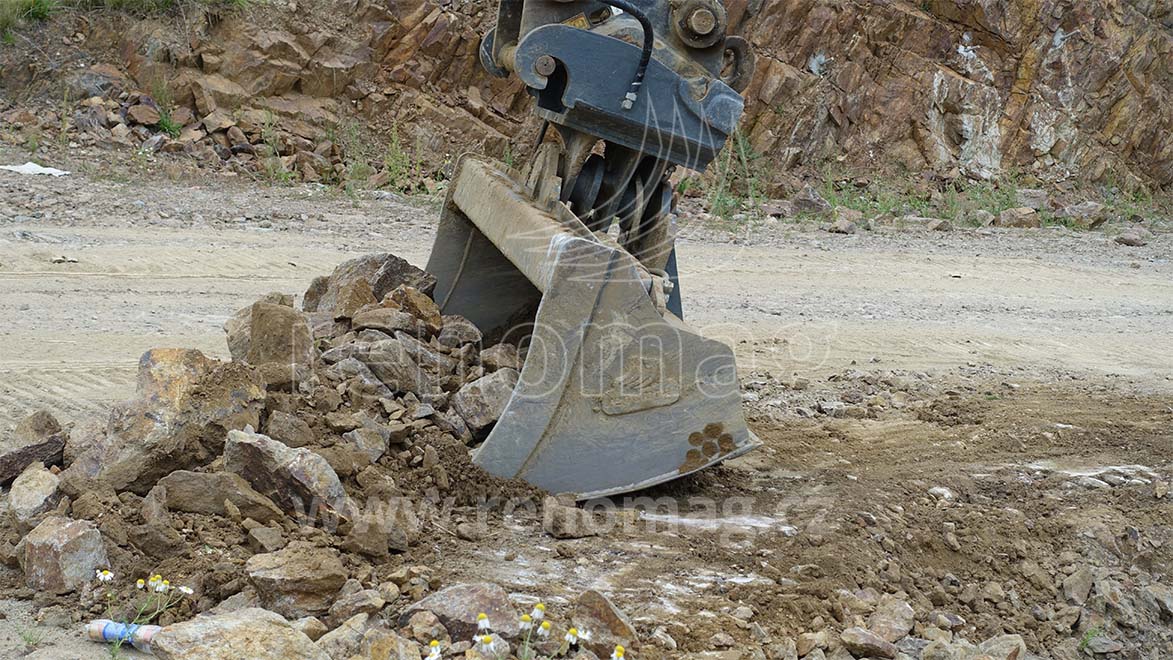

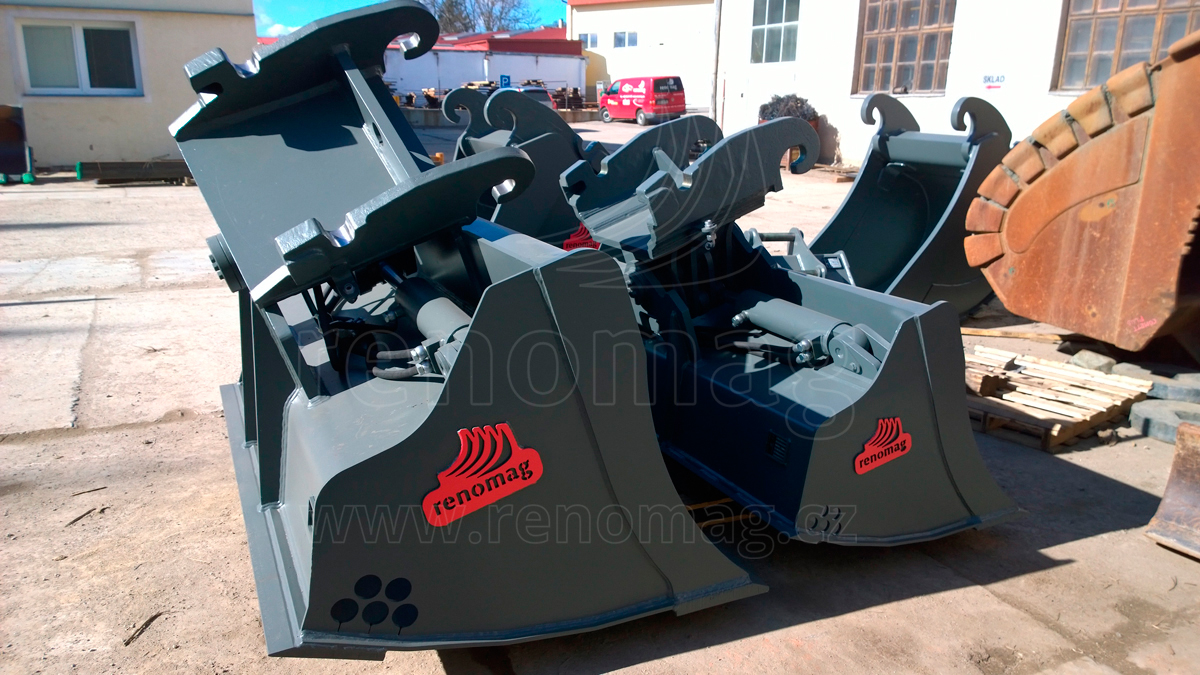

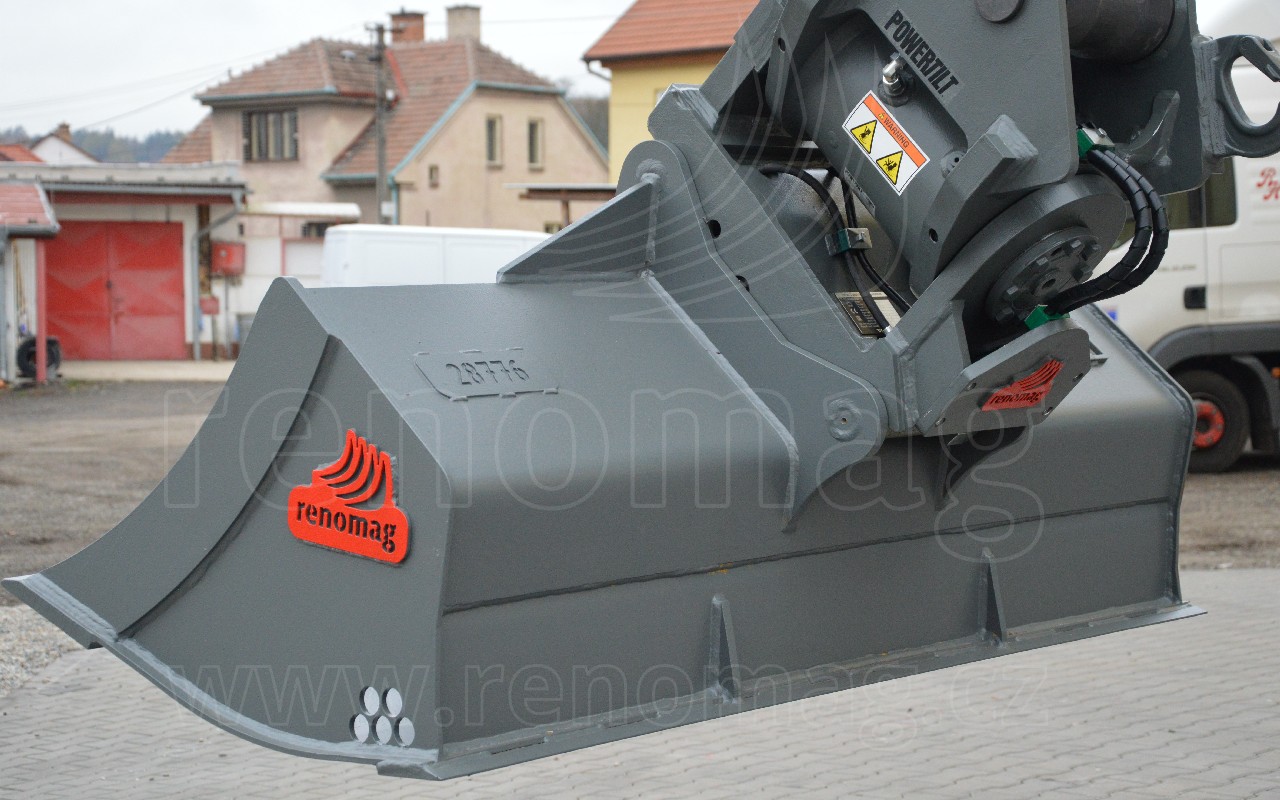

TYPE SN XHDK: hydraulically tilting, reinforced slope bucket, with piston rod cover

hydraulically tilting 2 × 45° using 1-2 cylinders depending on machine size, with cover
long service life not only for piston rods but also other hydraulic components in the covered version; easy maintenance thanks to quick
cover removal
short-length hoses are placed close to the axis of rotation and chosen with a view to minimising the risk of damage
high operational safety at work is provided by integrated overload protection for hydraulic cylinders and hoses, standard
for machines in the class over 10 tonnes
robust, durable, rotating head with one, or for machines over 10 tonnes in weight, two adequately sized hydraulic cylinders

TYPE SN XHDB: hydraulically tilting, reinforced slope bucket

hydraulically tilting 2 × 45° using 1-2 cylinders depending on machine size, without cover
short-length hoses are placed close to the axis of rotation and chosen with a view to minimising the risk of damage
high operational safety at work is provided by integrated overload protection for hydraulic cylinders and hoses, standard
for machines in the class over 10 tonnes
robust, durable, rotating head with one, or for machines over 10 tonnes in weight, two adequately sized hydraulic cylinders

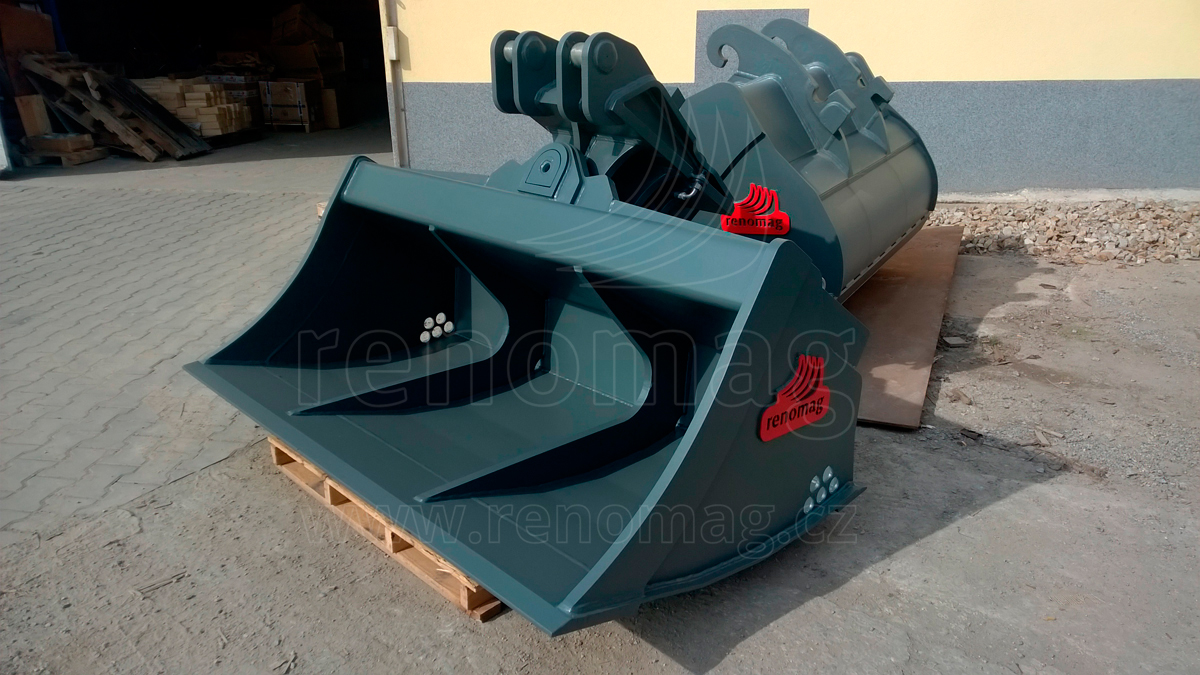

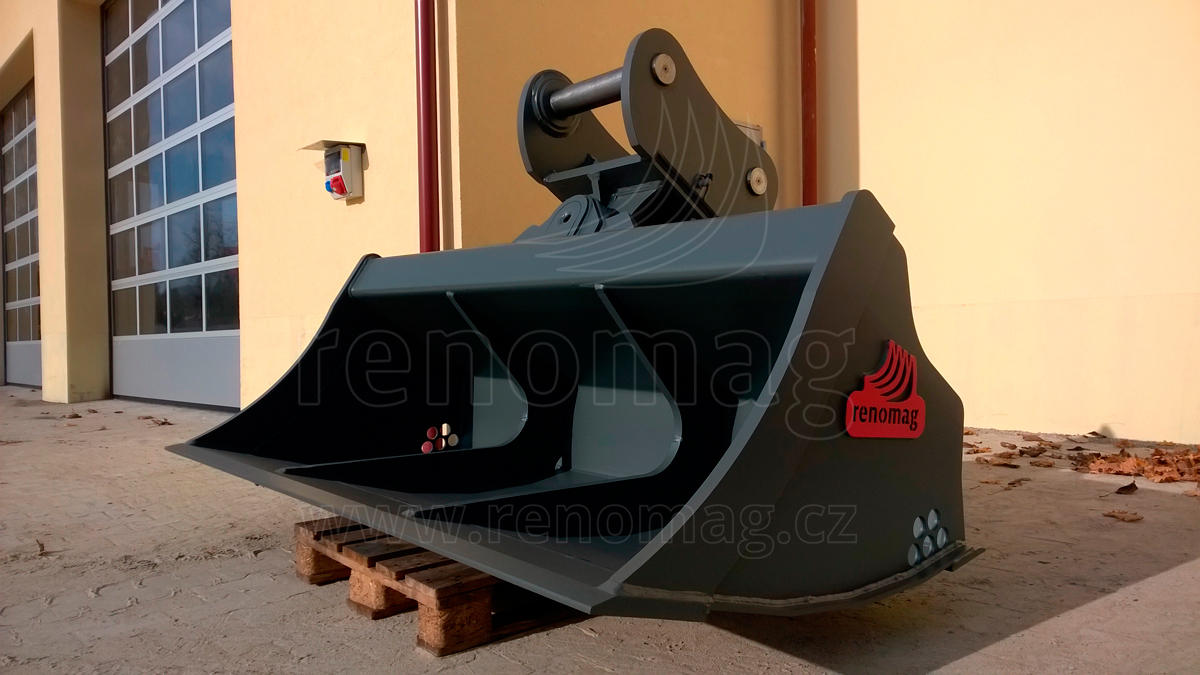

TYPE SP XHD, fixed, reinforced slope bucket

the fixed mounting design ensures high rigidity and resistance to twisting at critical part connection points
the most heavily stressed parts are made of wear-resistant, strong steel for maximum durability while keeping weight low
