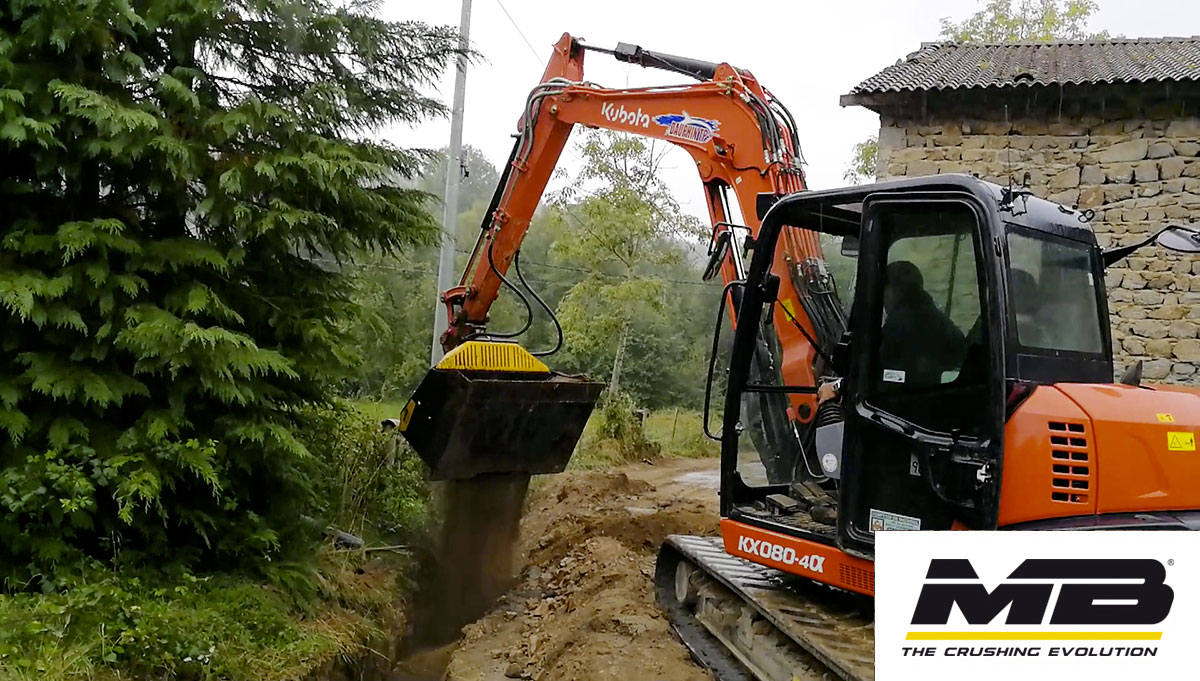

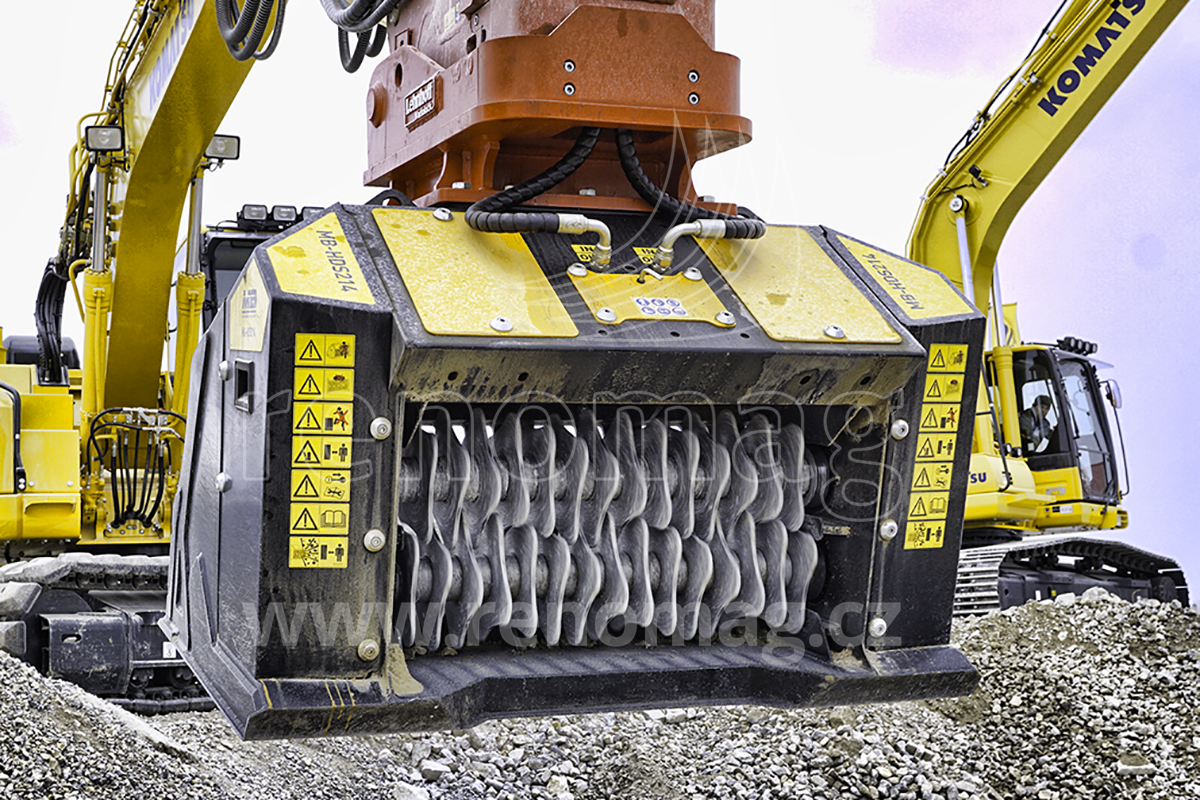

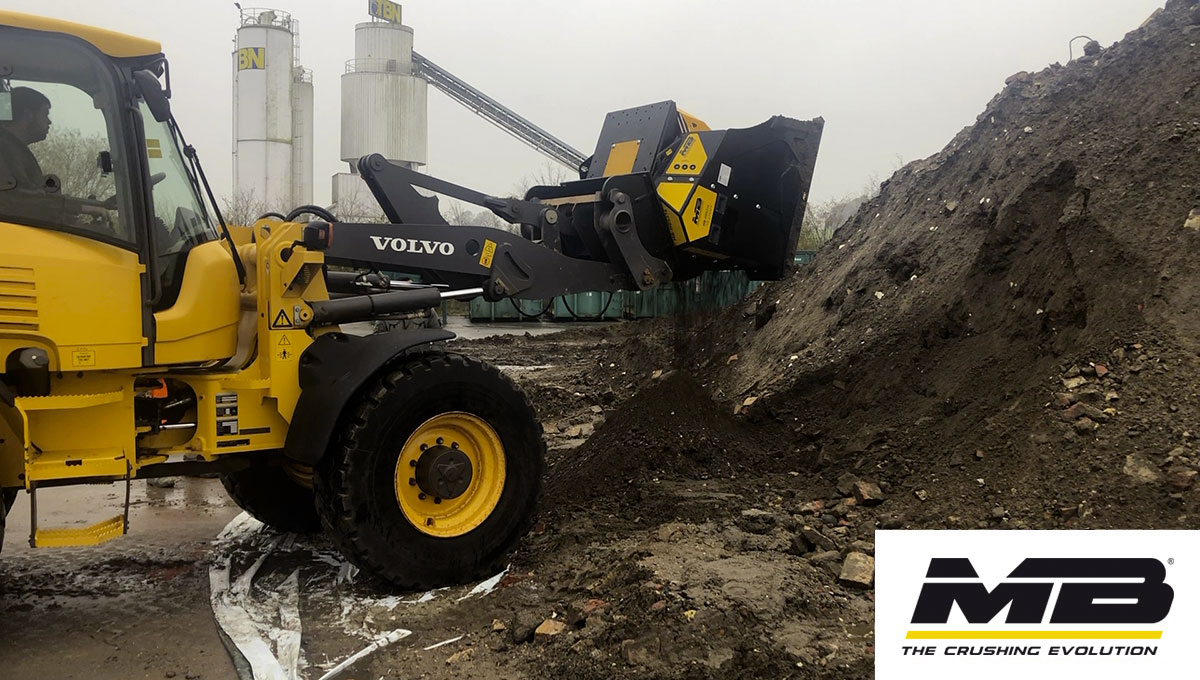

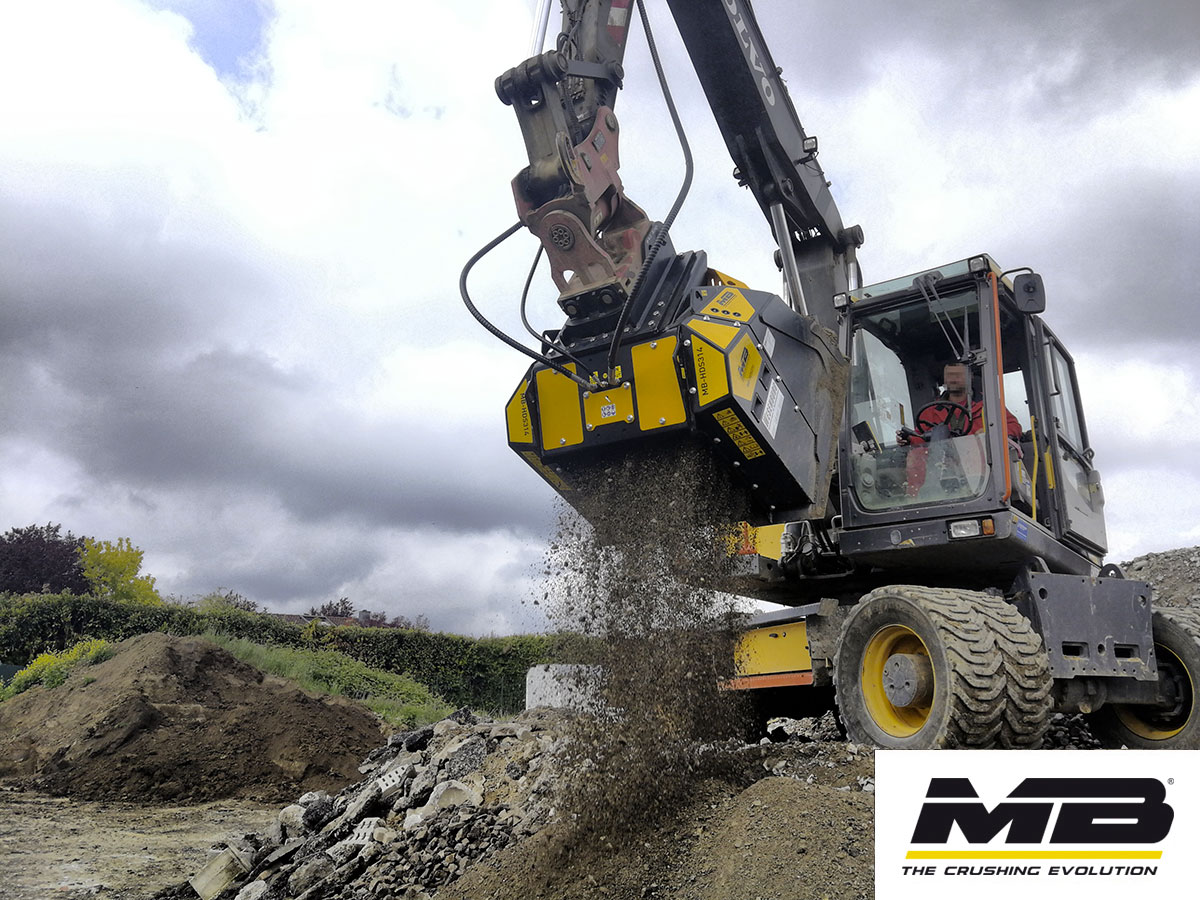

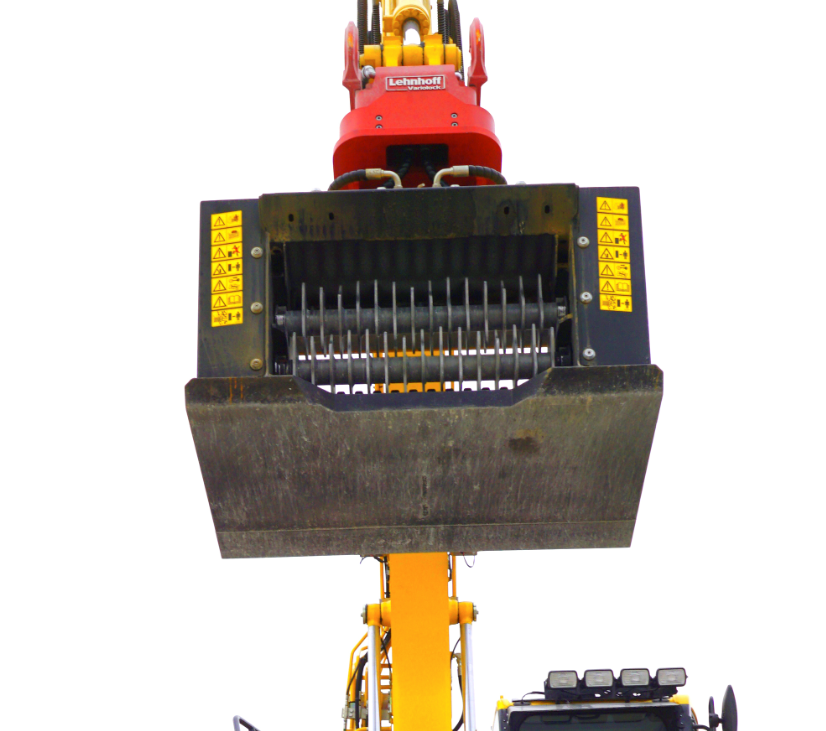

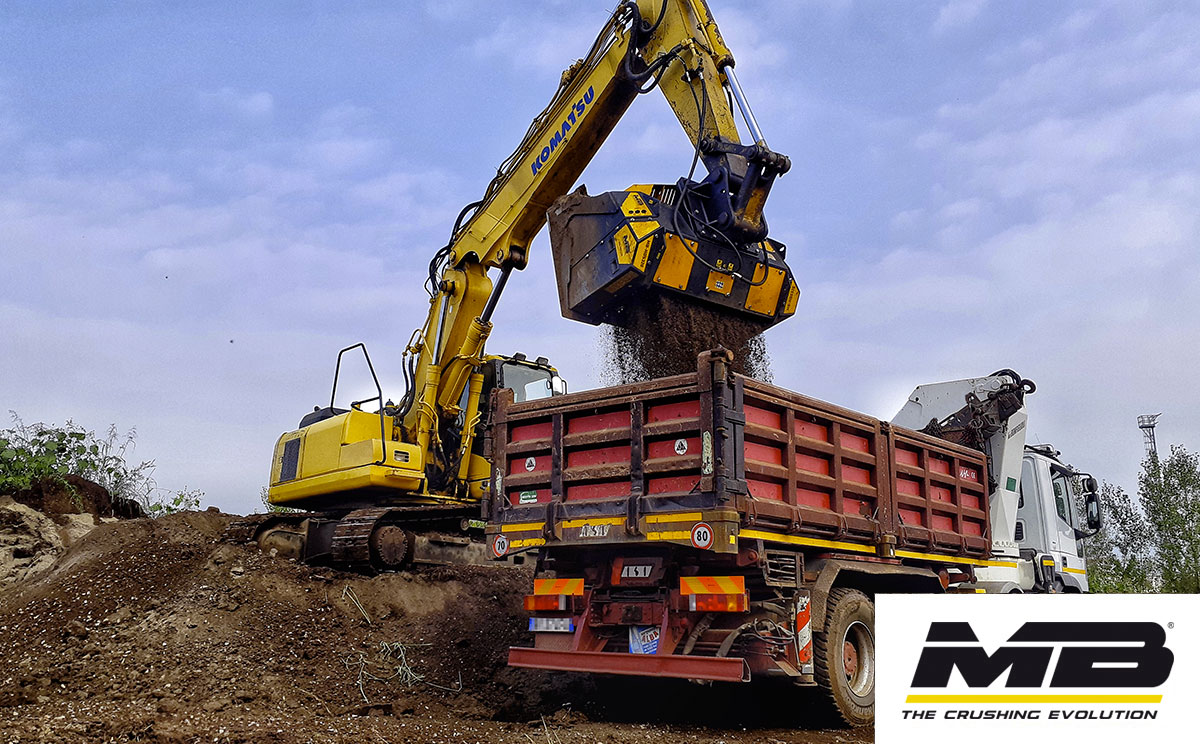

Innovative MB Crusher MB-HDS screening buckets are available in four models. With interchangeable shaft sets, they are suitable for various material processing requirements. Like all MB Crusher machines, the MB-HDS can be easily installed on excavators, backhoe loaders, wheeled and tracked loaders of any brand (ranging from 3.5 to 35 tonnes), allowing them to work on any job site, from urban construction to agricultural land reclamation.
| Technical Data / Type | MB-HDS214 | MB-HDS314 | MB-HDS320 | MB-HDS323 | |
|---|---|---|---|---|---|
| Construction Machine | Excavator | ≥ 6 ≤ 12 tonnes | ≥ 10 ≤ 20 tonnes | ≥ 16 ≤ 24 tonnes | ≥ 18 ≤ 35 tonnes |
| Backhoe Loader | ≥ 5 ≤ 8 tonnes | ≥ 6 ≤ 10 tonnes | ≥ 9 ≤ 12 tonnes | ≥ 10 ≤ 15 tonnes | |
| Loader | ≥ 3.5 tonnes | - | - | - | |
| Load Volume | 0.5 m3 | 0.9 m3 | 1.35 m3 | 1.65 m3 | |
| Dimensions | 1380 × 1125 × 950 mm | 1430 × 1350 × 1250 mm | 2050 × 1350 × 1250 mm | 2330 × 1500 × 1250 mm | |
| Pressure | > 200 bar | > 225 bar | > 250 bar | > 250 bar | |
| Back Pressure | - | < 5 bar | - | < 5 bar | |
| Weight | 0.82 tonnes | 1.4 tonnes | 2.1 tonnes | 2.4 tonnes | |
| Oil Flow | 75 l/min. | 100 l/min. | 130 l/min. | 130 l/min. | |
Supplied accessories:
- spare parts set
- clamping device
- shaft holder
- RC for composting
- RM for crushing
- RE8 for fine screening
- RE16 for fine screening
- RQ20 for medium screening
- RQ50 for medium screening
| Shaft Set | Setting | Type of Work | |
|---|---|---|---|
| RC for Composting | 36.5* mm | Processing of branches and plant material | Composting | |
| RM for Crushing | - | Soil Aeration | Compost Aeration | Coal Processing | Plasterboard Processing | Glass Processing | |
| RE8/RE16 for Fine Screening | 8.5/16 mm | Screening of Wet and Dry Soil | |
| RQ20/RQ50 for Medium Screening | 20/50 mm | Screening of Wet and Dry Soil | Soil Aeration | |
