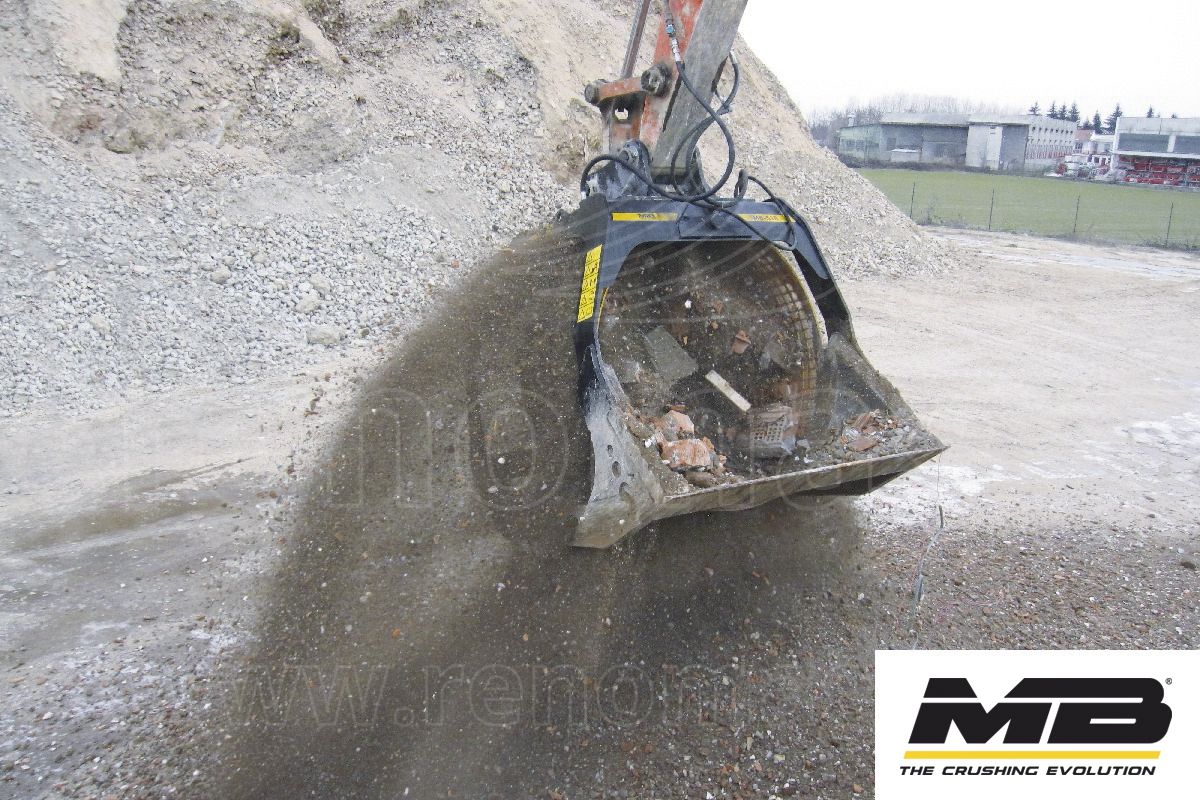

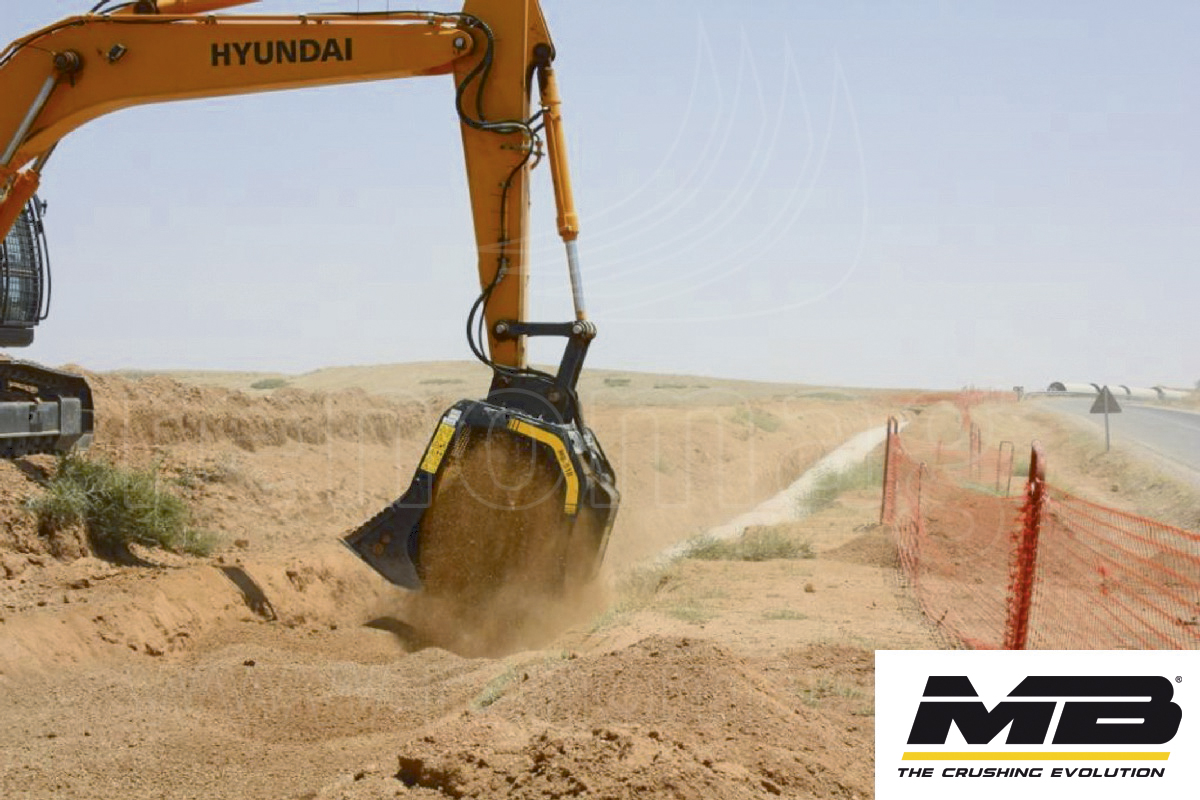

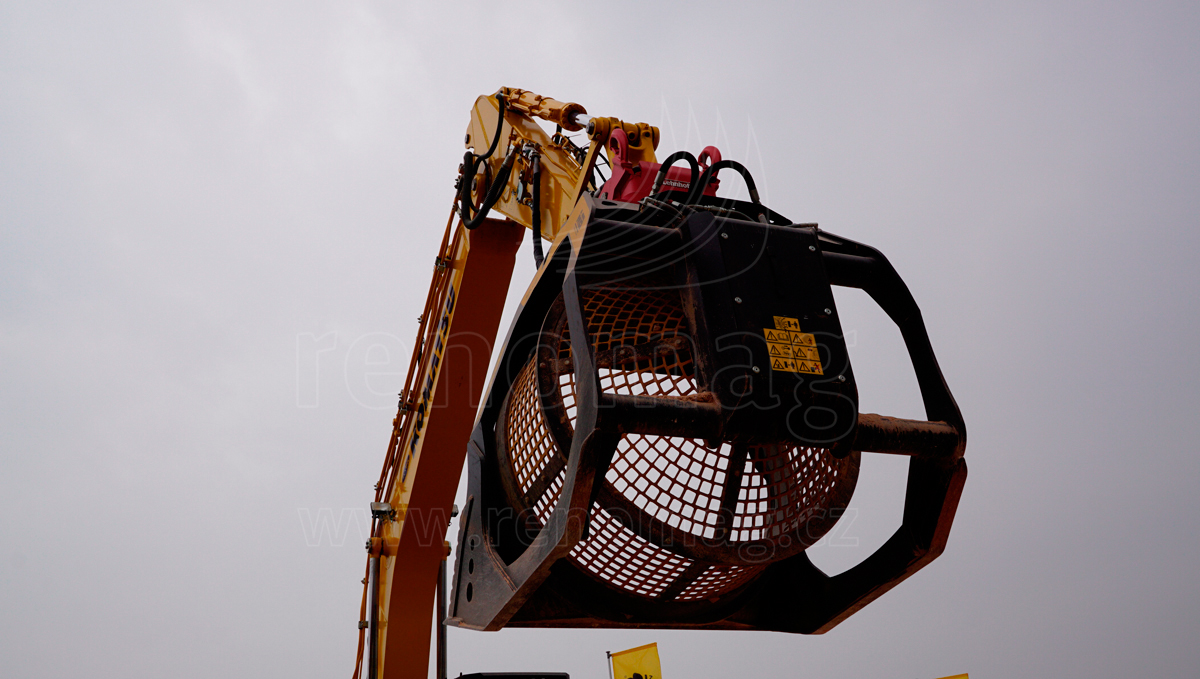

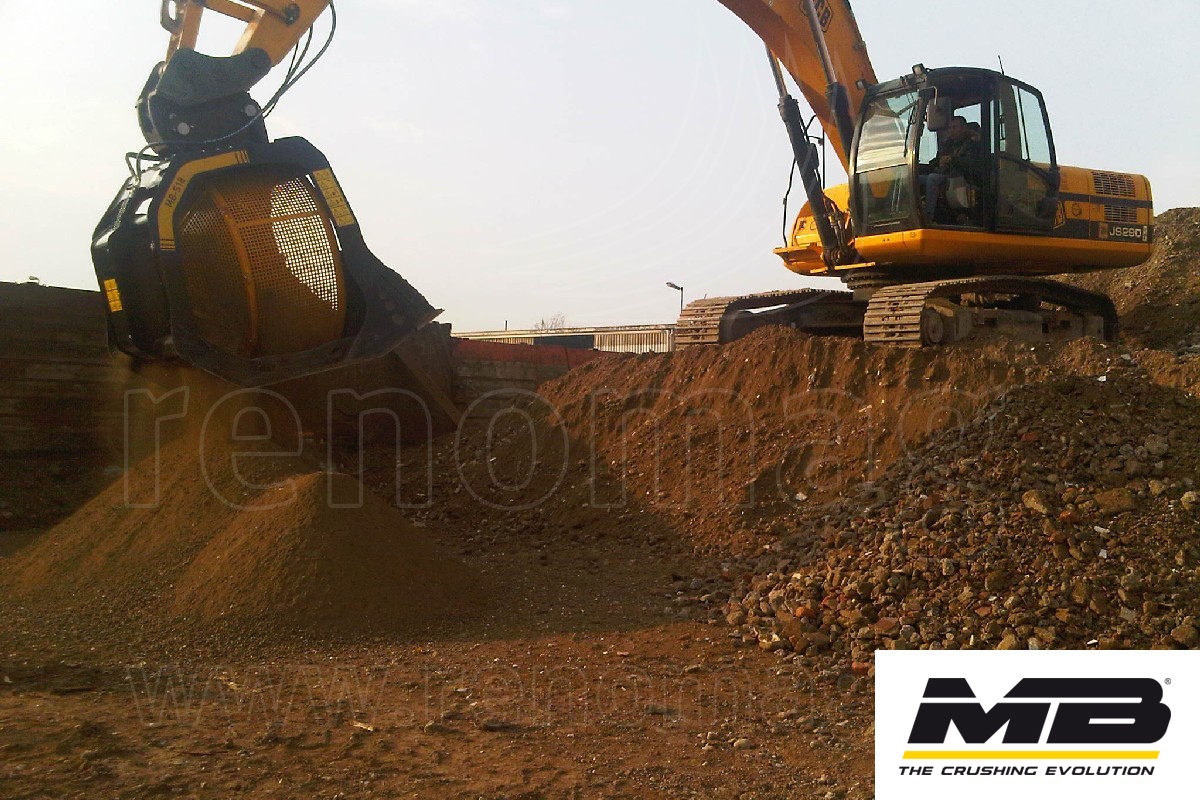

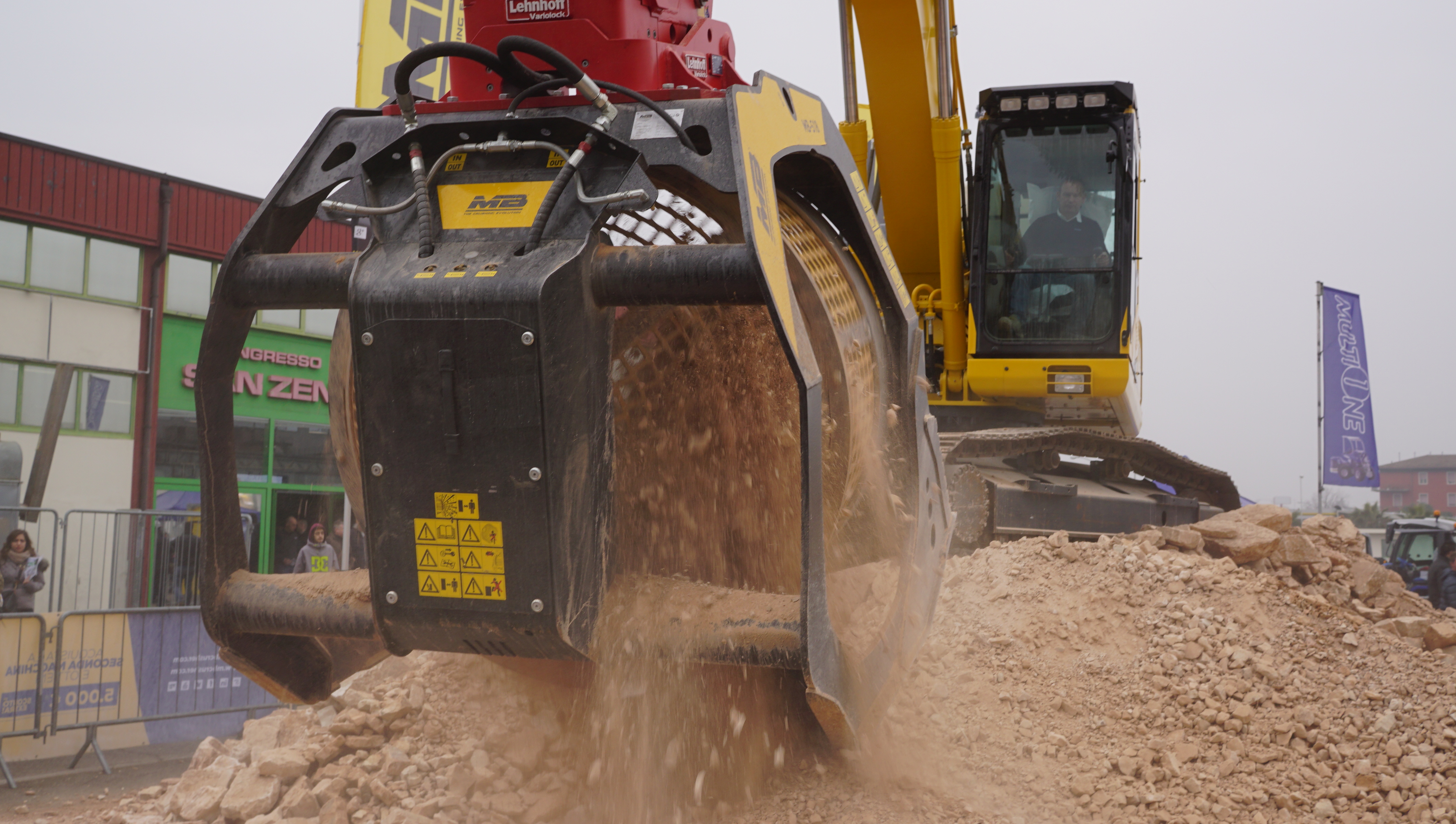

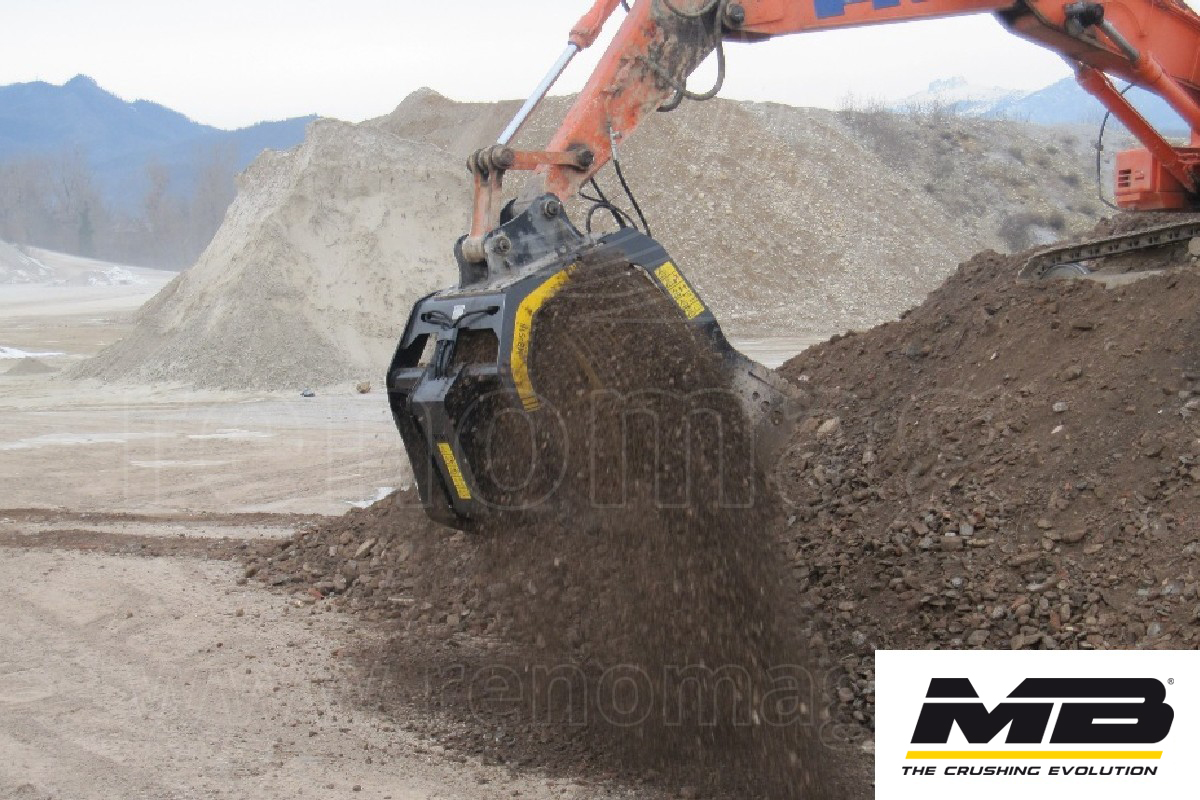

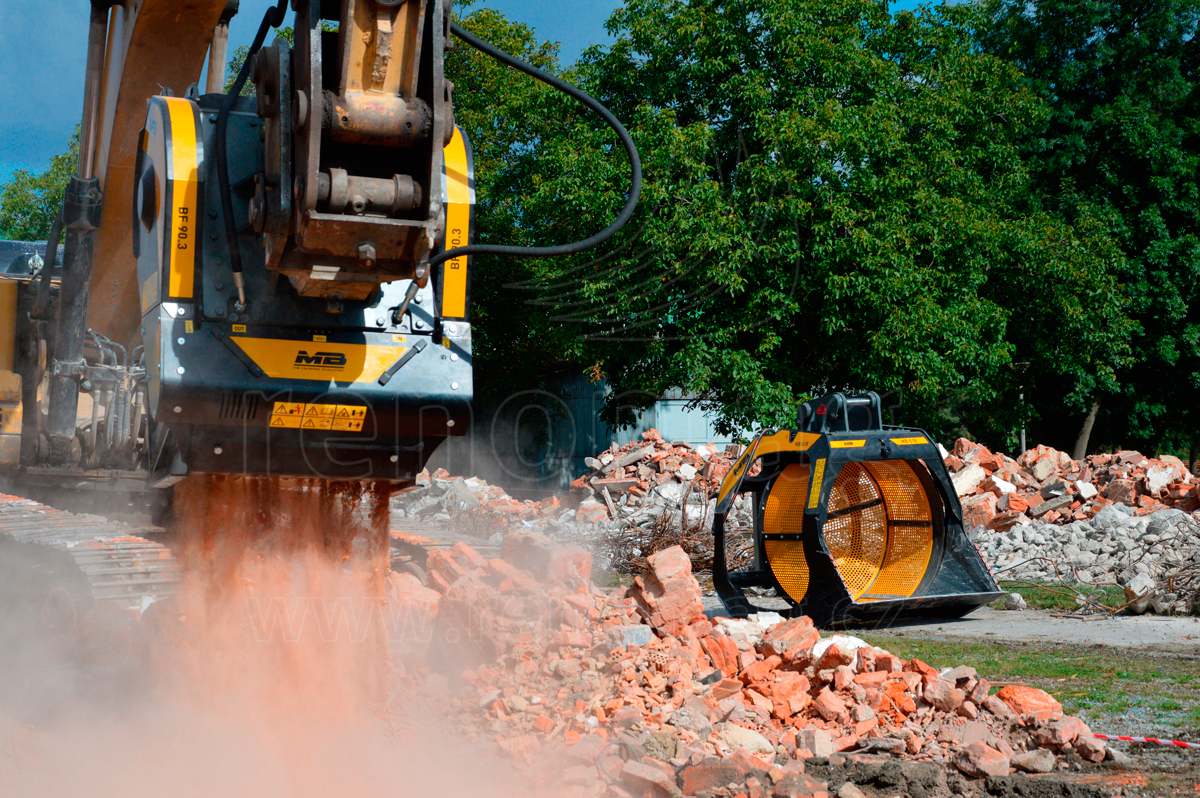

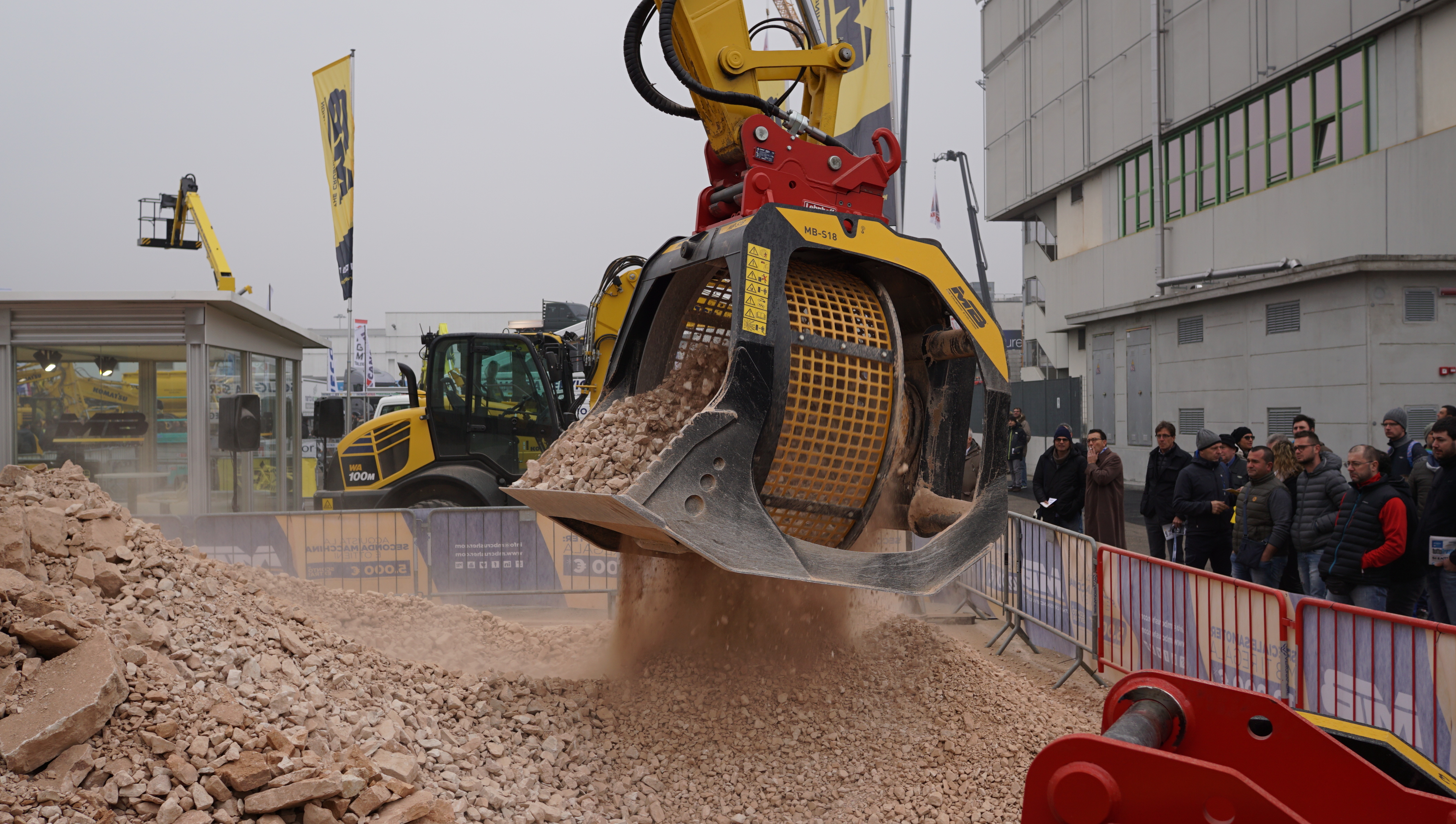

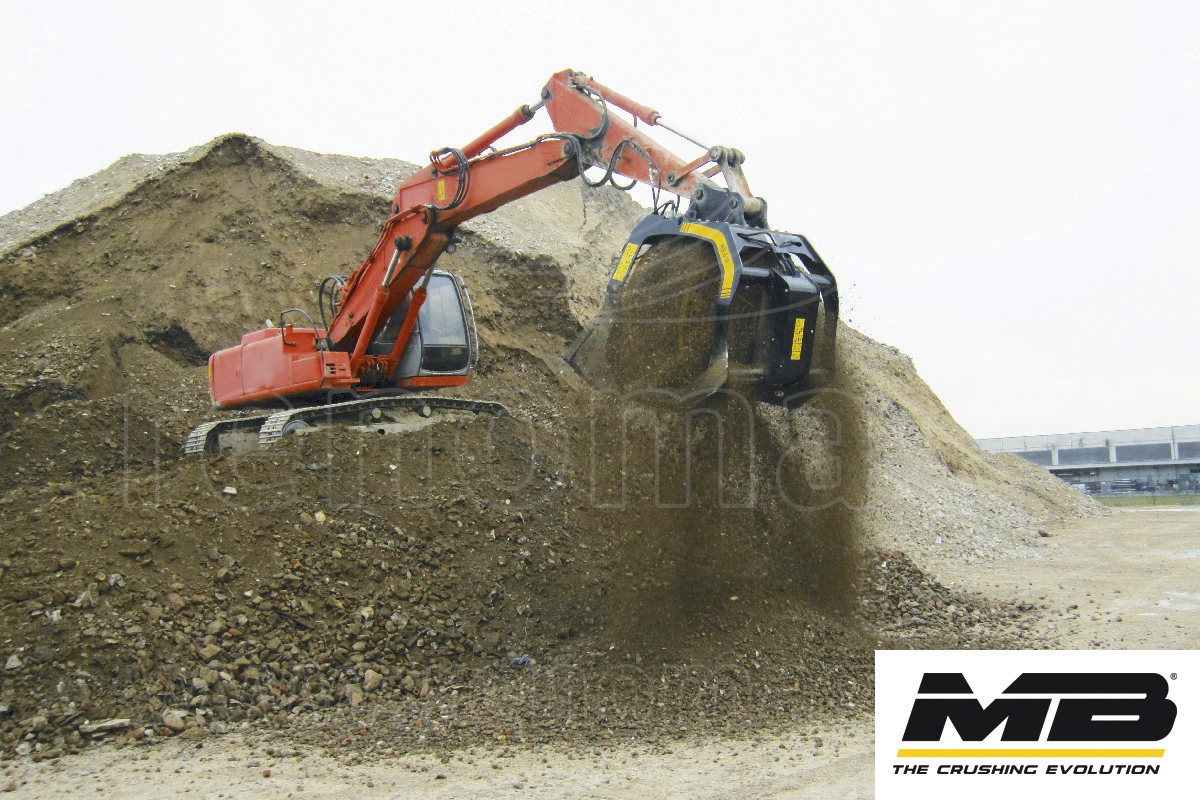

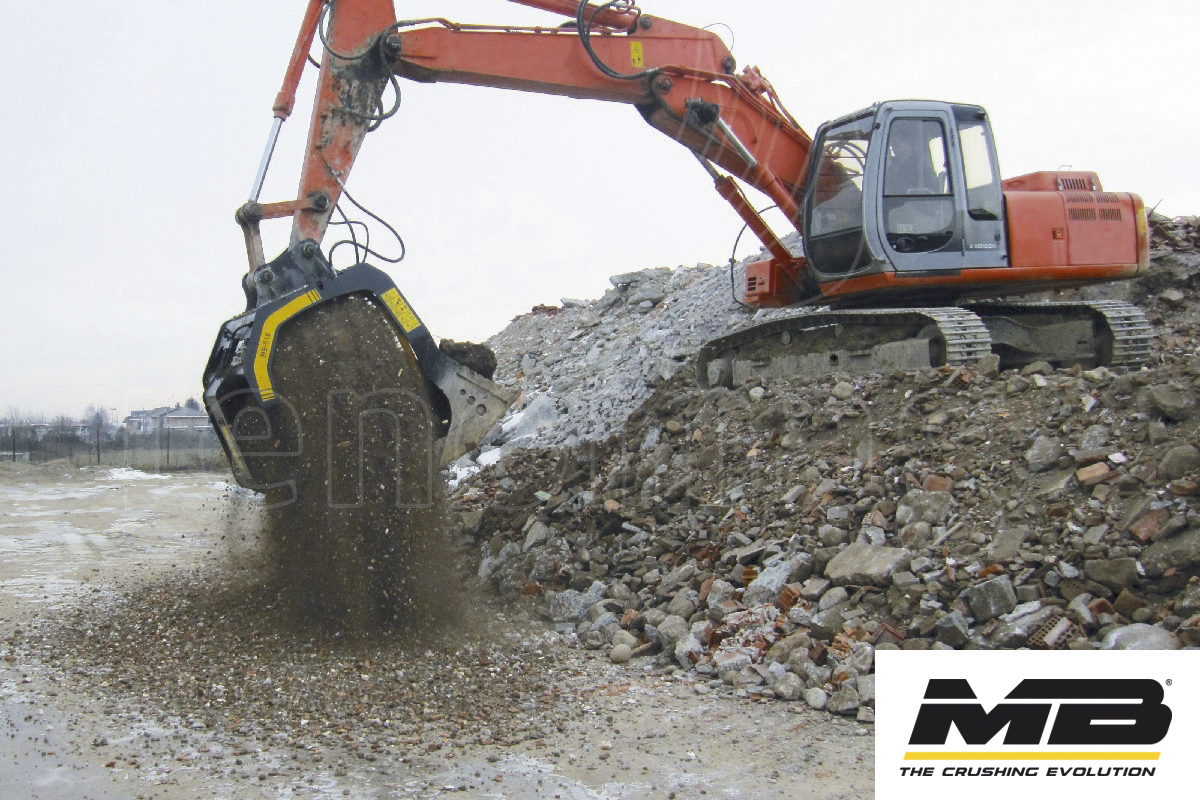

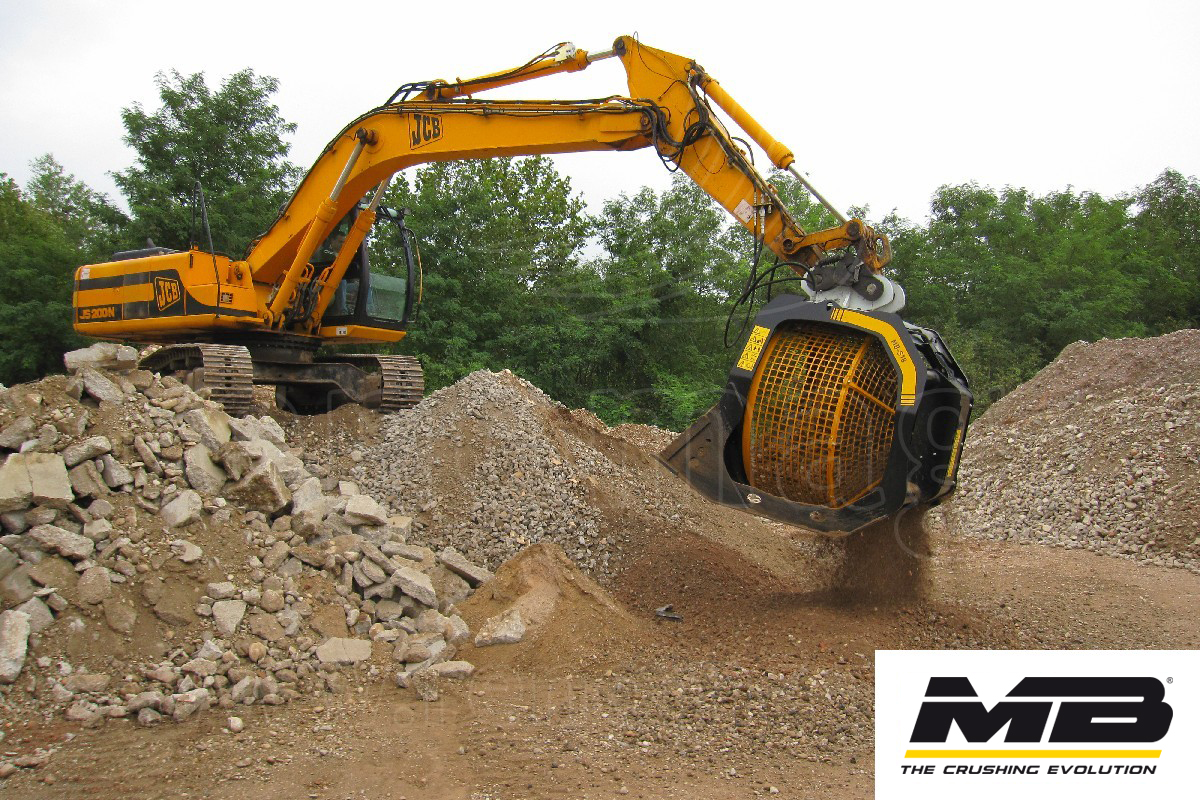

In cooperation with MB S.p.A., we bring to market the world's most comprehensive range of screening buckets for excavators and loaders alike. They are powerful, versatile and equipped with interchangeable panels allowing the output material size to be selected. MB screening buckets adapt to all equipment and requirements. MB-S screening buckets are also ideal as a complement to crushing buckets for screening material before or after crushing. Using them before crushing can save up to 60% of the time that crushing would take without prior screening, while the screened material can be immediately collected and processed as needed.
Application options:
- basic screening of waste, demolition material, material intended for backfilling excavations, and material generated by recycling stony soil
- picking pebbles out of waterways
- beach cleaning
- an indispensable tool in all other situations where small pieces need to be separated

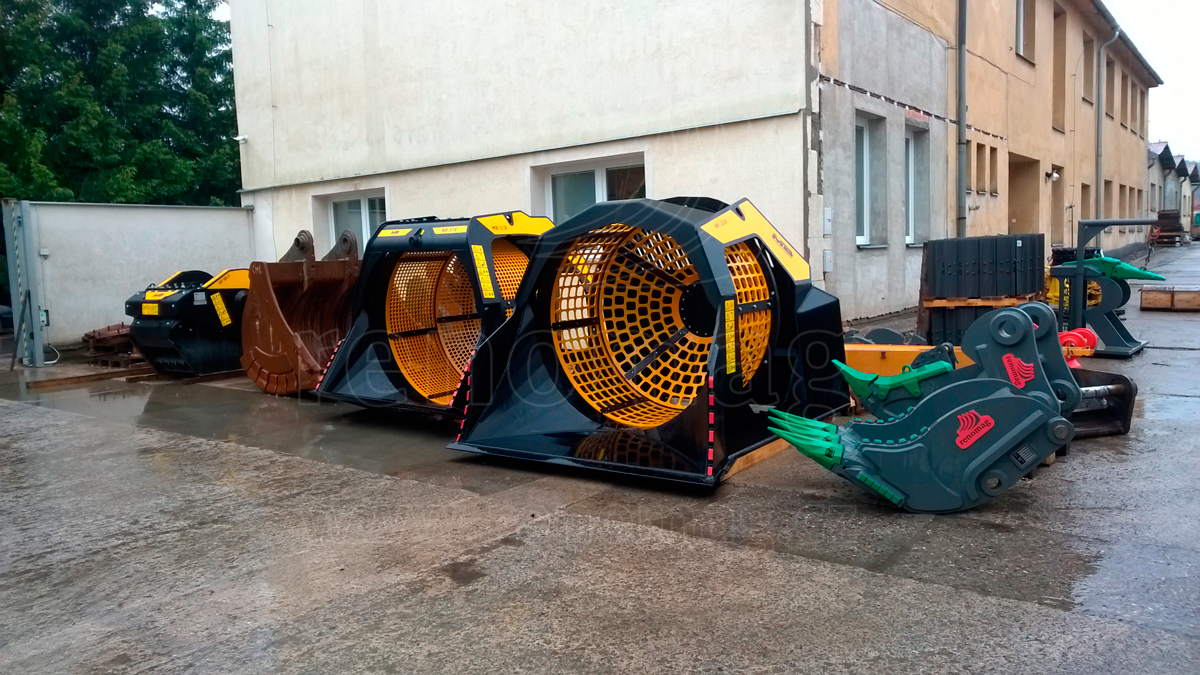

Screening buckets are available in several weight and size ranges for excavators and loaders alike.
The MB-LS screening bucket is the latest range usable on loaders weighing up to 25 tonnes. The mounting is designed for easy installation on backhoe loaders, skid-steer and wheel loaders.

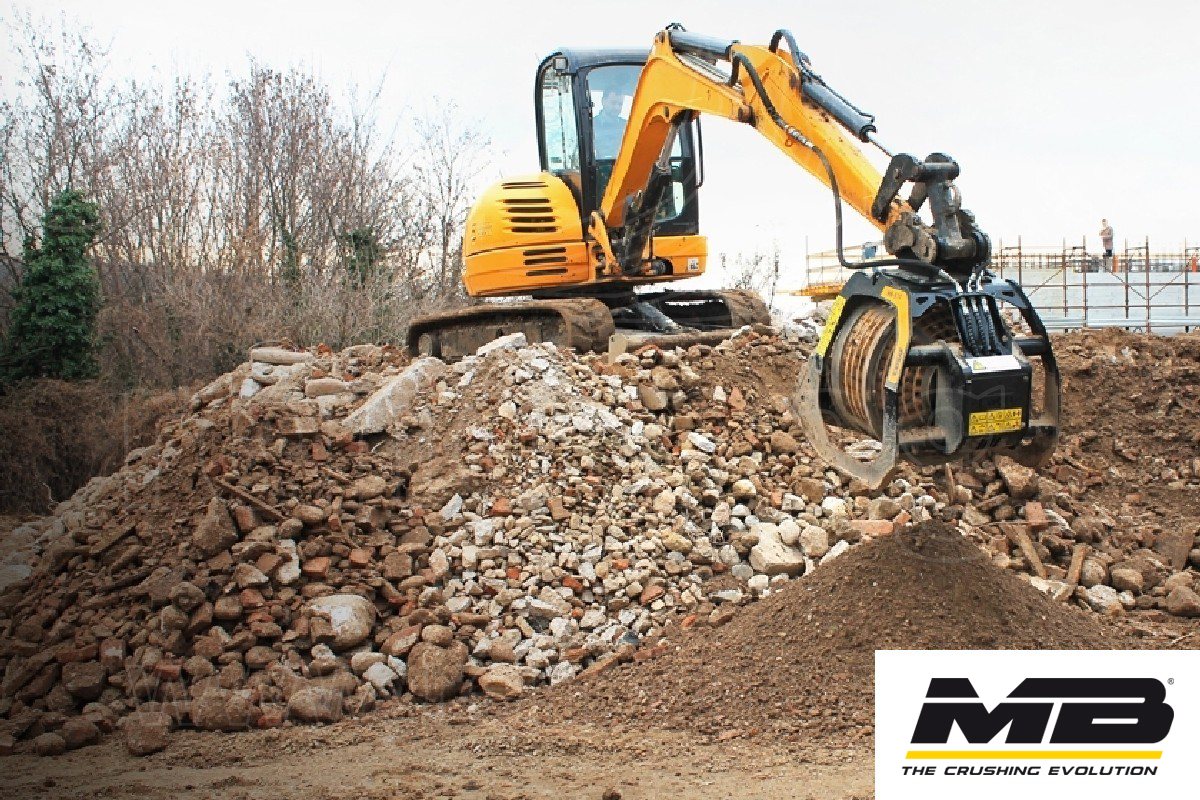

The MB-S10 screening bucket is the smallest of the range. Usable on excavators weighing from 4 to 8 tonnes. Thanks to its small size it is also suitable for gardening work!
The MB-S14 screening bucket is usable on excavators weighing from 10 to 16 tonnes. Ideal for screening material before and after crushing

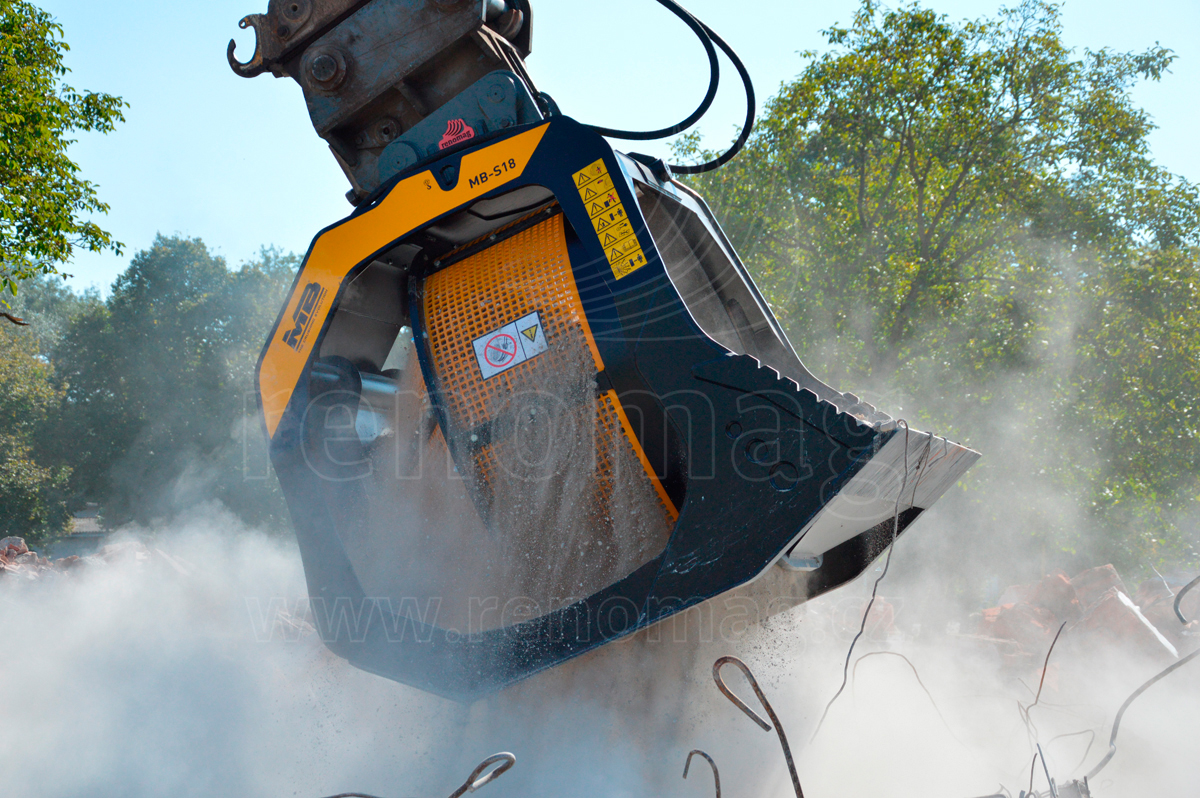

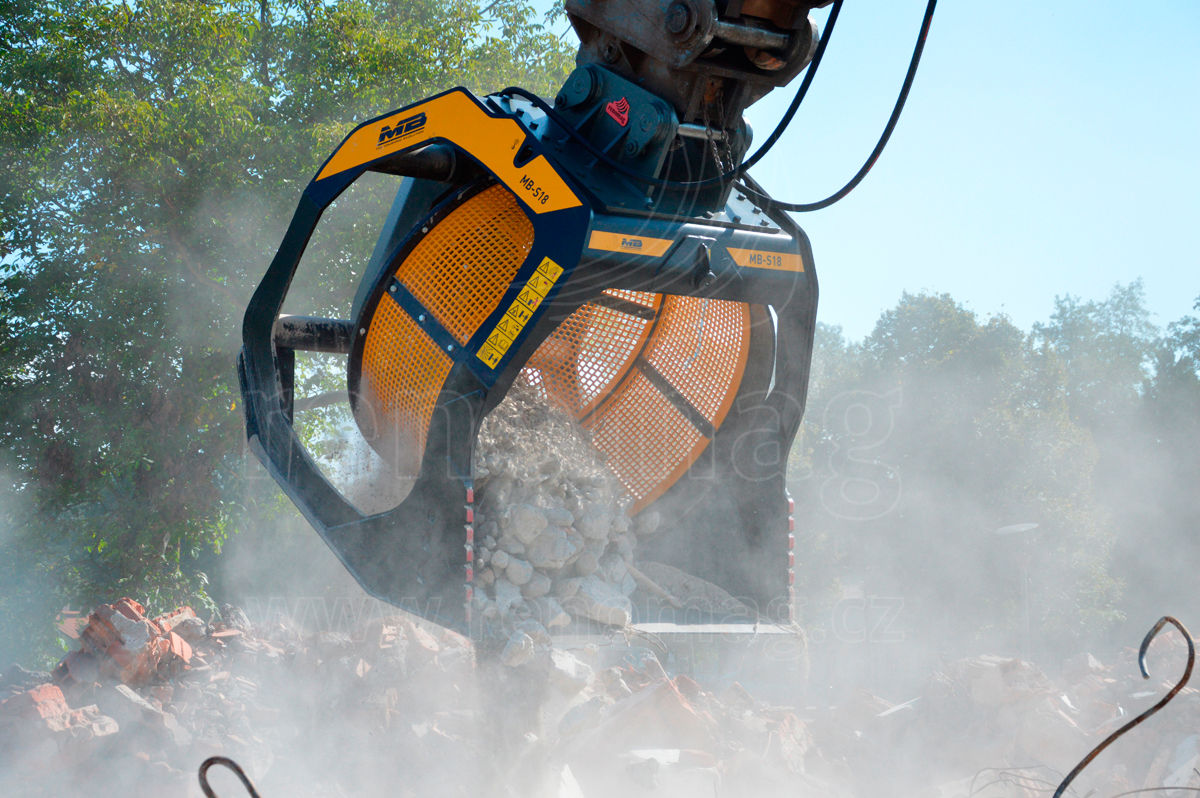

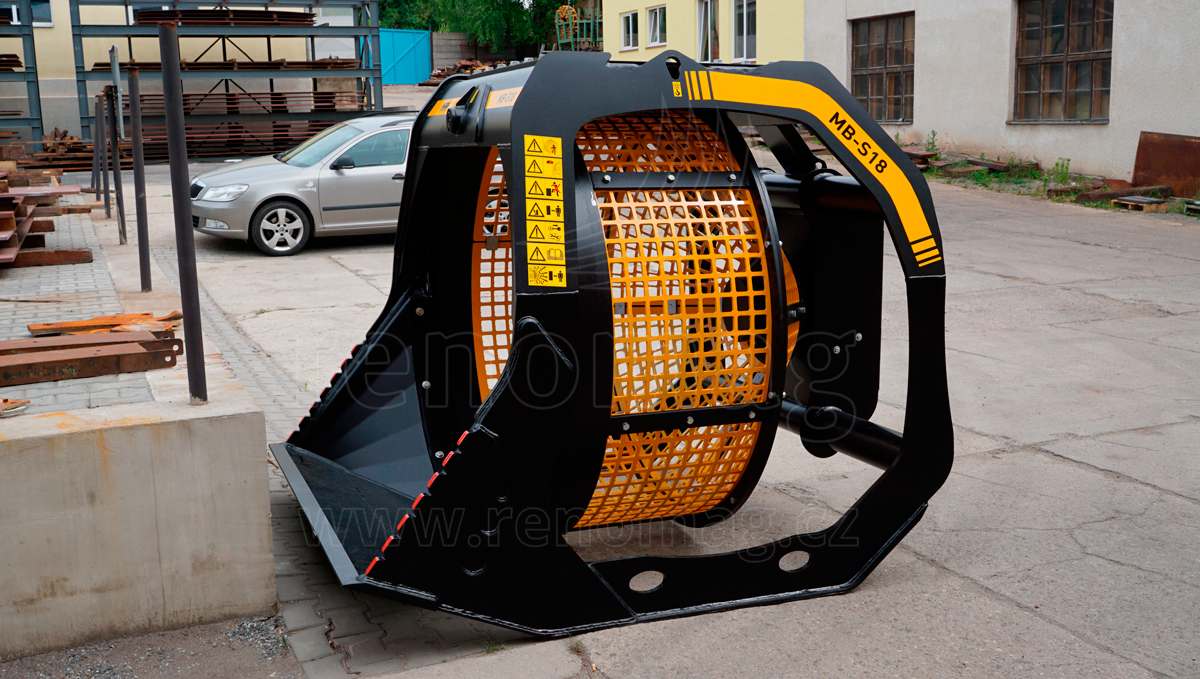

The MB-S18 screening bucket is ideal for excavators weighing from 16 to 30 tonnes. It allows screening of materials such as river pebbles, crushed stone residues, dry soil, etc.
The MB-S23 screening bucket is not only the largest of this range, but also the largest screening bucket ever manufactured in the world. It can be mounted on excavators weighing 30 tonnes and above.
| Description | unit | MB-LS140 | MB-LS170 | MB-LS220 | MB-S10 S2 |
MB-S14 S3 |
MB-S18 S3 |
MB-S23 |
|---|---|---|---|---|---|---|---|---|
| Recommended Excavator | t | - | - | ≥ 9 < 20 | ≥ 20 < 35 | ≥ 35 | ||
| Recommended Skid-Steer Loader | t | 2,6 | - | |||||
| Recommended Backhoe Loader / Loader | t | ≥ 6,5 < 11 | ≥ 12 < 25 | |||||
| Recommended Backhoe Loader / Mini Excavator |
t | * ≥ 4 < 9 | ||||||
| Weight | t | 0,45 | 1,35 | 2,8 | 0,39 | 1,1 | 2 | 3,75 |
| Load Volume |
m3 | 0,5 | 1,1 | 2,4 | 0,4 | 1,1 | 2,4 | 4,3 |
| Pressure/Back Pressure |
bar | 150/- | 150/- | 220/- | 130/- | 150/- | 200/- | 320/5 |
| Oil Flow | l/min | 50 | 60 | 120 | 40 | 60 | 120 | 160 |
