MB CRUSHER HYDRAULIC GRAPPLES ARE THE SOLUTION FOR EVERY MACHINE
MB Crusher provides a wide range of products to support competitiveness, operational independence and workload flexibility. MB Crusher attachments are designed for every situation and provide a solution for any type of work, operation or machine. From excavators weighing more than 70 tonnes down to 3.5 tonnes, from loaders to backhoe loaders, mini loaders or telescopic handlers, a suitable MB attachment is always available. Installation is quick and easy on all models.
We also provide related services for installation on construction machinery, operator training and maintenance, using our well-organised service support.
✔ Designed according to the highest technological standards
✔ Reliable, stable and completely safe material handling
✔ 360° rotation
✔ Trouble-free handling of large loads
Technical advantages of MB Crusher grapples
✔ The jaws have a wider opening span than other models on the market – they can grip and process large materials.
✔ The units are equipped with a safety valve against material drop, ensuring safety on the job site.
✔ Parts exposed to wear are made of wear-resistant Hardox® steel.
✔ Thanks to the external and centralised lubrication system, it is possible to carry out lubrication from a single point, taking just a few minutes.
Accessories for hydraulic grapples

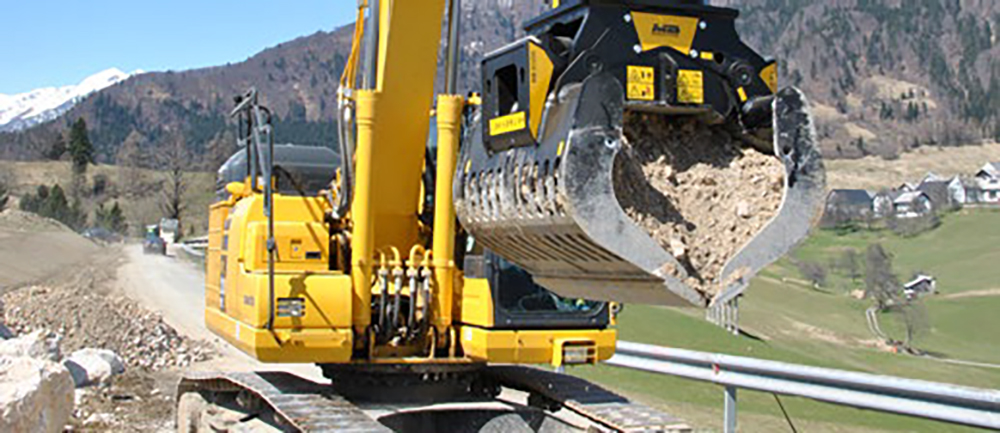

✔ The jaw set is designed for collecting and moving soil, gravel and sand.
✔ The multi-purpose blade set can handle irregularly shaped materials.
Technical specification of MB Crusher hydraulic grapples

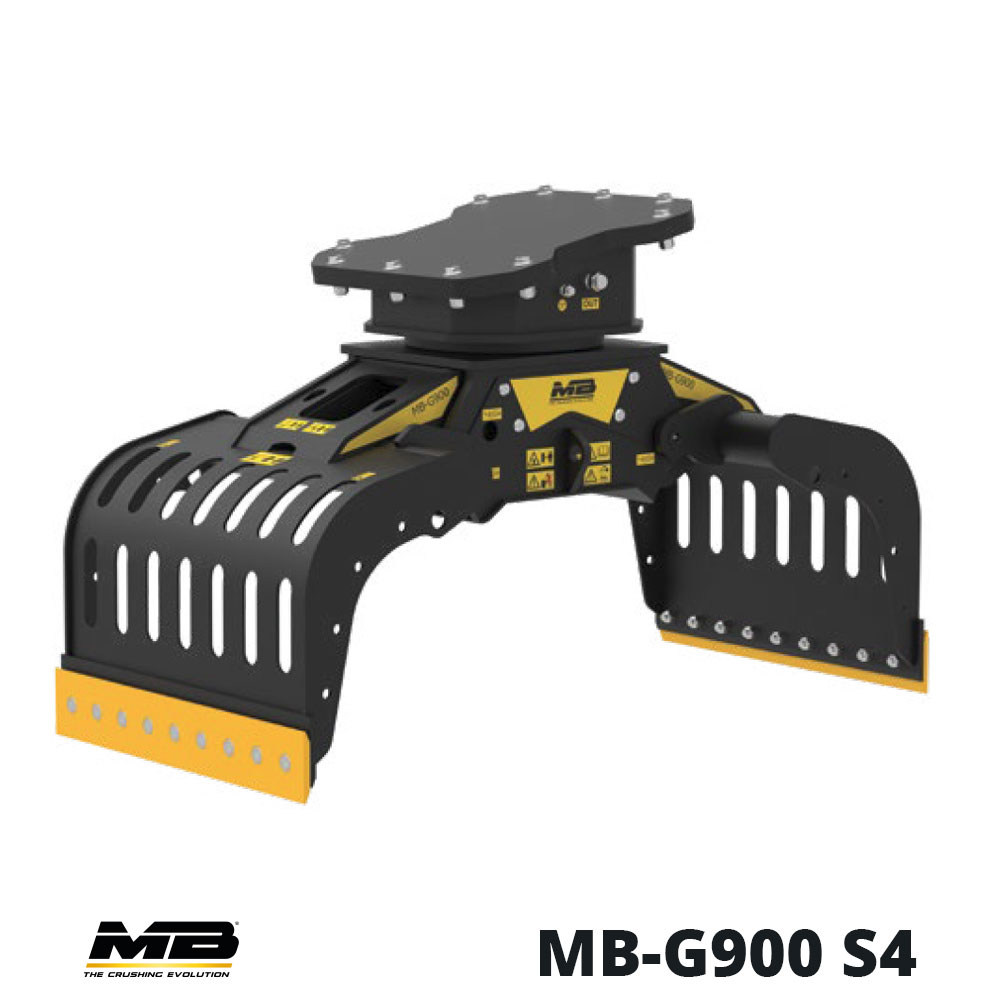

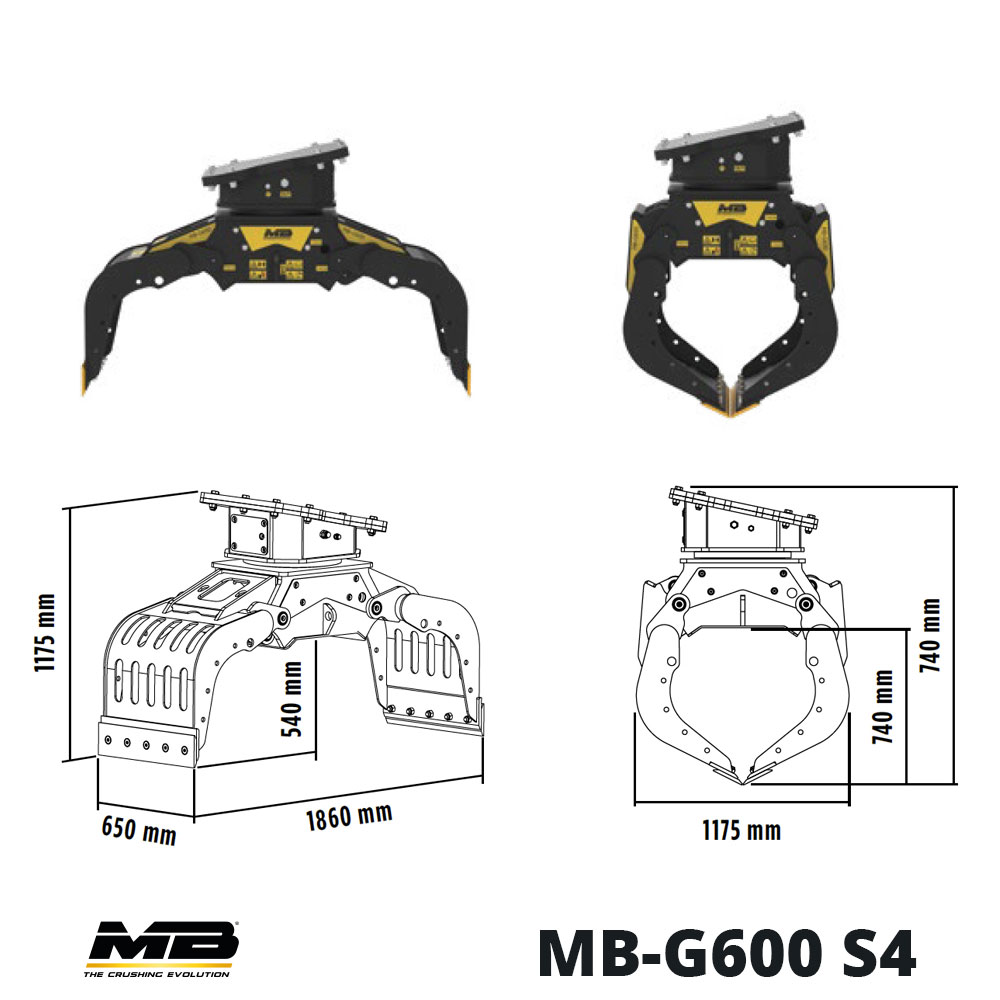

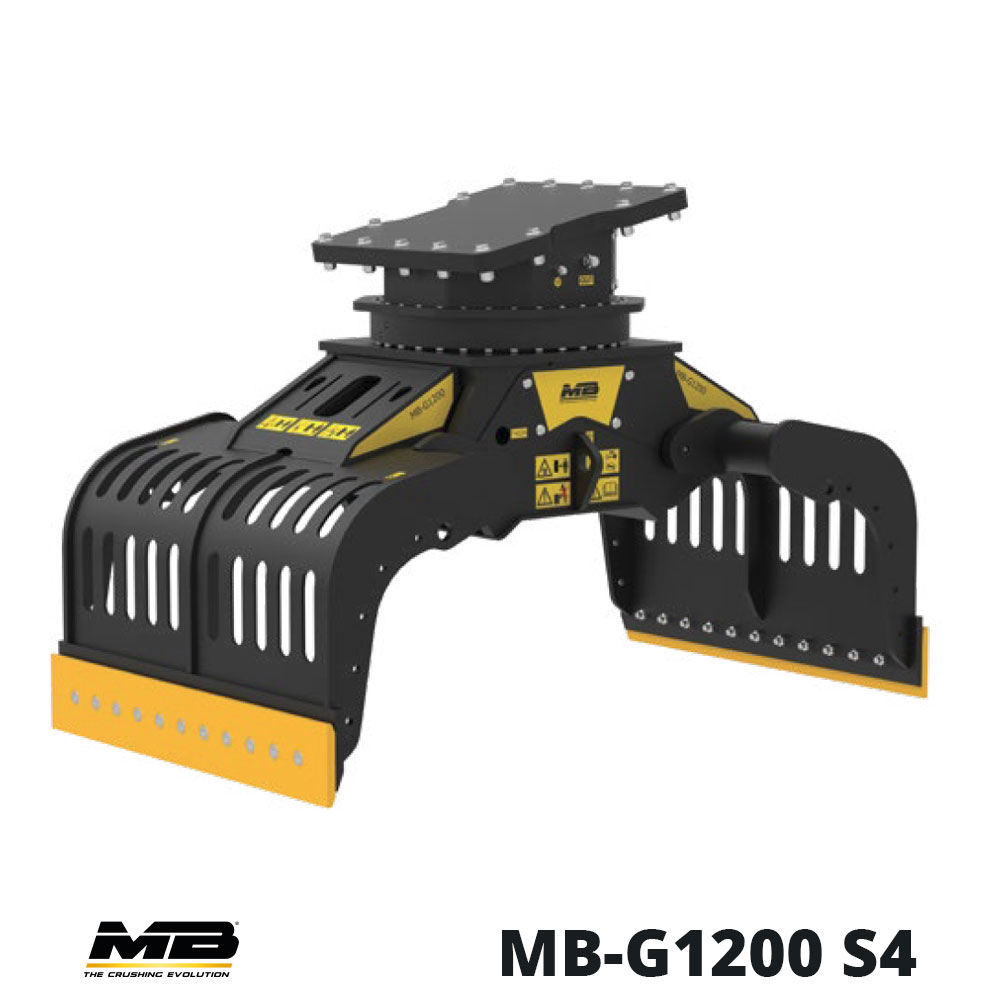

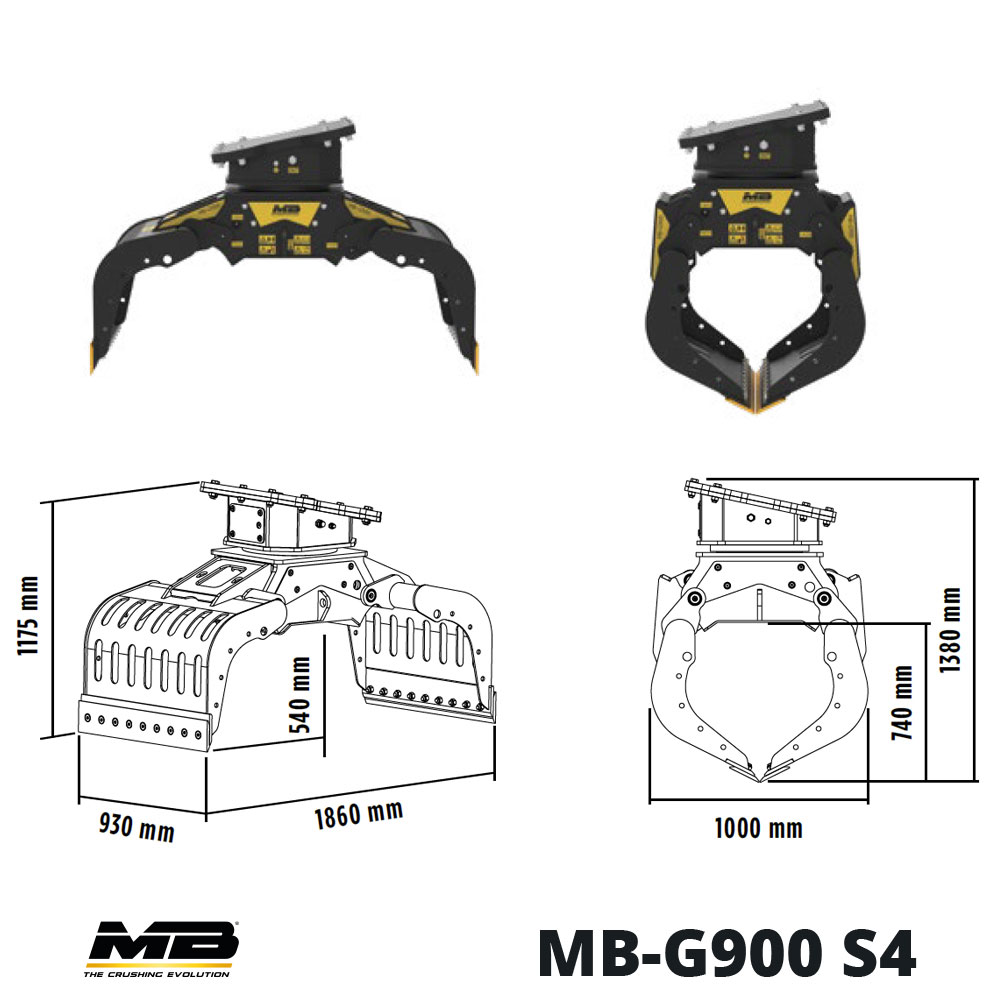

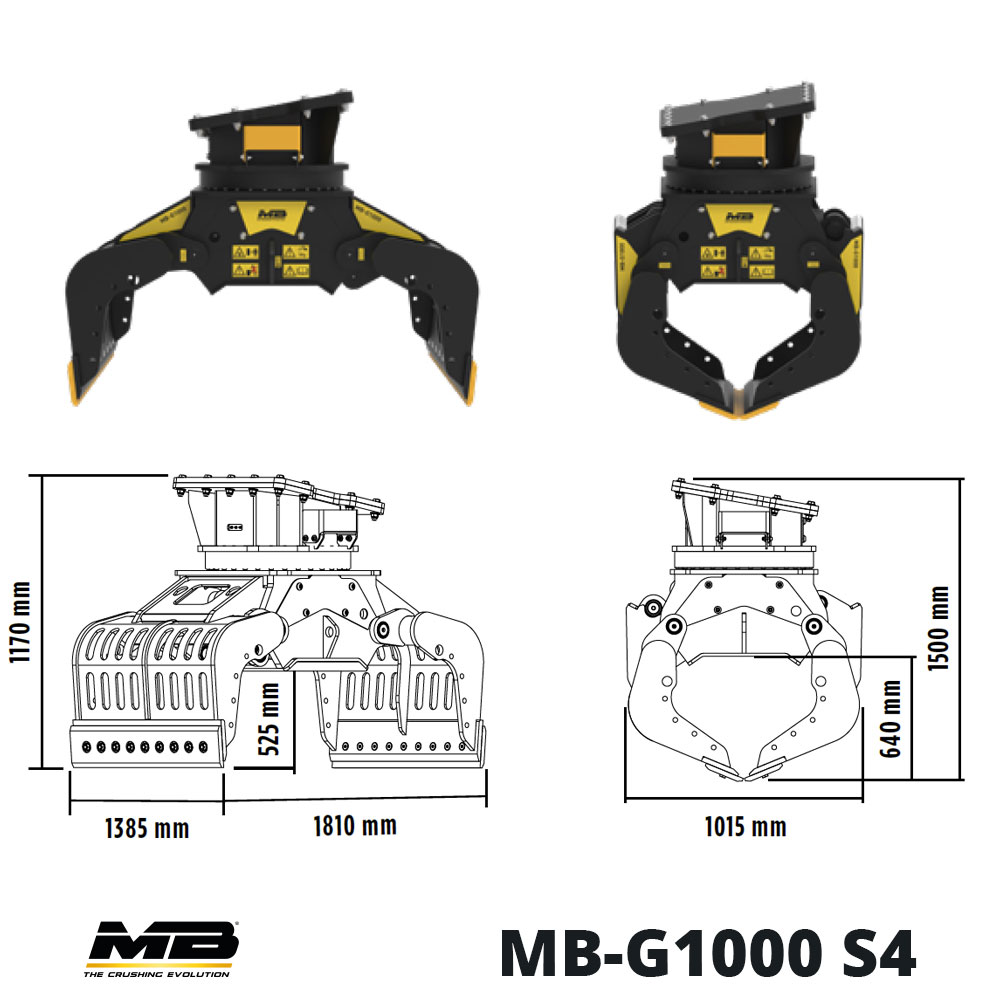

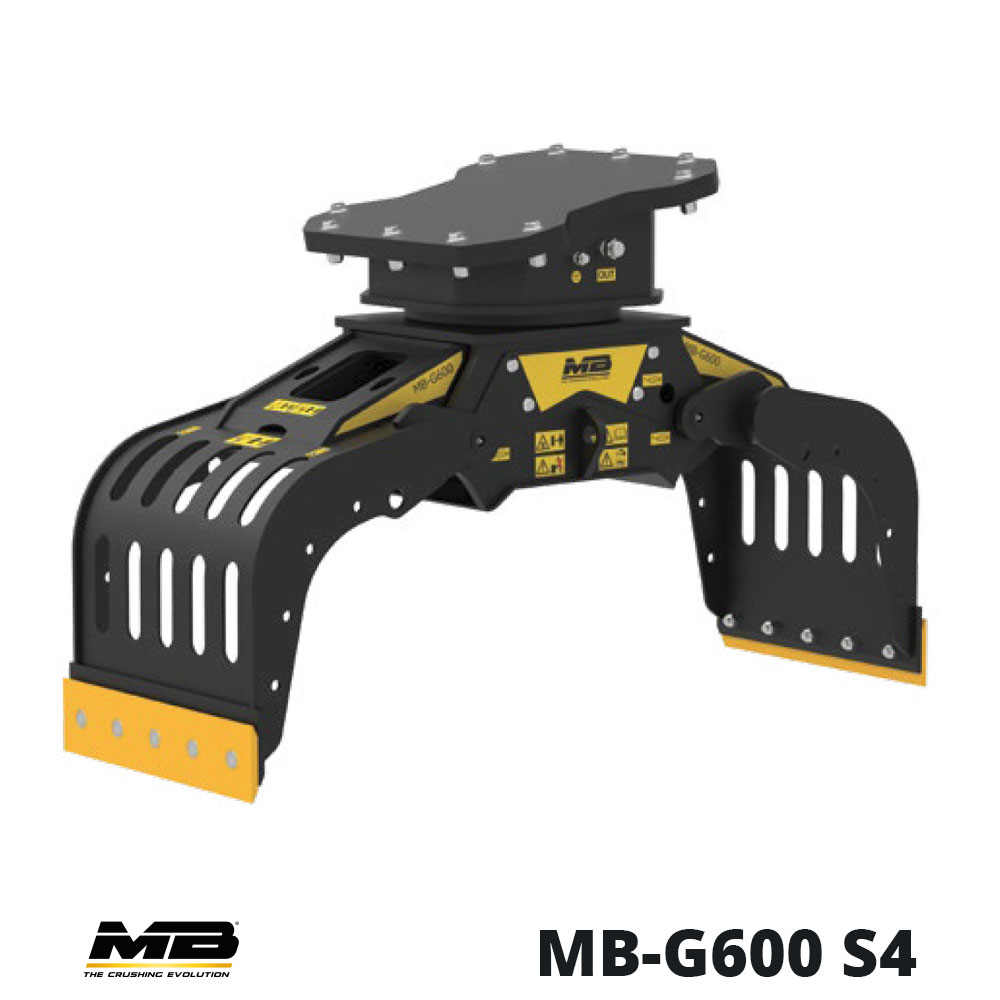

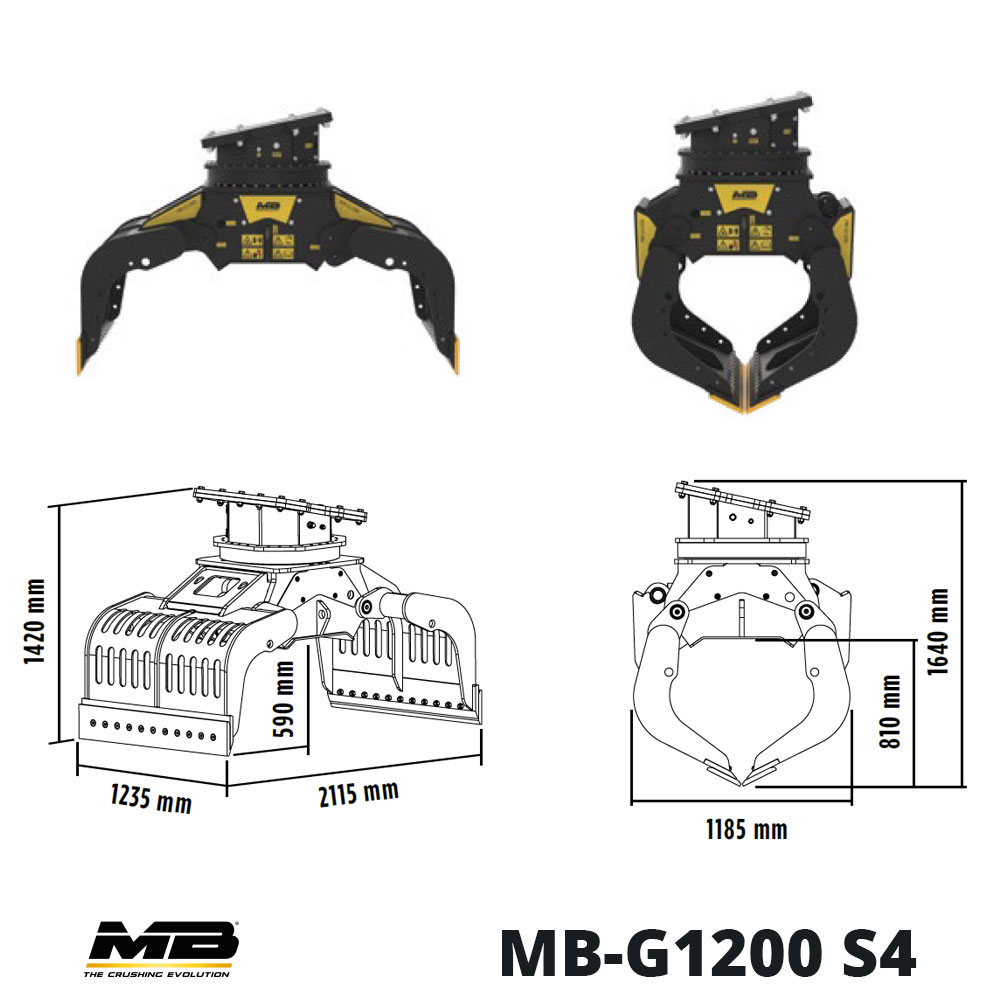

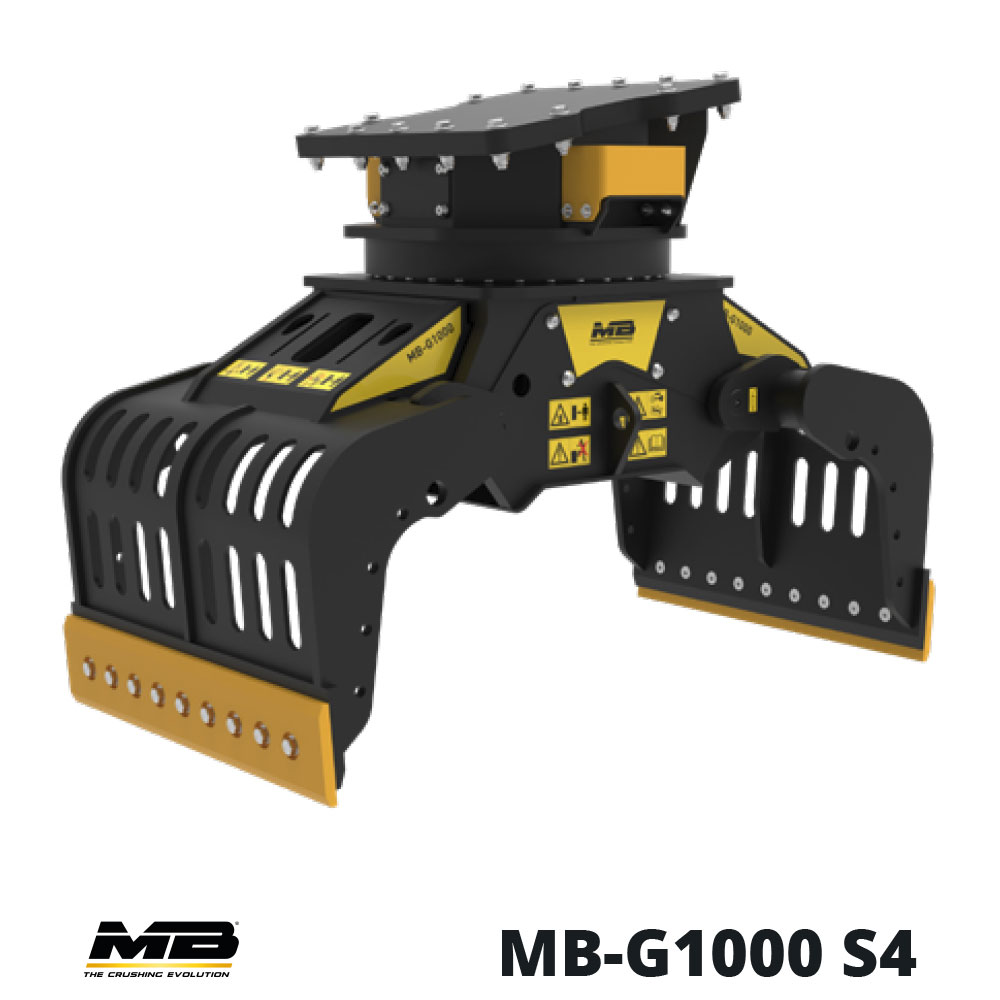

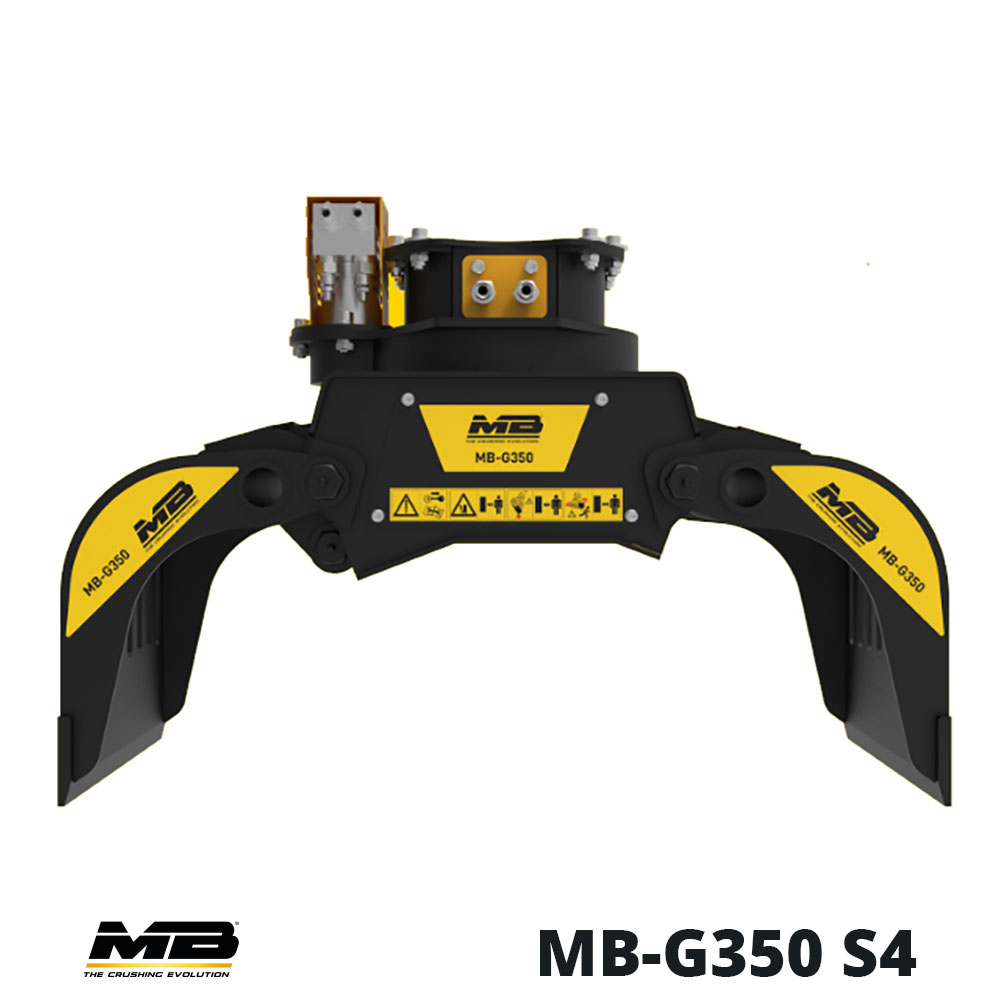

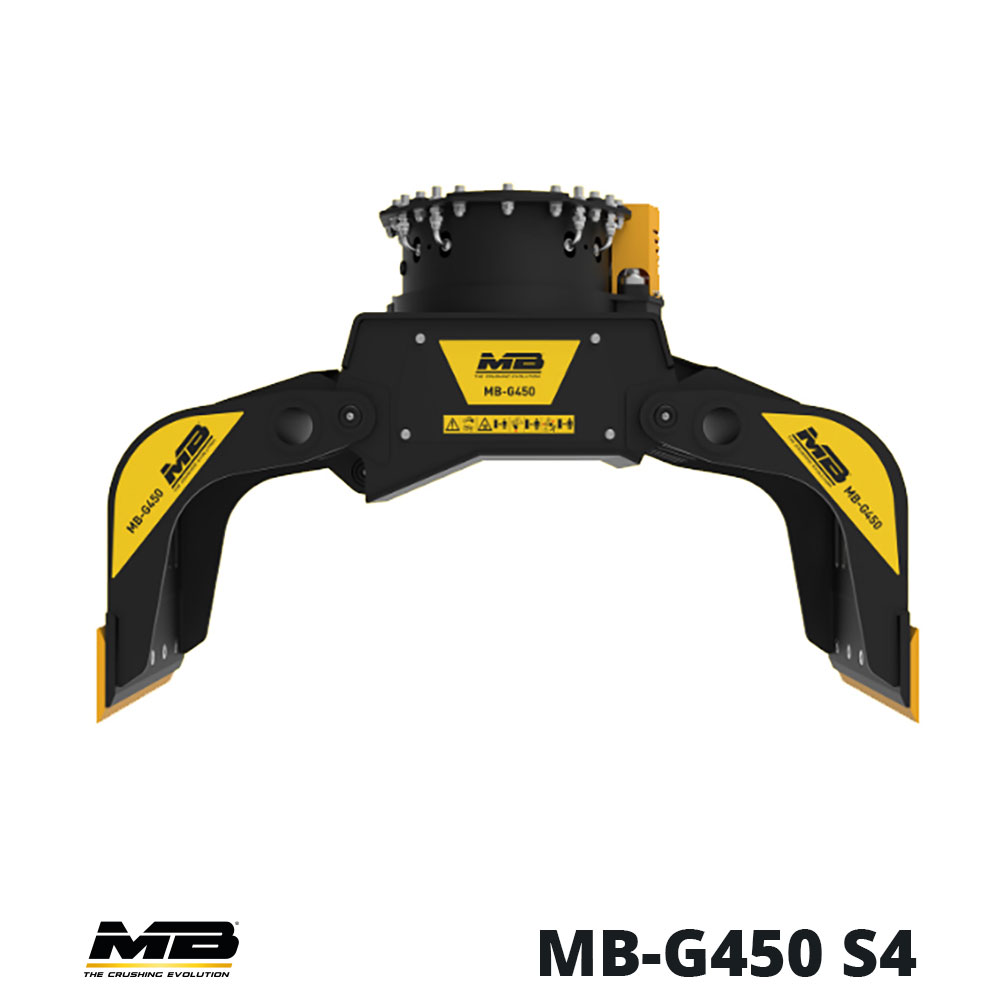

| MODEL | MB-G350 S4 | MB-G400 S4 | MB-G450 S4 | MB-G500 S4 | MB-G600 S4 | MB-G900 S4 | MB-G1000 S4 |

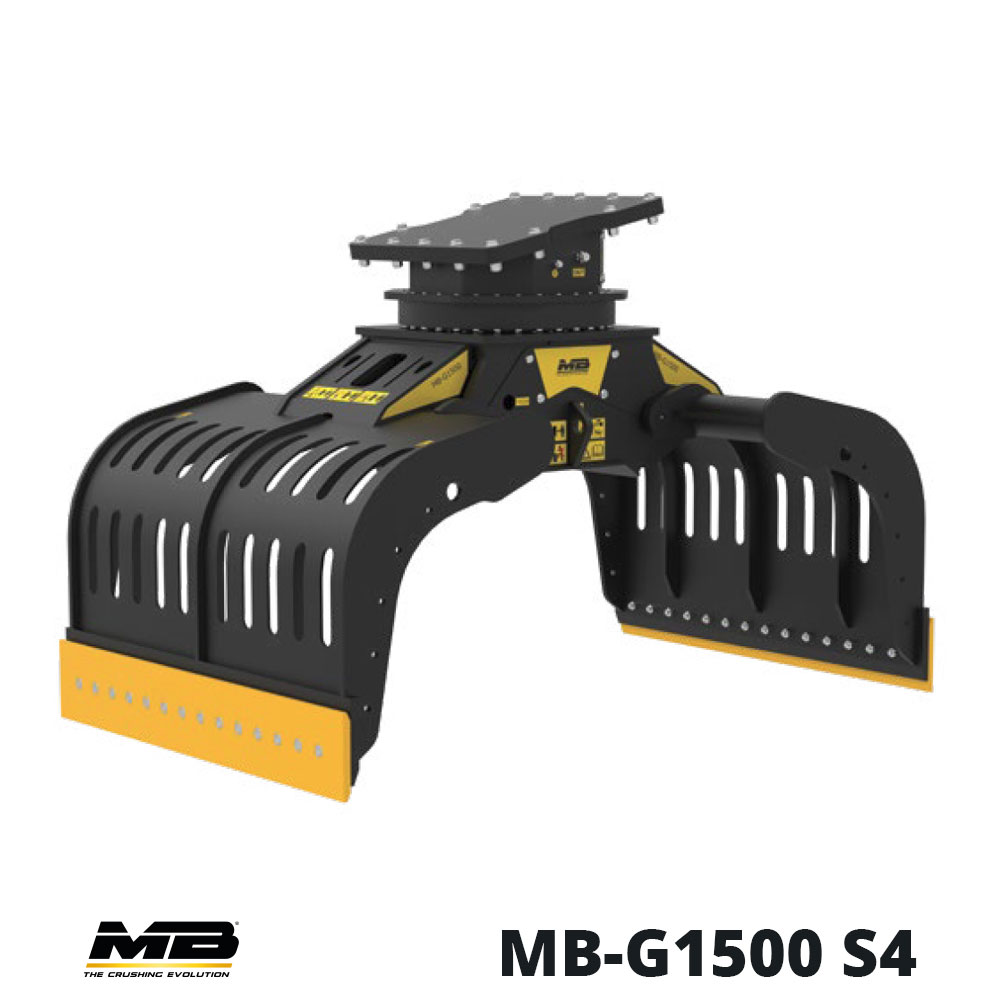

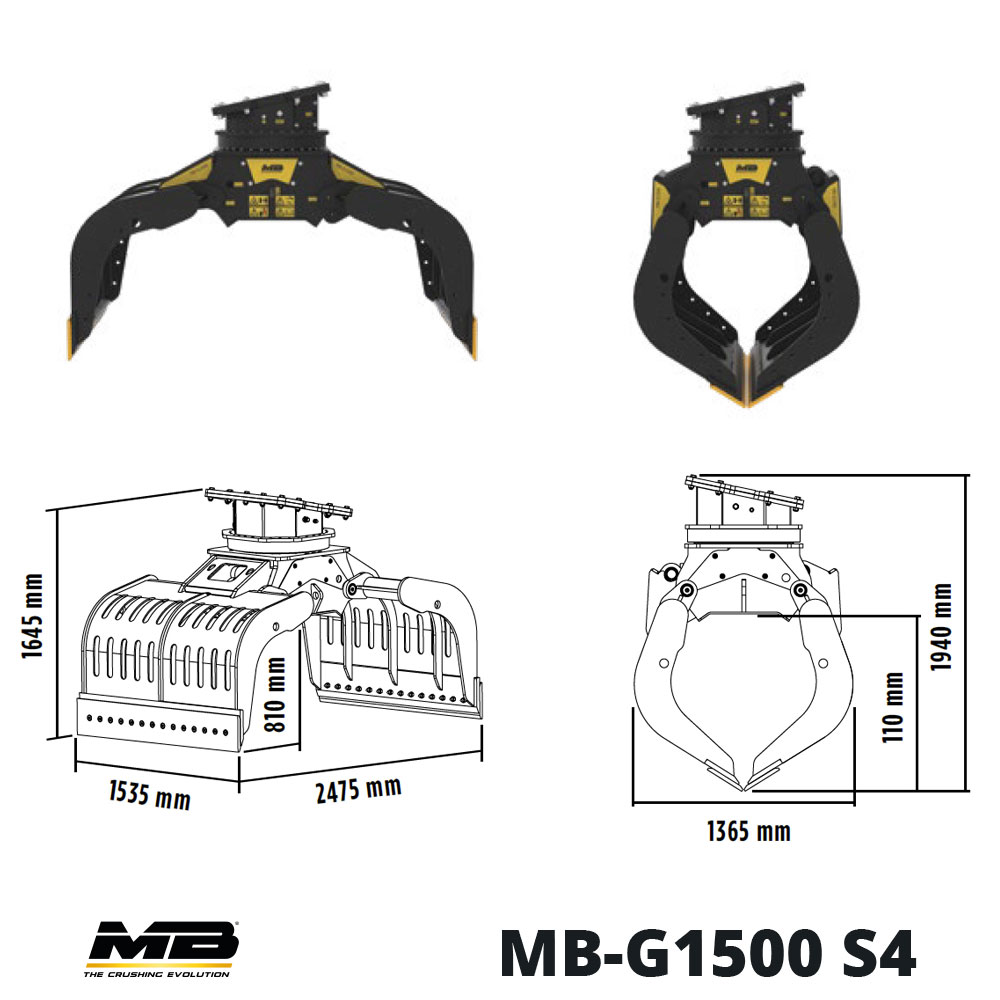

MB-G1200 S4 | MB-G1500 S4 | |
| Recommended Excavator (tonnes) |
1,0–2,6 | 2,4–4,0 | 4,6–6,0 | 5,0–8,0 | 6,0–12,0 | 12,0–18,0 | 18,0–25,0 | 18,0–25,0 | 20,0–25,0 | |
| Rotation Range (degrees) | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | |
| Pressure for Rotation (bar) | 150 | 150 | 150 | 150 | 160–180 | 160–180 | 200–250 | 220–240 | 220–240 | |
| Oil Flow for Rotation (l/min.) |
5 | 5 | 10 | 10 | 15–30 | 15–30 | 30–60 | 25–305 | 20–35 | |
| Max. Oil Pressure to Open / Close (bar) |
200 | 200 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | |
| Max. Oil Flow (Open / Close) (l/min.) |
15 | 15 | 40 | 40 | 25 | 30 | 70 | 70 | 70 | |
Our range also includes other MB Crusher products, crushing buckets and screening buckets.
